Page 1: User Manual

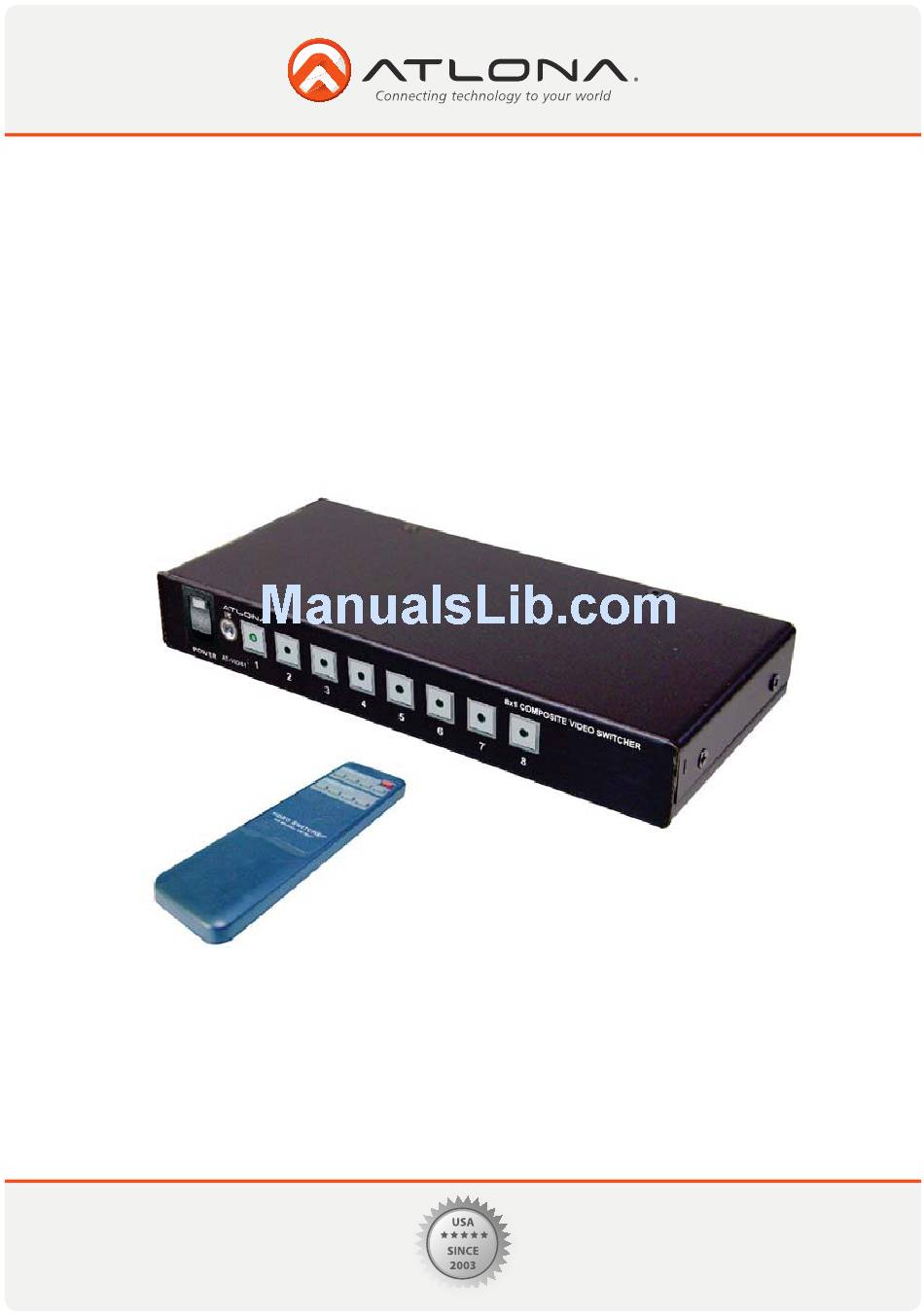

User Manual 8x1 COMPOSITE VIDEO SWITCHER AT-VID81 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Specification 3. Package Contents 4. Panel Descriptions 4.1. Front Panel 4.1. Rear Panel 5. Connection and Installation 6. Safety Information 7. Warranty 8. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Video Output, the AT-VID81 is capable of switching and sending signal from eight sources to one display at lengths up to 200ft without signal degradation. The AT-VID81 can be controlled via IR remote control or push buttons on the front panel making this unit the perfect application for switching signals between VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, Set Top Boxes, etc. -
Page 4: Package Contents
PACKAGE CONTENTS 1. AT-VID81 Composite Video Switch x 1 2. Instruction Manual x 1 3. RCA to RCA video cable 6ft (2m) x 1 4. Universal AC Adaptor : 12V DC 5. IR Remote Control x 1 PANEL DESCRIPTIONS 1. Front Panel 1. -
Page 5: Connection And Installation
2. Connect Desired sources to the Composite Video Inputs (RCA). 3. Connect Composite Output (RCA) to desired Display 4. Plug in 12V DC power supply. 5. Power on the monitor. 6. Power on the sources. 7. Power on AT-VID81 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT-VID81. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
