- Page 1 2X1 VGA W/ STEREO AUDIO (AUTOMATIC) SWITCHER ATL-ATAPC21A User Manual B T X T e c h n o l o g i e s I n c . | www. b t x . c o m | T e l : 8 0 0 . 6 6 6 . 0 9 9 6 | i n f o @b t x . c o m...
- Page 2 9. Warranty 10. Atlona Product Registration B T X T e c h n o l o g i e s I n c . | www. b t x . c o m | T e l : 8 0 0 . 6 6 6 . 0 9 9 6 | i n f o @b t x . c o m...

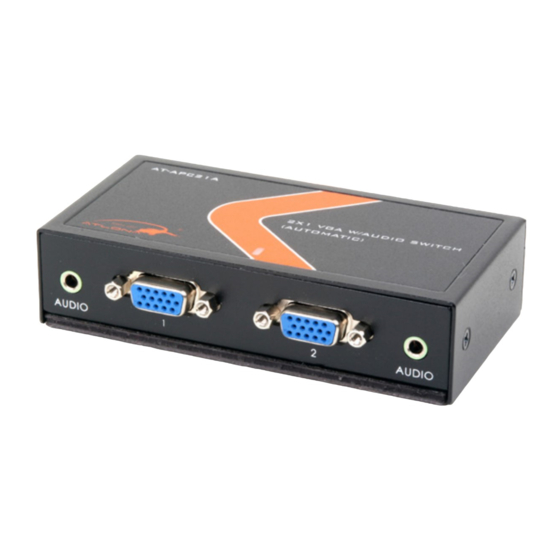

- Page 3 INTRODUCTION Atlona Technologies’ AT-APC21A is an automatic VGA Switcher with 2 inputs to 1 output with Stereo Audio. This unit features multiple switching capabilities including automatic selection of the active channel to elimi- nate the need of manual control. To switch over to another channel, simply turn on the other device or use external control button.
- Page 4 SPECIFICATIONS Model Name 2-Port VGA Audio Switch VGA Cable (Suggested) UL 2919 RGB 3+ 4VGA Cables Channel Select Method Auto Detection Connector Input Two Sets of HDB-15 (Female) & 3.5 mm Jack Output One Set of HDB-15 (Female) & 3.5 mm Jack Signal Type VGA, XGA, SVGA, UXGA, WUXGA, Multi-sync, TFT-LCD Monitor Video Bandwidth...
- Page 5 2. Rear Panel 1. Channel Display Status: LED will Light up Blue for Channel 1 and Green for Channel 2 2. Channel 1 Audio Input 3. Channel 1 VGA Input 4. Channel 2 VGA Input 5. Channel 2 Audio Input CONNECTION AND INSTALLATION Speakers VGA Monitor...
- Page 6 It may also cause damage to your AT- APC21A. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly.
- Page 7 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 8 Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
