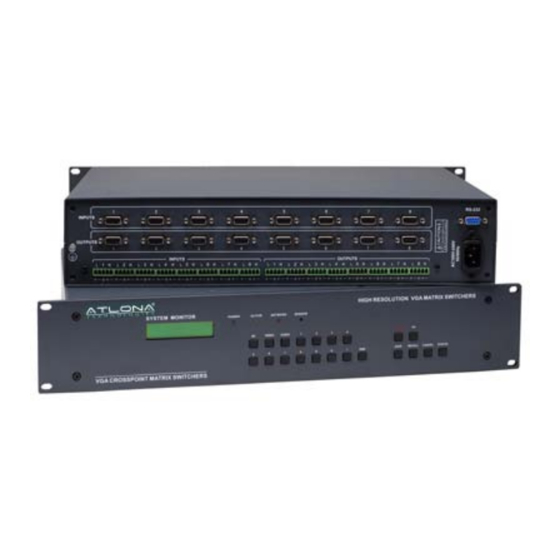

VGA SWITCHER USER GUIDE
VGA SWITCHERS: AT-VGA0801 TO AT-VGA9601
VGA SWITCEHRS W/AUDIO: AT-VGA802 TO AT-VGA1608
1
Atlona Technologies
www.atlona.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-VGA0801 TO AT-VGA9601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlona AT-VGA0801 TO AT-VGA9601

  • Page 1 VGA SWITCHER USER GUIDE VGA SWITCHERS: AT-VGA0801 TO AT-VGA9601 VGA SWITCEHRS W/AUDIO: AT-VGA802 TO AT-VGA1608 Atlona Technologies www.atlona.com...
  • Page 2: Table Of Contents

    5.3 Remote Control Operation..............15 6.0 Operation of Application Software...........15 6.1 Keyboard Tab...................17 6.2 Auto Tab...................17 6.3 Custom Code Tab................18 6.4 Code Group Tab................19 6.5 Send / Recieve Code List Tab............20 7.0 RS-232 Operation................20 8.0 Technical Specifications..............22 9.0 Troubleshooting................24 Atlona Technologies www.atlona.com...
  • Page 3: Safety Operation Guide

    This manual is only an instruction for operators, not for any maintenance usage. Any changes of functions and parameters since then will be informed sepa- rately. This manual is copyright Atlona Technologies. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of Atlona Technologies.
  • Page 4: Introduction

    Packaging Includes • VGA Matrix Switcher • RS-232 Communication Cord • Power Supply Cord • CD with Application SWITCHER 2.0 • User Manual and Quality Guarantee • Remote Control Atlona Technologies www.atlona.com...
  • Page 5 Atlona Technologies www.atlona.com...
  • Page 6 Atlona Technologies www.atlona.com...
  • Page 7 Atlona Technologies www.atlona.com...
  • Page 8: Connecting The Swticher

    The switcher can also be controlled through COM1 or COM2 ports on the computer, To control the switch- er, users may use the application SWITCHER 2.0 in the supplied CD or develop their own control software with the protocol and control codes. Atlona Technologies www.atlona.com...
  • Page 9: Connecting With Inputs And Output Terminals

    For the low frequency extent of the audio signal, it would be easily interfered under long distance transmission. Therefore as an anti-interference connection, it is mostly used in Audio connection of special high end devices. Atlona Technologies www.atlona.com...
  • Page 10: Stacking The Switcher

    When stacking the vga matrix switchers the slave matrix inputs 1-32 become inputs 33-64, that also goes for the 3rd matrix slave making inputs 1-32 to 65-96. If all 3 matrix swtichers are stacked it would make the unit 96x1. Atlona Technologies www.atlona.com...
  • Page 11: Operation Controls For Vga0404-A

    Operation: Press buttons in the following order “1”, “CLOSE”. “LOCK” Lock button: Press down for 5 seconds to lock the front controls. Note: Press it for 5 seconds again to unlock the control panel. “1,2…8” Input Keypads: Keys to select input channels. Atlona Technologies www.atlona.com...
  • Page 12: Operation Controls For Vga3201,Vga0808-A, Vga1608-A

    All button: To transfer an input channel to all output channels or switch off all the output VGA Matrix Switcher System channels Example1: To transfer video and audio signals from input channel No.7 to all output channels Operation: Press buttons in the following order “7”, “ALL” Atlona Technologies www.atlona.com...
  • Page 13 Example2: To Acquire the status of all the output channels one by one Operation: Press only the button “STATUS” With the front control panel, the switcher could be control directly and rapidly by pressing the button under below format. “Input Channel”+“Switching Mode”+“Output Channel 1”+“/”+“Output Channel 2”+“END”+“ENTER” Atlona Technologies www.atlona.com...
  • Page 14 Display feedback on LCD: The video signal of output channel No.4 is transferred from the input channel No.3 and the audio signal is from the input channel No.2 Atlona Technologies www.atlona.com...
  • Page 15: Remote Control Operation

    Switcher 2.0 is a switcher control application compatible with switchers with different inputs and out- puts. Requirments to run the software Operating System: Window98/2000/NT/XP Memory: At least 32M Space in hard disk: At least 10M CD-ROM COM Port Atlona Technologies www.atlona.com...
  • Page 16 IP address of the swticher) “Set Password”: Set the password for the control panel on the Matrix (The password must be an 8 digit number) “Unlock Keyboard”: Unlock the keyboard of the control panel on the Matrix. Atlona Technologies www.atlona.com...
  • Page 17: Keyboard Tab

    Transfer the signals from input channel No.2 to output channel No.1-32; Transfer the signals from the input channel No.64 to the output channel No.1-32; This switching test will perform this way one by one every second until the test is over. Atlona Technologies www.atlona.com...
  • Page 18: Custom Code Tab

    No.7, and the audio signals from the input channel No.2 to the output channel No.4, just perform the following steps below. 1. Select the “ASCII” as the command codes format; 2. Input the command codes “1B7.2A4.” at the blank of Codes; 3. Click the button “Send” to perform the commands. Atlona Technologies www.atlona.com...
  • Page 19: Code Group Tab

    Execute: Executse a selected preset command or a selected group of preset commands Clear: Clears the feedback window Add Code ltem: To add another new group of preset commands Edit: To edit the User’s name (User), Delete: Deletes the selected group. Atlona Technologies www.atlona.com...
  • Page 20: Send / Recieve Code List Tab

    Clear: Clears either of the two lists 7.0 RS-232 Operation With the application “Switcher 2.00” one is able to control and operate the RGB Matrix remotely Communication protocol: Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Atlona Technologies www.atlona.com...
  • Page 21 [Y] ranges from 0 to 9. Ex. Preset 3 = “Save3.” Recall[Y]. Recall the preset command [Y]. Clear[Y]. Clear the preset command [Y]. [X]*[X]! Transfer both video and audio signals from input channel [x] to output channel [x]. Atlona Technologies www.atlona.com...
  • Page 22: Technical Specifications

    30 Hz ~ 170 Hz cy Response Max Error in DC 15mV Offset Output Video Connector Female 15-pin HD Maximum/Mini- 2.0V p-p mum Level Impedance 75 Ω Echo Loss <-40dB@5MHz Max compensa- ±5mV tion in Dc offset Atlona Technologies www.atlona.com...
  • Page 23 RS-232, 9-pin FD connector Port Baud Rate and Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Protocol Serial Control 2 = TX, 3 = RX, 5 = GND Poling Protocol Control Switch 2.0 Application Atlona Technologies www.atlona.com...
  • Page 24: Troubleshooting

    The swticher cannot be controlled by front panel The unit may be broken, contact dealer for repair. keys, RS-232 port or remote control ATLONA 2151 O’toole Ave, Ste D San Jose CA 95131 Toll Free: 1-877-536-3976 International: 408-962-0515 FAX: 408-743-5622 Website: www.atlona.com E-MAIL: info@atlona.com www.atlona.com...
