Quick Jumper Settings - Leadtek WinFast 6200MA User Manual

Leadtek Research Inc.
Jumper
J2
JP1
Connector
JP2
IR1
CPUFAN
WOL1
J1
USB1
J3
J4
SYSFAN
J5
J6
IDE 1
IDE 2
PW1
FDD1
COM2

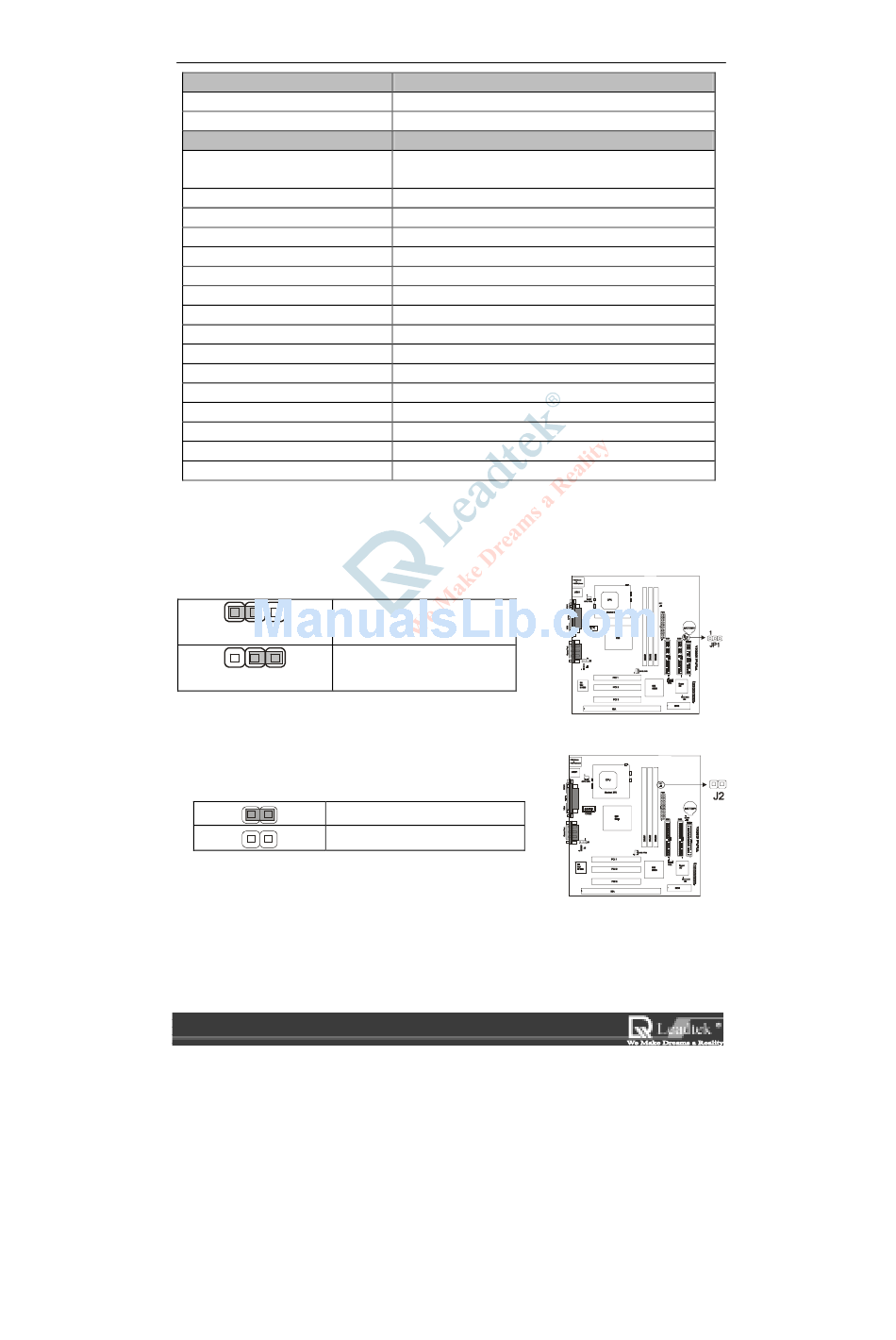

Quick Jumper Settings

JP1: Clear CMOS data
1 2 3
1 2 3
J2: Disable Internal VGA
Disable Internal VGA
4
Description
Short for Disabling Internal VGA
Clear CMOS Data
Description
PWRBTN, RESET, KEY LOCK, SPEAKER,
HDD_LED, POWER_LED, ACPI LED
IR Connector
CPU Fan
Wake-On-LAN
PS/2 Mouse (top), PS/2 Keyboard (bottom)
USB1, USB2
Printer, COM1, VGA
Midi/Joystick, Mic In, Line In 1, Line Out 1
System Fan
Audio Connector 1
Audio Connector 2
Hard Disk (Primary IDE)
Hard Disk (Secondary IDE)
ATX Power Connector
Floppy Disk
COM2
Clear CMOS data
Normal
Normal
