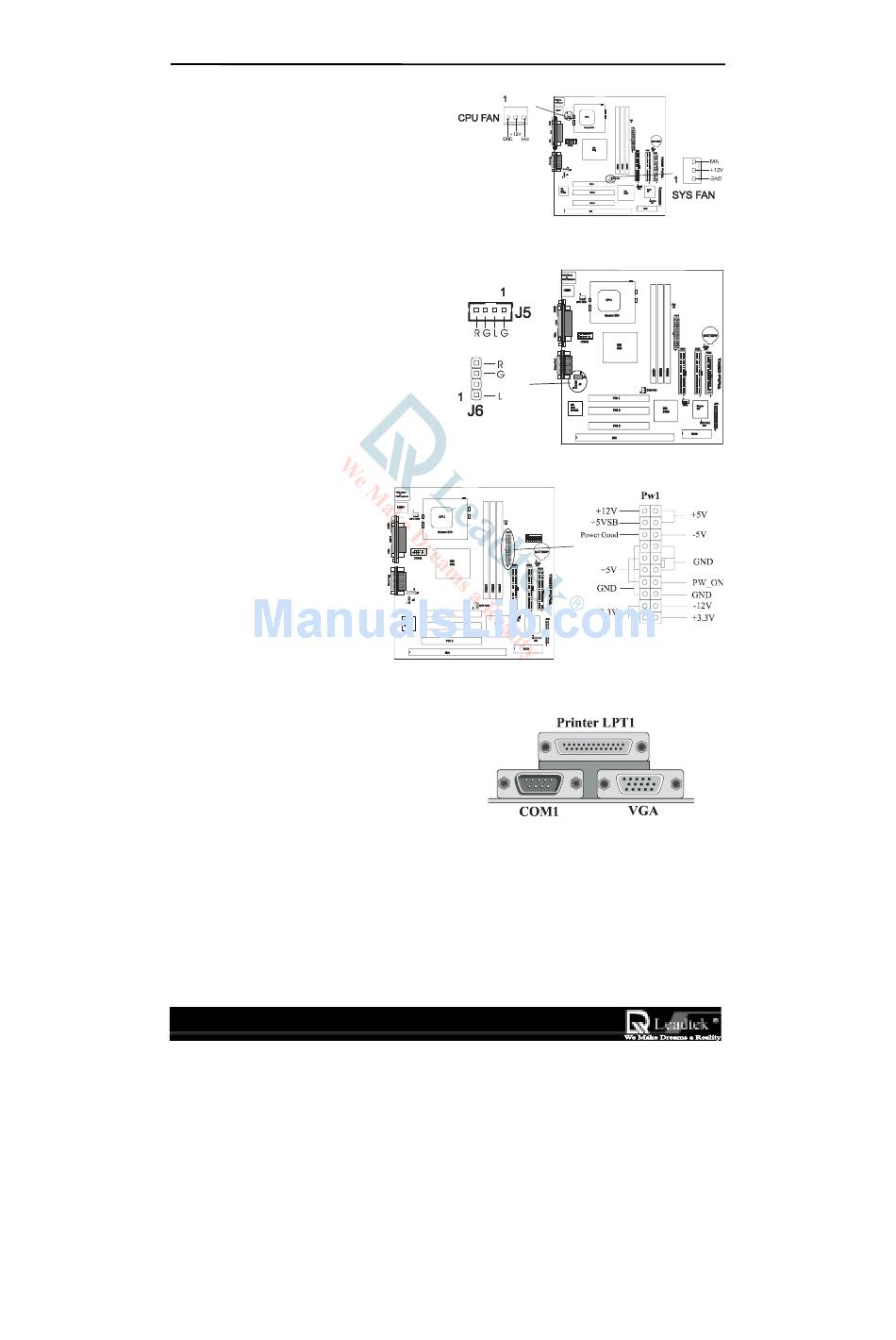

3-6 Cooling Fans (SYSFAN,CPUFAN)
SYSFAN,CPUFAN are small 3-pin Header
Connectors that provide 12-Volt power for
CPU and System cooling fans. Plug in the fan
cable to the connector.
3-7 Stereo Audio In Connectors (J5, J6)
J5, J6 allows you to receive stereo audio input
from an internal CDROM drive or other
auxiliary audio source.
3-8 Power Supply Connector (PW1)
This mainboard features
ATX-style Power Supply
Connector. This connector is
keyed to prevent connection in
the wrong direction. Line up the
locking mechanism on
connector from the Power Supply
with the tab on the mainboard
connector. Press down until the
two connectors are locked.
3-9 Serial , Parallel and VGA Ports
A 25-pin D-Sub header is provided on the
back panel for a multi-mode bi-directional
parallel port.
One 9-pin D-Sub headers is provided on the
back panel for Serial port COM1.
One VGA port is also provided.
WinFast
an
the
®
6200MA User's Manual
15
