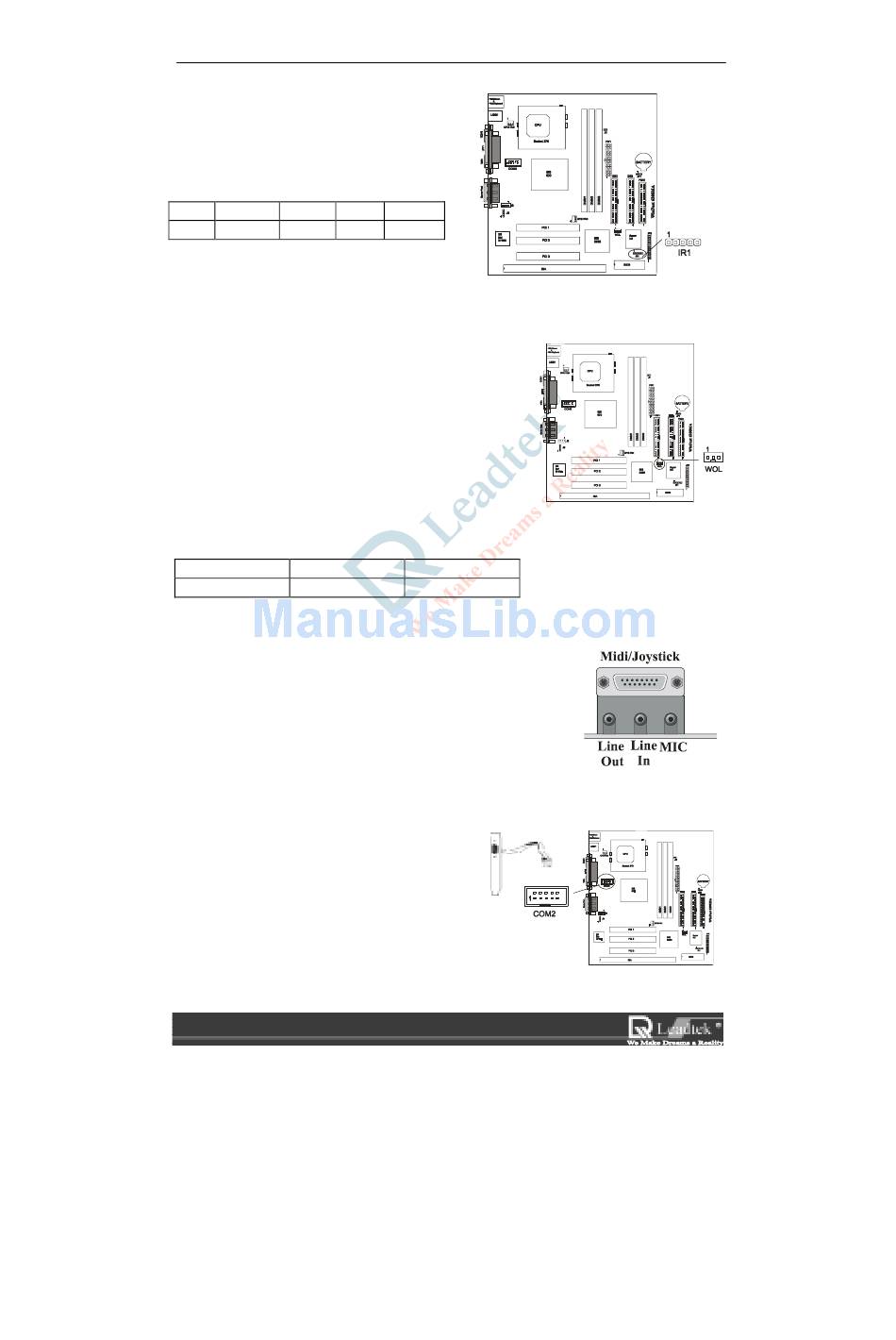

3-10 IrDA-Compliant Infrared Module Connector (IR1)
The IrDA connector bracket hooks directly to
this connector on the mainboard. This
connector provides support for the optional
wireless transmitting and receiving infrared
module.
1 2 3
+5V IRRXF IRRX
3-11 Wake –up On LAN Connector (WOL)
The Wake-up On LAN function will allow the network to
wake up a Soft Power Down (Soft-Off) PC. However, if your
system is in the Suspend mode, you can wake-up the system
only through an IRQ or DMA interrupt. To use the Wake-up
On LAN function, you must enable the "Ring Power Up
Control" field in the Power Management Setup of the Award
BIOS. Connect the cable that comes with your LAN card to
location WOL on the system board. Refer to the add-in
card's manual for details. Note: Your LAN card must
support Magic Packet in order to use the Wake-up-On-LAN
function.
1
+5VSB GND
3-12 Midi/Joystick, MIC, Line In, Line Out
Midi/Joystick: Allow you to connect game joystick or game pad for
playing games or connect Midi devices for playing or editing audio.
Mic: allows microphones to be connected for inputting voice.
Line In: allows tape players or other audio sources to be recorded
by your computer or played through the Line Out.
Line Out: can be connected to headphones or speakers with
amplifier.
3-13

COM2 Connector

This connector is located on board for serial port
COM2.
16
4 5
GND IRTX
2 3
RING
