Page 1: User Guide
MIL-S24002TGxx 24-port 10/100/1000 TX 2 Combo SFP Slots Unmanaged Switch User Guide Rev.A 20-OCT2005... - Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Content 1. Introduction ................1 Features..................1 Package Contents..............2 2. Hardware Description.............. 3 Front Panel ................3 Rear Panel................3 LED Indicators ................4 3. Installation ................6 4. Network Application..............7 5. Troubleshooting ..............8 6. Technical Specification............9... -
Page 4: Introduction
1. Introduction The 24-port 10/100/1000 TX plus 2 combo SFP Slots Combo SFP Slots Switch is an ideal solution for solving traffic block at the core of the network. It offers 24 x auto-negotiation 10/100/1000Base-T Gigabit Ethernet ports that can significantly improve your network backbone performance. -
Page 5: Package Contents
Package Contents The 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch Power Cord Four Rubber Feet User Manual The 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch Power Cord User Guide Rubber Feet Figure 1-1. Package Contents Compare the contents of your 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch package with the standard checklist above. -
Page 6: Hardware Description

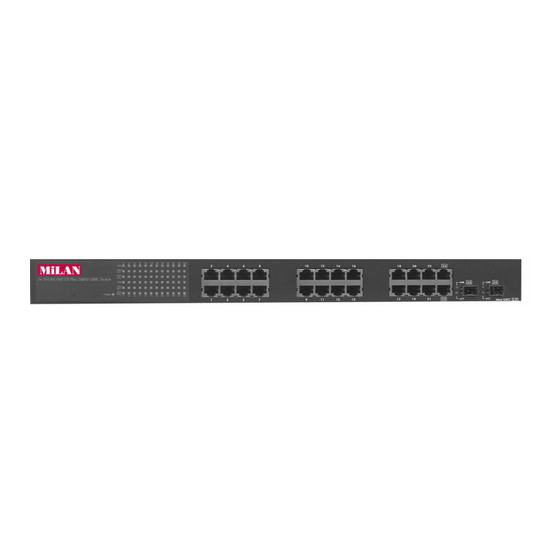

2. Hardware Description This Section describes the hardware of the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch. The physical dimensions of the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch is: 440 x 224 x 44 mm (W x D x H) Front Panel The Front Panel of the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch consists of 24 x auto-negotiation 10/100/1000Mbps Ethernet RJ-45 connectors (support Automatic... -
Page 7: Led Indicators
The 3-pronged power plug, on/off switch, and Ventilation fan are located at the rear Panel of the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch as shown in Figure 2-2. The Switch will work with AC in the range 100-240V AC, 50-60Hz. Figure 2-2. -
Page 8: Combo Sfp Slots Led
Blinking Packet collision occurred on this port. No device attached or in half-duplex mode. Table 2-1. The Descriptions of LED Indicators Combo SFP Slots LED 2 Combo SFP Slots ports have two LED indicators – LNK and ACT. The following table provides descriptions of LEDs status and their meaning. -
Page 9: Installation
3. Installation This section shows the installation procedures of the switch. Set the Switch on a sufficiently large flat space with a power outlet nearby. The surface where you put your Switch should be clean, smooth, level, and sturdy. Make sure there is enough clearance around the Switch to allow attachment of cables, power cord and air circulation. -
Page 10: Network Application
4. Network Application This section provides you one sample of network topology in which the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch is used. In general, the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch is designed as a high-bandwidth backbone switch. You can use the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch to connect servers, switches, workstation, and PCs to each other by connecting these devices directly to the Switch. -
Page 11: Troubleshooting
5. Troubleshooting The Switch can be easily monitored through panel indicators to assist in identifying problems. This section describes common problems you may encounter and where you can find possible solutions. Diagnosing LED Indicator If Link indicator does not light up after connection, you may check whether network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective or not. -
Page 12: Technical Specification
6. Technical Specification The following table provides the technical specification of the 24-port 10/100/1000 TX plus 2 Combo SFP Slots Switch. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3z Gigabit fiber IEEE802.3ab 1000Base-T Protocol CSMA/CD Technology Store-and-Forward switching architecture 14880 Packets per Second for 10Mbps Transfer Rate 148800 Packets per second for 100Mbps 1488000 Packets per second for 1000Mbps... - Page 13 Consumption Operation 0 to 45 (32 to 113 ) Temperature Operation 10% to 90% (Non-condensing) Humidity Dimension 440mm(W) x 224mm(D) x 44mm (H) EMI & Safety FCC Class A, CE, UL, CE/EN60950 1329 Moffett Park Drive Sunnyvale, CA 94089...
- Page 14 Phone: +1.408.744.2775 www.milan.com...
