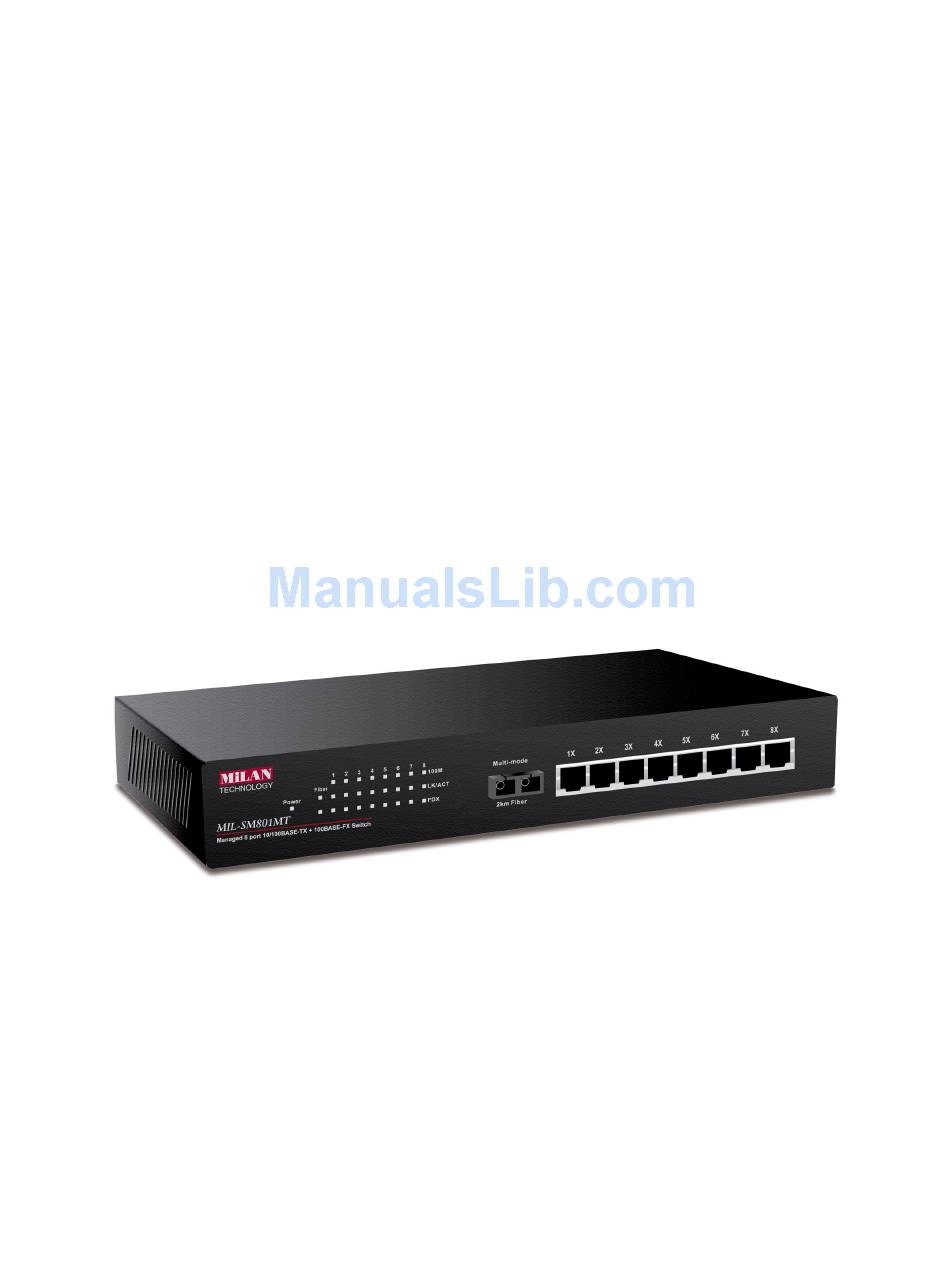

- Page 1 MIL-SM801xx Managed 9 Port Switch Eight 10/100BASE-TX Ethernet ports With One fixed 100BASE-FX port USER GUIDE...
- Page 3 EN60950 (IEC950) - Product Safety Five-Year Limited Warranty MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date. Any warranty hereunder is extended to the original consumer or purchaser and is not assignable.
-
Page 4: Table Of Contents
Contents 1. Introduction…….…………….…………….……….…………………… Features ……………………………………………………...…..…….…….. Intelligent Management Features ……………………...………………….. Package Contents ………………………..………………..……….………... Ethernet Switching Technology ………………………..……………………. Management Methods ………………………………….……...…………….. 2. Hardware Description ………………..….…...…...……………………. Front Panel ……………………………..……………………...…...………….. MIL-SM801 ……………………………………………………………………… MIL-SM801SC with SC Connector …………….………………...…………. MIL-SM801ST with ST Connector ………………………………..………….. MIL-SM801MT with MT-RJ Connector ………..…………………..…………. MIL-SM801VF with VF-45 Connector …………………………..……………. -
Page 5: Introduction
In addition, each RJ-45 port supports Auto MDI/MDIX for easy installation. The MIL-SM801XX switch provides one 100Base-FX fiber port. There are 4 types of fiber connectors available on the switch. These fiber connectors are SC, ST, MT- RJ, VF-45 (multi-mode) and SC (single-mode). -
Page 6: Features
Port Trunking ( Up to 4 ports ---800Mbps cascade ) MIB II ( RFC1213 ) supported Port Configuration Port Disable/Enable Setting Auto-negotiation, 100 Full/half-duplex, or 10 Full/half-duplex mode Package Contents MIL-SM801XX Power cord Four rubber feet RS-232 cable for console port User Guide... -
Page 7: Ethernet Switching Technology
Figure 1-2. Package Contents Compare the contents of your MIL-SM801XX package with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service. Ethernet Switching Technology Ethernet Switching Technology dramatically boosted the total bandwidth of a... -
Page 8: Management Methods
Console and Telnet Management Console Management is done through the serial Console Port. This method requires a direct connection between a PC and the MIL-SM801XX. Telnet management is done over the network. Once the MIL-S801XX has an assigned IP address and is on the network, you can use Telnet to login and make configuration changes. -
Page 9: Hardware Description

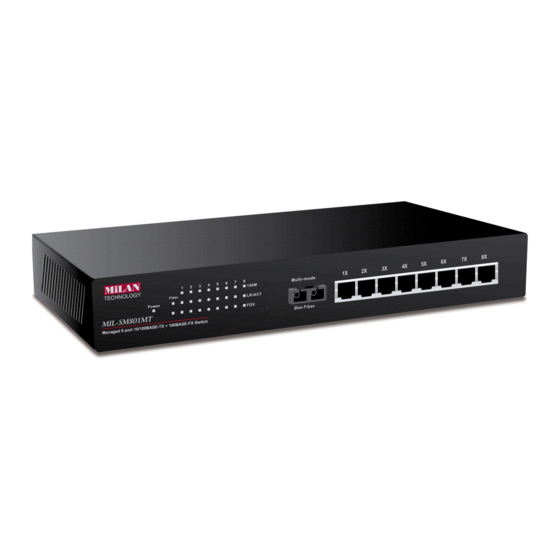

2. Hardware Description This section describes the hardware of the MIL-SM801XX series. The switch is compact in size with eight auto-sensing 10/100Mbps Ethernet RJ-45 ports and one 100Base-FX fiber port. Front Panel The front panel of the MIL-SM801XX series consists of eight auto-sensing 10/100Mbps Ethernet RJ-45 ports (automatic MDI/MDIX), one 100Base-FX fiber port, and LED indicators. -
Page 10: Mil-Sm801St With St Connector
Figure 2-5. The Front Panel of the MIL-SM801XX with MT-RJ connector Figure 2-6. The Front Panel of the MIL-SM801XX with VF-45 connector RJ-45 Ports (Auto MDI/MDIX): Eight 10/100 auto-sensing for 10Base-T or 100Base-TX connections. MDI configuration provides the means to connect to another hub or switch while MDIX provides connection to a workstation or PC. -
Page 11: Rear Panel
Table 2-1. Description of LED Indicators Rear Panel The 3-pronged power plug is located at the rear panel of the MIL-SM801XX as shown in Figure 2-8. The switch will work with AC in the range of 100-240V AC, 50- 60Hz. -
Page 12: Desktop Installation
Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. The surface should be clean, smooth, level, and sturdy. Make sure there is enough clearance around the switch to allow for air circulation and the attachment of cables and power cord. -
Page 13: Network Configuration
Connecting a Terminal or PC to the Console Port Figure 3-1. Connecting the MIL-SM801XX to a terminal via RS-232 cable Use the supplied RS-232 cable to connect a terminal or PC to the console port. The terminal or PC to be connected must support the terminal emulation program. -
Page 14: Assigning An Ip Address To The Switch
Figure 3-3. The Main Menu of Console Management Assigning an IP Address to the switch Once you have logged into the MIL-SM801XX, you need to assign an IP address to the switch’s Ethernet interface so that you can connect to the switch using a Web Browser. - Page 15 You will now find that the default IP address has been changed to IP address 192.168.12.40. Reboot by typing “reboot” or “H”. By similar methods, you can configure Subnet Mask (default subnet Mask is 255.255.255.0), Broadcast (default Broadcast is 255.255.255.255), and Gateway (default Gateway is 192.168.1.6).
- Page 16 Figure 4-5. Execute reboot Figure 3-6. After pressing Enter twice, you will find the old IP address has changed into new IP address. Note: After any setting changes, reboot. Use the ping command for verification.
-
Page 17: Secured Ip
Secured IP Secured IP can guard against unauthorized users accessing the switch management. Network security for IP access allows only one IP address or up to 3 IP addresses to access the web based management server and telnet server. The Default Secured IP is 0.0.0.0 for all three secured IP, which means that no network security on IP was set from original factory setting. -
Page 18: Resetting Factory Defaults
Simply type L 2 at the MIL>_ prompt and press enter. Note: If you do not type L 2, and only type L, the following option appears: Usage: loaddefault (0:1:2). The only correct option is L 2 for the MIL-SM801XX. -
Page 19: Web-Based Management
This section introduces the configuration and functions of the Web-based management for the MIL-SM801XX series. The MIL-SM801XX series provides an embedded HTML website residing in flash memory. It offers management features and allows users to manage the MIL- SM801XX from anywhere on the network through a standard Web Browser. - Page 20 4. Click Login button, then the Password Dialog Box appears. Figure 4-2. The Password Dialogue Box 5. Type in your User Name and Password. (the default is “root” for both.) 6. Click the “OK” button...
-
Page 21: System Configuration
Broadcast: 255.255.255.255 Default gateway: 0.0.0.0 System Group SysUp Time: MIL-SM801XX uptime. SysContact: You can enter the name of the person to contact if there are problems with the MIL-SM801XX switch. SysName : You can enter a name for the MIL-SM801XX. -
Page 22: Statistics
SysLocation: You can enter the switch physical location. Example: “MiLAN BLDG 10” Statistics The Statistics page displays detailed information for each port. Figure 5-2. The Statistics Page Note: Java must be enabled for statistics information to display. See Appendix settings. -
Page 23: Port Config
Port Configuration You can use the Port Configuration Page to Disable / Enable ports. Figure 5-3. The Port Config Page. In Figure 5-3, the default of each port is Enable. To Disable / Enable any port: 1. Select the drop-down menu in the Status Column. 2. -
Page 24: Speed Config
Speed Config In the Speed Configuration Page, you can configure the speed and duplex of each port. Fig. 5-4. The Speed Config Page To select the speed parameters for a port: Select the drop-down menu in Speed/Duplex Column. Select one of the following 6 Items: Auto/flow control enabled, Auto/flow control disabled, 100Base-Tx/Full Duplex, 100Base-Tx/Half Duplex, 10Base-T/Full Duplex, 10Base-T/Half Duplex. -
Page 25: Vlan
LAN, every user on the LAN will receive the broadcast. A VLAN (Virtual LAN) is a group of ports designated by the switch as belonging to the same broadcast domain. This feature allows workgroups to be defined on the basis of their logical location instead of their physical location. -
Page 26: Trunking
Trunking Trunking allows you to create additional bandwidth by aggregating several ports into one single group. Figure 5-6. The Trunking Page From the Trunking page you can click the drop-down menu and select your desired trunk group. You have a choice between a 2-port trunk (ports 1&2) or 4-port trunk (ports 1, 2, 3, &... -
Page 27: Agent Config
Agent Config After clicking the Agent Configuration page, the screen displays the MIL- SM801XX’s current configuration. Refer to the following Agent Configuration page for your own settings. Figure 5-7. The Agent Config Page... -
Page 28: Boot Methods
TCP/IP network. The following are the initial factory values. You can change the information by entering new information. (For example, you can change the MIL-SM801XX’s IP address by directly typing in new IP address.) Then click Apply after entering the information. -
Page 29: Technical Specifications
6. Technical Specifications The following table lists the specifications of the MIL-SM801XX series. Specifications Standards Compliance IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX/FX Fast Ethernet ANSI/IEEE 802.3 Auto-negotiation Protocol CSMA/CD Max Forwarding and 14,880 pps per Ethernet port Max Filtering Rate... -
Page 30: Troubleshooting
You can diagnose common problems by monitoring the LED indicators on the front panel of the switch. If you are having network connection issues the first place to check is the switches LED link lights. If you do not have a link light, you may have an incorrect cable type. -
Page 31: Browser Settings
Appendix Browser Settings In order to view all fields when using the MIL-SM801XX Web-based Management with Microsoft’s Internet Explorer you must modify the browser's Java settings. The screen shots from Internet Explorer 5.0 will aid you in making the necessary changes. -
Page 32: Appendix Internet Explorer Setting
Step 4: Un-check left-bottom box – “Require server verification for all sites this zone”, then click "OK" Step 6: Select “ Custom ” under “Java ” Step 5: Go back to Internet Options, then click “ Custom Level ”... - Page 33 Step 7: Select: Java - “Custom” Step 8: Select “Edit Permissions” then “Enable” under ”Run Unsigned Content”, then click "OK".
- Page 36 90000374_B...
