MIL-S2400S
User's Guide

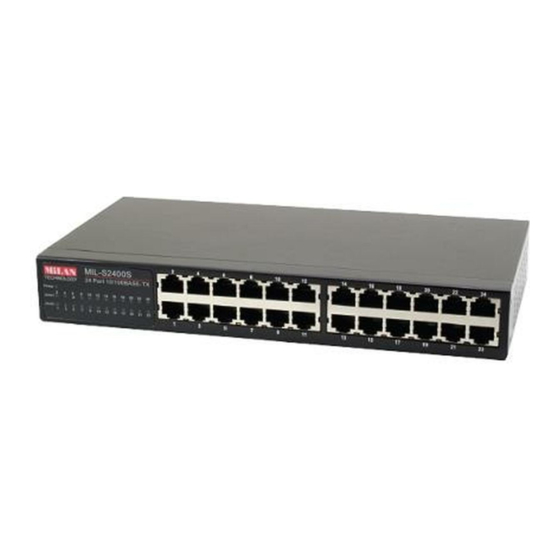

The MIL-S2400S switch is a twenty four port switch that can be used
to build high-performance switched workgroup networks. This switch
is a store-and-forward device that offers low latency for high-speed
networking. The MIL-S2400S switch has 24 auto-sensing
10/100Base-TX RJ-45 ports with auto MDI/MDIX and features a
"store-and-forward " switching scheme. This allows the switch to
auto-learn and store source address on an 4K-entry MAC address
table. Auto MDI/MDIX allows connection to another switch or work-
station without changing non-crossover or crossover cabling.
90000396_C
1
Advertisement
Related Manuals for MiLAN mil-s2400s
Summary of Contents for MiLAN mil-s2400s

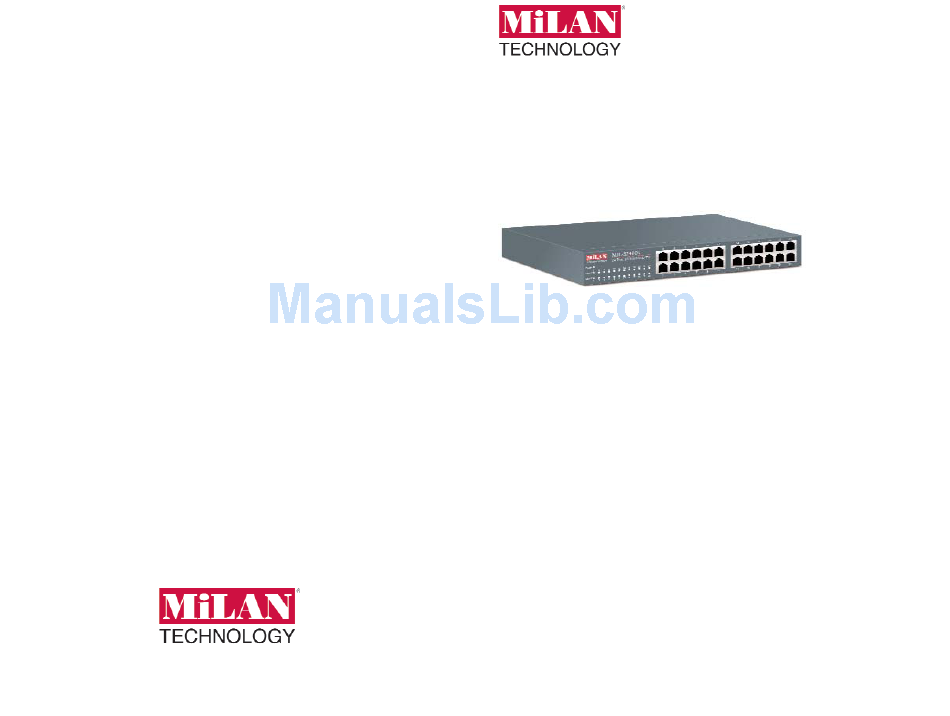

- Page 1 MIL-S2400S User’s Guide The MIL-S2400S switch is a twenty four port switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The MIL-S2400S switch has 24 auto-sensing 10/100Base-TX RJ-45 ports with auto MDI/MDIX and features a "store-and-forward "...
- Page 2 Any warranty hereunder is extended to the original consumer or purchaser and is not assignable. MiLAN Technology makes no express or implied warranties including, but not limited to, any implied warranty of mer- chantability or fitness for a particular purpose, except as expressly set forth in this warranty. In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Troubleshooting Features
• Full wire speed forwarding rate with 1.25Mb memory buffer. • 4K-entry MAC address table. • LED-indicators for Power, Link/Active. Package Contents Unpack the contents of the MIL-S2400S switch and verify them against the checklist below. • MIL-S2400S switch • Power Cord. -
Page 4: Hardware Description
Hardware Description Front Panel The Front Panel of the MIL-S2400S switch consists of 24 10/100Base-TX RJ-45 ports The LED Indicators are also located on the front panel of the switch. RJ-45 Ports (Auto MDI/MDIX): 24 10/100 auto-sensing for 10Base-T or 100Base-TX connections. (In general, MDI means con- necting to another hub or switch while MDIX means connecting to a workstation or PC.
