MiLAN MIL-SM24004TG Quick Installation Manual

24-port + 4 combo sfp slots gigabit ethernet multi-layer management switch
Hide thumbs Also See for MIL-SM24004TG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
24-Port + 4 Combo SFP Slots
Gigabit Ethernet Multi-Layer
Management Switch
MIL-SM24004TG
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIL-SM24004TG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MiLAN MIL-SM24004TG

Summary of Contents for MiLAN MIL-SM24004TG

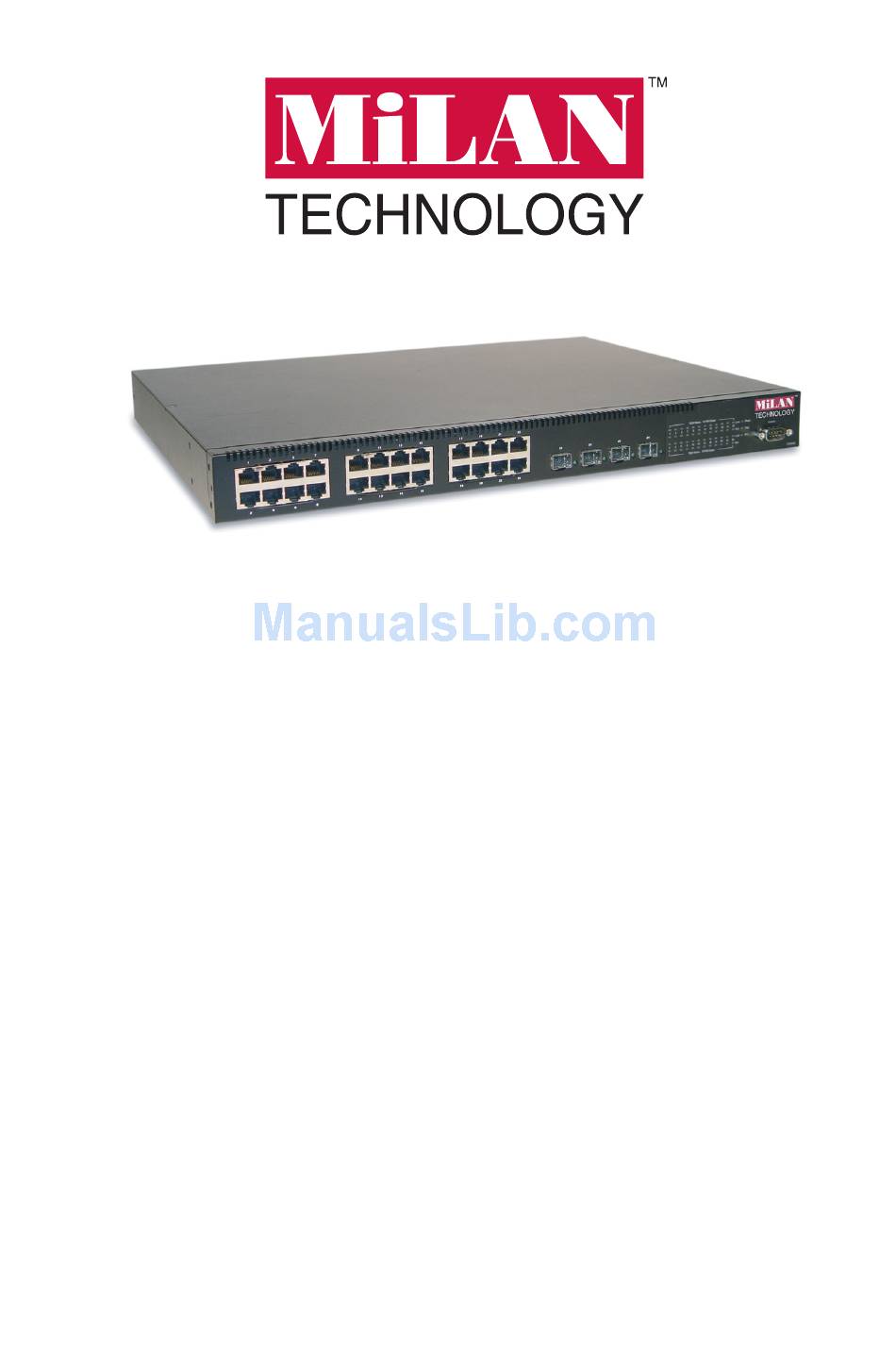

  • Page 1 24-Port + 4 Combo SFP Slots Gigabit Ethernet Multi-Layer Management Switch MIL-SM24004TG Quick Installation Guide...
  • Page 3 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.

  • Page 4: Compliances And Safety Warnings

    You can reach MiLAN Technology technical support at: E-mail: support@milan.com Telephone: +1.408.744.2751 Fax: +1.408.744.2771 MiLAN Technology 1329 Moffett Park Drive Sunnyvale, CA 94089 United States of America Telephone: +1.408.744.2775 Fax: +1.408.744.2793 http://www.milan.com info@milan.com © Copyright 2005 MiLAN Technology Compliances and Safety Warnings...
  • Page 5 ICE Mark Declaration of Conformance for EMI and Safety (EEC) This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC.

  • Page 6: Safety Compliance

    Faserkabelenden schauen, während diese eingeschaltet sind. Please read the following safety information carefully before installing the switch: WARNING: Installation and removal of the unit must be carried out by qualified personnel only. • The unit must be connected to an earthed (grounded) outlet to comply with international safety standards.

  • Page 7: Veuillez Lire À Fond L'information De La Sécurité Suivante Avant D'installer Le Switch

    HO3VVF3GO.75 (minimum). IEC-320 receptacle. Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch: AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un personnel qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à...

  • Page 8: Bitte Unbedingt Vor Dem Einbauen Des Switches Die Folgenden Sicherheitsanweisungen Durchlesen

    France et Pérou uniquement: Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à...

  • Page 9: Warnings And Cautionary Messages

    Stromkabel . Dies muss von dem Land, in dem es benutzt wird geprüft werden: Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalt- Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung) sein und die Aufschrift <HAR> oder <BASEC> tragen. Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”). Warnings and Cautionary Messages Warning: This product does not contain any user serviceable parts.

  • Page 10: Related Publications

    The inks used in the printing process are non-toxic. Purpose This guide details the hardware features of this switch, including its physical and performance-related characteristics, and how to install it. This guide is for system administrators with a working knowledge of network management.

  • Page 11: Table Of Contents

    Introduction to Switching Application Examples Collapsed Backbone Network Aggregation Plan Remote Connection with Fiber Cable Making VLAN Connections Application Notes Chapter 3: Installing the Switch Selecting a Site Ethernet Cabling Equipment Checklist Package Contents Optional Rack-Mounting Equipment Mounting Rack Mounting...
  • Page 12 1000 Mbps Gigabit Ethernet Collision Domain 100 Mbps Fast Ethernet Collision Domain 10 Mbps Ethernet Collision Domain Cable Labeling and Connection Records Appendix A: Troubleshooting Diagnosing Switch Indicators Diagnosing Power Problems with the LEDs Power and Cooling Problems Installation In-Band Access...
  • Page 13 Tables Table 1-1 Port Status LEDs Table 1-2 System Status LEDs Table 3-1 Serial Cable Wiring Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Length Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length Table 4-4 Maximum 1000BASE-LH Gigabit Ethernet Cable Length Table 4-5...
  • Page 14 Figure 2-4 Making VLAN Connections Figure 3-1 RJ-45 Connections Figure 3-2 Attaching the Brackets Figure 3-3 Installing the Switch in a Rack Figure 3-4 Attaching the Adhesive Feet Figure 3-5 Inserting an SFP Transceiver into a Slot Figure 3-6 Power Receptacle...

  • Page 15: Chapter 1: Introduction

    Chapter 1: Introduction Overview The MIL-SM24004TG Gigabit Ethernet Switch is an intelligent switch with 24 10/100/1000BASE-T ports, four of which are combination ports that are shared with four SFP transceiver slots. There is also an SNMP-based management agent embedded on the main board. This agent supports both in-band and out-of-band access for managing the switch.

  • Page 16: Switch Architecture

    Description of Hardware 10/100/1000BASE-T Ports The MIL-SM24004TG contains 24 RJ-45 ports that operate at 10 Mbps or 100 Mbps, half or full duplex, or at 1000 Mbps, full duplex. Because all ports on this switch support automatic MDI/MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.

  • Page 17: Status Leds

    Status LEDs The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following table. SFP Port Enabled Condition RJ-45 Ports Link/Act On/Flashing Yellow The port has a valid 10 or 100 Mbps link. Flashing indicates On/Flashing Green The port has a valid 1000 Mbps link.

  • Page 18: Optional Redundant Power Unit

    Optional Redundant Power Unit The switch supports an optional Redundant Power Unit (RPU) that can supply power to the switch in the event of failure of the internal power supply. Power Supply Receptacles There are two power receptacles on the rear panel of the switch. The standard power receptacle is for the AC power cord.

  • Page 19: Expandability

    • Supports flow control, using back pressure for half duplex and IEEE 802.3x for full duplex • Broadcast storm control Management • “At-a-glance” LEDs for easy troubleshooting • Network management agent: - Manages switch in-band or out-of-band - Supports console, Telnet, SNMP/RMON and web-based interface Features and Benefits...
  • Page 20 Introduction...

  • Page 21: Figure

    When networks are based on repeater (hub) technology, the distance between end stations is limited by a maximum hop count. However, a switch turns the hop count back to zero. So subdividing the network into smaller and more manageable segments, and linking them to the larger network by means of a switch, removes this limitation.

  • Page 22: Application Examples

    Gigabit Ethernet ports built into the front panel or a Gigabit Ethernet port on a plug-in SFP transceiver. In the figure below, the MIL-SM24004TG is operating as a collapsed backbone for a small LAN. It is providing dedicated 100 Mbps full-duplex connections to workstations and 1000 Mbps full-duplex connections to power users and servers.

  • Page 23: Network Aggregation Plan

    Network Aggregation Plan With 24 parallel bridging ports (i.e., 24 distinct collision domains), the MIL-SM24004TG can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 10/100/1000BASE-T ports on the switch are providing 100 Mbps connectivity for up to 24 segments through layer 2 switches.

  • Page 24: Remote Connection With Fiber Cable

    1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 5 km, and a 1000BASE-LH link up to 70 km. This allows a Gigabit Ethernet Switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN.

  • Page 25: Making Vlan Connections

    R&D VLAN 1 Tagged Ports Finance VLAN 2 Testing VLAN 3 VLAN 4 Note: When connecting to a switch that does not support IEEE 802.1Q VLAN tags, use untagged ports. Untagged Ports VLAN unaware switch Marketing Finance VLAN 3 Figure 2-4 Making VLAN Connections...

  • Page 26: Application Notes

    Application Notes Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode. Avoid using flow control on a port connected to a hub unless it is actually required to solve a problem.

  • Page 27: Chapter 3: Installing The Switch

    Ethernet Cabling To ensure proper operation when installing either switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the following criteria against the current installation of your network: •...

  • Page 28: Equipment Checklist

    Installing the Switch Equipment Checklist After unpacking the switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents • MIL-SM24004TG Gigabit Ethernet Switch •...

  • Page 29: Mounting

    Mounting A switch unit can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. Rack Mounting Before rack mounting the switch, pay particular attention to the following factors: •...

  • Page 30: Figure 3-3 Installing The Switch In A Rack

    Gerät. 2. Befestigen Sie das Gerät mit vier Rackmontageschrauben (nicht beigelegt) an dem Rack. 3. Wenn Sie nur einen Switch installieren, dann springen Sie bitte über zu "Verbinden mit einer Stromquelle" auf Seite 3-7 am Ende dieses Kapitels. 4. Wenn Sie mehrere Switches installieren möchten, dann montieren Sie sie untereinander in einer beliebigen Reihenfolge.

  • Page 31: Desktop Or Shelf Mounting

    Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter.
  • Page 32 Slide the SFP transceiver into the slot until it clicks into place. Note: SFP transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver.

  • Page 33: Connecting To A Power Source

    AC power source now, following the instructions included with the package. Connecting to the Console Port The DB-9 serial port on the switch’s front panel is used to connect to the switch for out-of-band console configuration. The on-board configuration program can be accessed from a terminal or a PC running a terminal emulation program.

  • Page 34: Wiring Map For Serial Cable

    Installing the Switch Wiring Map for Serial Cable Switch’s 9-Pin Serial Port 2 RXD (receive data) 3 TXD (transmit data) 5 SGND (signal ground) ------------------------------ 5 SGND (signal ground) No other pins are used. The serial port’s configuration requirements are as follows: •...

  • Page 35: Chapter 4: Making Network Connections

    Chapter 4: Making Network Connections Connecting Network Devices The MIL-SM24004TG is designed to interconnect multiple segments (or collision domains). It can be connected to network cards in PCs and servers, as well as to hubs, switches or routers. It may also be connected to devices using optional SFP transceivers.

  • Page 36: Network Wiring Connections

    Making Network Connections If the device is a PC card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See “Network Wiring Connections” on page 4-2.) Otherwise, attach the other end to an available port on the switch.

  • Page 37: Fiber Optic Sfp Devices

    Connect one end of the cable to the LC port on the switch and the other end to the LC port on the other device. Since LC connectors are keyed, the cable can be attached in only one orientation.

  • Page 38: Connectivity Rules

    Making Network Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The 1000BASE-SX, 1000BASE-LX and 1000BASE-LH fiber optic ports operate at 1 Gbps full duplex, with auto-negotiation of flow control. The maximum length for fiber optic cable operating at Gigabit speed will depend on the fiber type as listed under “1000 Mbps Gigabit Ethernet Collision Domain”...

  • Page 39: Table 4-3 Maximum 1000Base-Lx Gigabit Ethernet Cable Length

    Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth 9/125 micron single-mode fiber Table 4-4 Maximum 1000BASE-LH Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth 9/125 micron single-mode fiber Connectivity Rules Maximum Cable Length Connector 2 m - 5 km (7 ft - 3.2 miles) LC Maximum Cable Length Connector 2 m - 70 km (7 ft - 43.5 miles) LC...

  • Page 40: 100 Mbps Fast Ethernet Collision Domain

    For each piece of equipment, identify the devices to which it is connected. • Note the length of each cable and the maximum cable length supported by the switch ports. • For ease of understanding, use a location-based key when assigning prefixes to your cable labeling.

  • Page 41: Appendix A: Troubleshooting

    • If the condition does not clear, contact your dealer for assistance. • Verify that the switch and attached device are powered on. • Be sure the cable is plugged into both the switch and corresponding device. • Verify that the proper cable type is used and its length does not exceed specified limits.

  • Page 42: Installation

    IP address. Also, be sure the port through which you are connecting to the switch has not been disabled. If it has not been disabled, then check the network cabling that runs between your remote location and the switch.

  • Page 43: Appendix B: Cables

    In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3, and 6 at the other end of the cable. When using any RJ-45 port on this switch, you can use either straight-through or crossover cable.

  • Page 44: Straight-Through Wiring

    If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. (When auto-negotiation is enabled for any RJ-45 port on this switch, you can use either straight-through or crossover cable to connect to any device type.) You must connect all four wire pairs as shown in the following diagram to support Gigabit Ethernet connections.

  • Page 45: 1000Base-T Pin Assignments

    EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Crossover Cable End A 1000BASE-T Pin Assignments All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts.

  • Page 46: Cable Testing For Existing Category 5 Cable

    Cables Cable Testing for Existing Category 5 Cable Installed Category 5 cabling must pass tests for Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT). This cable testing information is specified in the ANSI/TIA/EIA-TSB-67 standard. Additionally, cables must also pass test parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT).

  • Page 47: Appendix C: Specifications

    Appendix C: Specifications Physical Characteristics Ports 24 10/100/1000BASE-T, with auto-negotiation 4 Combination Ports (RJ-45/SFP) Network Interface Ports 1-24: RJ-45 connector, auto MDI/X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable, Category 5, 5e, or 6 ) Buffer Architecture 1 Mbyte...

  • Page 48: Switch Features

    Internal, auto-ranging transformer: 90 to 240 VAC, 47 to 63 Hz External, supports connection for 14-pin redundant power unit Power Consumption 70 Watts maximum Maximum Current 0.7 A @ 110 VAC 0.3 A @ 240 VAC Switch Features Forwarding Mode Store-and-forward Throughput Wire speed Flow Control Full Duplex: IEEE 802.3x...

  • Page 49: Standards

    Standards IEEE 802.3-2002 Ethernet, Fast Ethernet, Gigabit Ethernet IEEE 802.1D (Spanning Tree Protocol) IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.3x full-duplex flow control ISO/IEC 8802-3 Compliances CE Mark Emissions FCC Class A Industry Canada Class A EN55022 (CISPR 22) Class A EN 61000-3-2/3 VCCI Class A...
  • Page 50 Specifications...

  • Page 51: Glossary

    Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 or better UTP cable. 1000BASE-LH Long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable. 1000BASE-LX IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125, 62.5/125 or 9/125 micron core fiber cable.
  • Page 52 Glossary CSMA/CD CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, or Gigabit Ethernet. End Station A workstation, server, or other device that does not forward traffic. Ethernet A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access, logical bus topology, and coaxial cable.
  • Page 53 Glossary IEEE 802.3z Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet. (Now incorporated in IEEE 802.3-2002.) LAN Segment Separate LAN or collision domain. Light emitting diode used for monitoring a device or network condition. Local Area Network (LAN) A group of interconnected computer and support devices.
  • Page 54 Glossary Transmission Control Protocol/Internet Protocol (TCP/IP) Protocol suite that includes TCP as the primary transport protocol, and IP as the network layer protocol. Unshielded twisted-pair cable. Virtual LAN (VLAN) A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network.
  • Page 55 IEEE 802.3 Ethernet 1-5 IEEE 802.3u Fast Ethernet 1-5 IEEE 802.3z Gigabit Ethernet 1-5 indicators, LED 1-3 installation connecting devices to the switch 4-1 desktop or shelf mounting 3-5 port connections 4-1 power requirements 3-1 problems A-2 rack mounting 3-3...
  • Page 56 3-1 management agent 1-2 features 1-5, C-2, C-3 out-of-band 1-2 SNMP 1-2 Web-based 1-2 mounting the switch in a rack 3-3 on a desktop or shelf 3-5 multimode fiber optic cables 4-3 network connections 4-1 examples 2-2 optional redundant power unit 1-4...
  • Page 58 MIL-SM24004TG P/N: 90000443 REV A...
