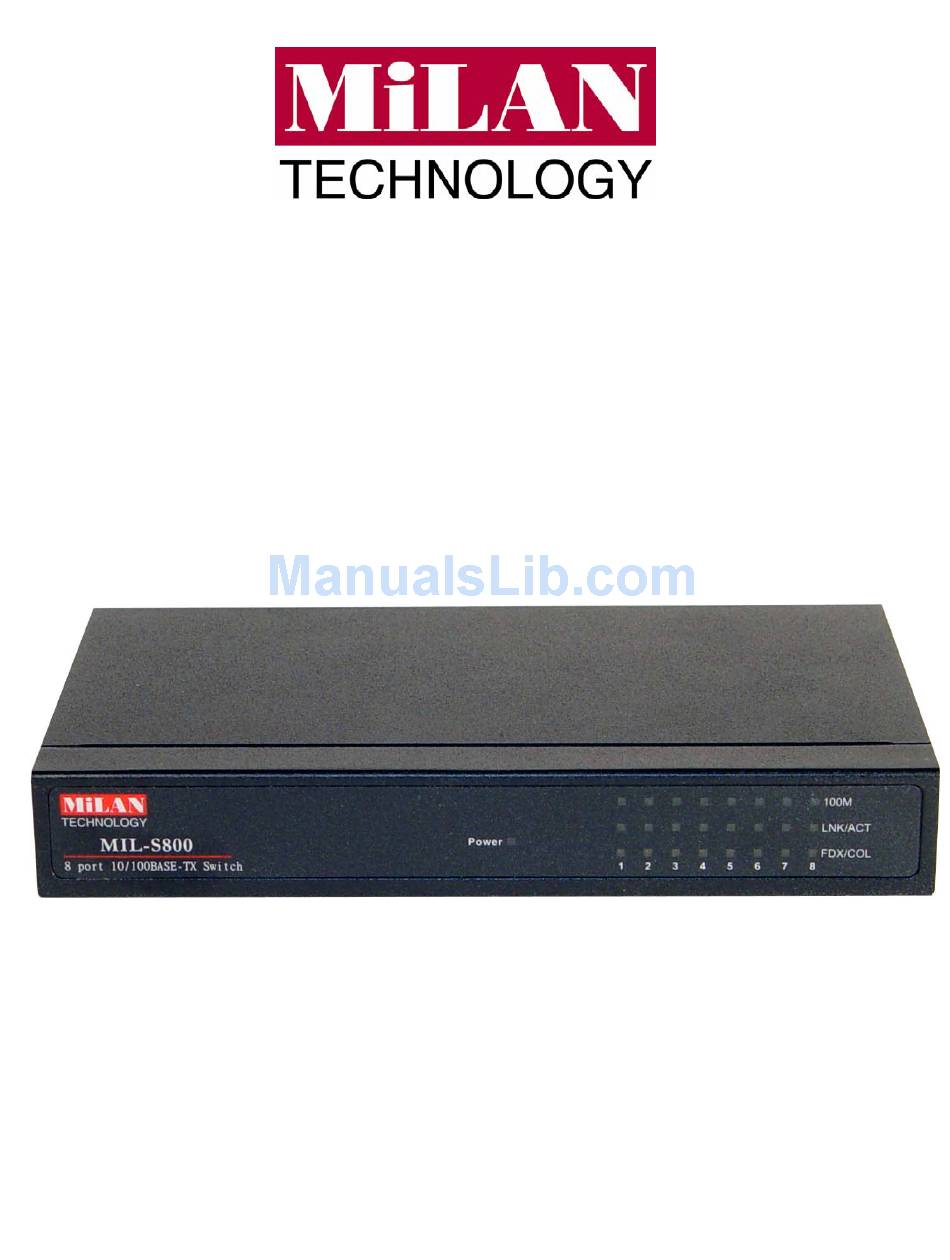

- Page 1 MIL-S800 User’s Guide 8 port 10/100BASE-TX Switch...
- Page 2 EN60950 (IEC950) - Product Safety Five-Year Limited Warranty MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date. Any warranty hereunder is extended to the original consumer or purchaser and is not assignable.
-
Page 3: Table Of Contents
Table of Contents Chapter 1. Introduction 1-1 General Description……………………………………. 1-2 Key Features……………………………………………… 1-3 Package Contents……………………………………… 1-4 Hardware Description………………………………….. Chapter 2. Hardware Installation Quick Installation………………………………………... 2-2 LED Descriptions…………………………………………. Chapter 3. Network Application Stand Alone……………………………………………… 3-2 Uplink Multiple Hubs……………………………………. Chapter 4. Trouble Shooting Chapter 5. -
Page 4: Chapter 1 Introduction
8 ports are needed, for a solution to an enterprise need or for a home network. The MIL-S800 can be mounted on the wall with keyholes in the chassis or magnetically attached to any metal surface. -
Page 5: Package Contents
1-3 Package Contents Your package contents should include the following parts: • One 8-port Auto-sensing switching Hub • One DC power adapter • This User’s Guide • Four rubber feet with adhesive pads • Two magnets • Warranty card Figure 1. Package contents... -
Page 6: Hardware Description
For LED details, please refer to Chapter 2, LED Descriptions. The Rear Panel The rear panel of the MIL-S800 consists of a DC power connector and 8 auto-sensing ports. · Eight Auto-sensing RJ-45 ports for 10BASE-T or 100 BASE-TX connections. -
Page 7: Chapter 2 Hardware Installation
For wall installation, place two screws securely into the wall. Slide the cross recesses on the bottom of the MIL-S800 onto the screws. • For mounting the MIL-S800 on a metal surface, install magnets as shown in instructions and apply to surface. •... -
Page 8: Led Descriptions
2-2 LED Descriptions Figure 5. Front panel view of LED indicators The following table lists the LEDs and their function. -
Page 9: Chapter 3 Network Application
100 meters. Figure 6. The switch as a backbone for a small 10/100BASE-TX network 3-2 Network You can cascade the MIL-S800 to another hub or a switch without using a crossover cable. Figure 7. Small Network Configuration... -
Page 10: Chapter 4 Troubleshooting
Verify that the cabling type is correct. Be sure all cable connectors are securely seated in the required ports. Use standard unshielded twisted-pair (UTP), Category 3, 4, or 5 cables. when there is a Fast Ethernet connection. Make sure the distance between the MIL-S800 and the workstation, is less than 100 meters. -
Page 11: Chapter 5 Product Specification
Chapter 5 Product Specification 5-1 General Specification IEEE 802.3 10Base-T Ethernet Standard Compliance IEEE 802.3u 100Base-TX Fast Ethernet 8 10/100Mbps Auto-sensing RJ-45 ports Number of Ports Ethernet :10Mbps(half duplex) 20Mbps(full duplex) Data Transfer Rate Fast Ethernet : 100Mbps(half duplex) 200Mbps(full duplex) Network Cables Unshielded twisted-pair cable LED Indicators... - Page 12 90000377_F...
