6-20
5. When the Message "Misfeed detected." Appears

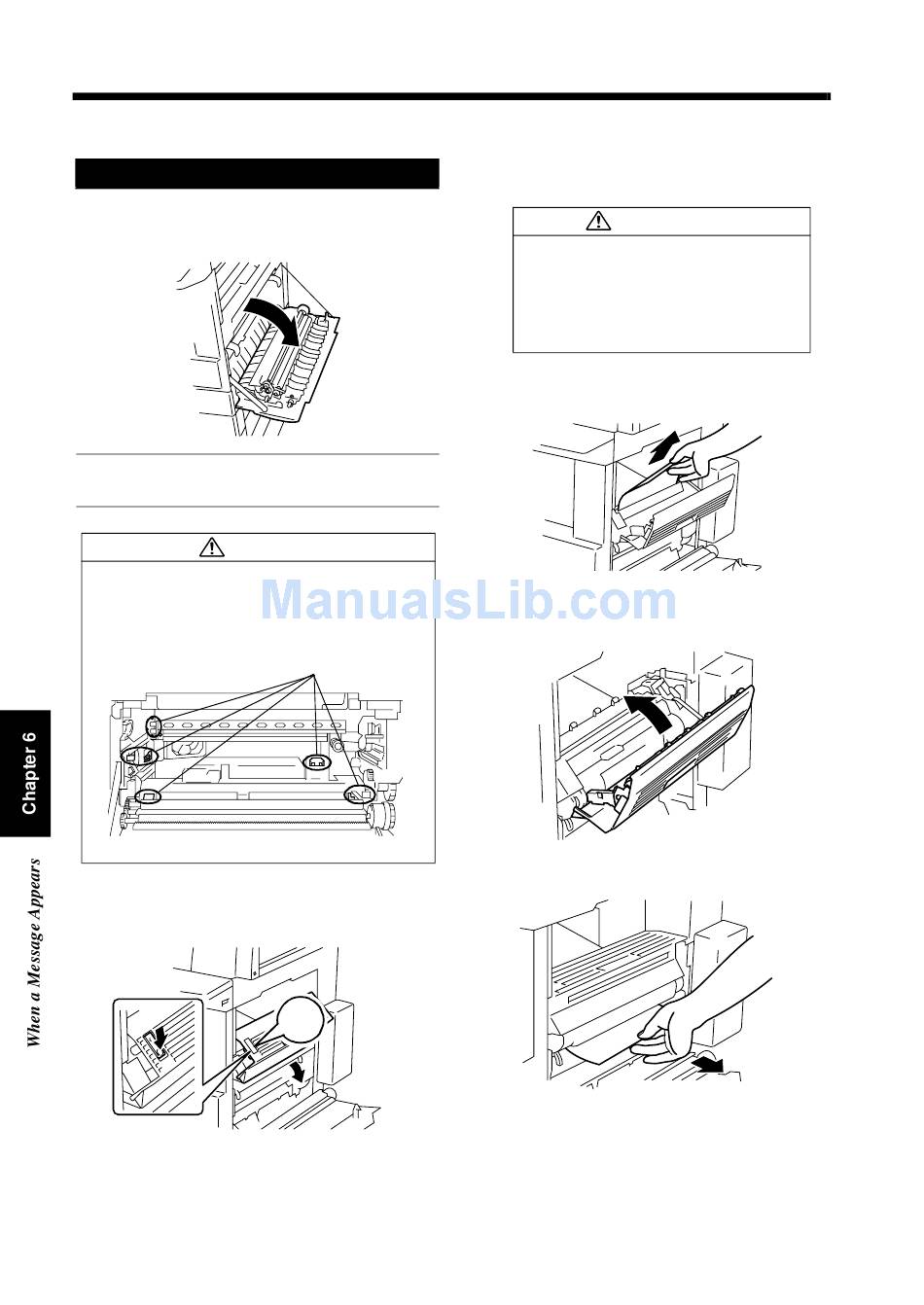

Misfeed Clearing Procedures

Machine
1
Unlock Lock Release Lever [R1] and open
the Right Door.
NOTE
Do not take out the Imaging Unit at this time.
CAUTION
NEVER touch the electrical contacts inside the
Right Door and underneath the Imaging Unit,
since an electrostatic discharge may damage the
machine.
2
Push the Lock Release Lever [R2] and open
the Upper Right Door.
3
4015O114AA
4
Electrical Contacts
1166O264AB
5
R2
4015O125AB
CAUTION
DO NOT touch any parts except paper
as the Fusing Unit and its surrounding
areas are extremely hot.
Do not touch anything but the paper to
prevent you from getting burned.
Gently pull out the sheet of paper.
Close the Upper Right Door.
Gently pull out the sheet of paper.
4015O126AB
4015O180AA
4015O124AB
