imagistics DL200 Operating Manual page 175

6-6

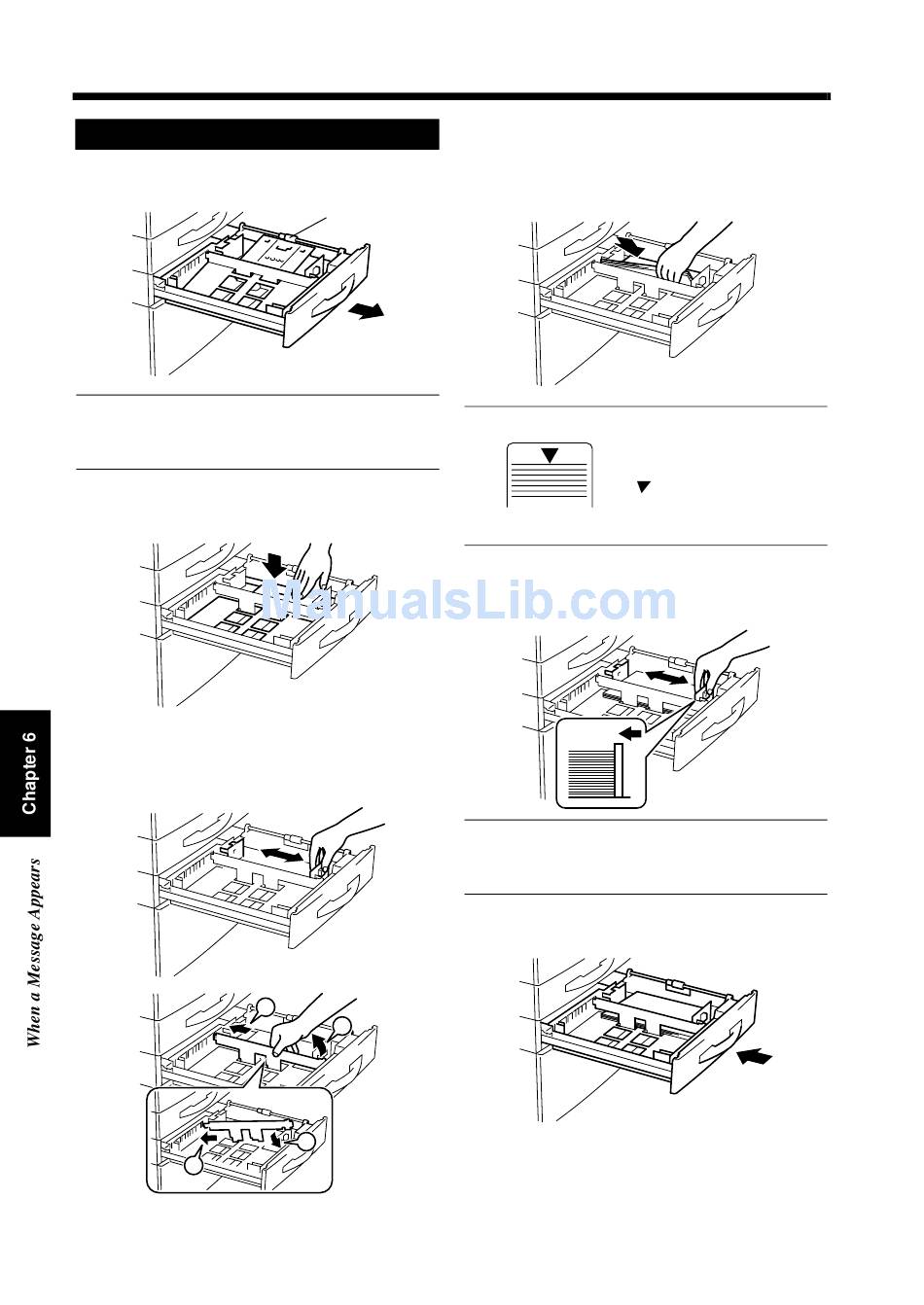

1. When the Message "Replenish paper." Appears
Paper Feed Unit 9867
1
Slide out the drawer.
NOTE
Be careful not to touch the surface of the paper
take-up roller with your hands.
2
Press the Paper Lifting Plate down until it
locks.
3
Remove the Trailing Edge Stop and place it
in a position that fits the size of the paper
loaded.
1
3
4
Paper take-up roller
4015O077AB
NOTE
5
4015O078AB
NOTE
Align the Edge Guide properly with the end face
of the paper stack.
6
4658U012AA
2
4
4015O079AB
Place the paper stack onto the Paper Plate so
that its front side faces up.
The paper should be
loaded no higher than
(Max. Level Indicator).
4015O145AA
Slide the Edge Guide to the exact size of the
paper loaded.
Slide the drawer back in.
4015O080AB
4015O081AC
4015O082AB
