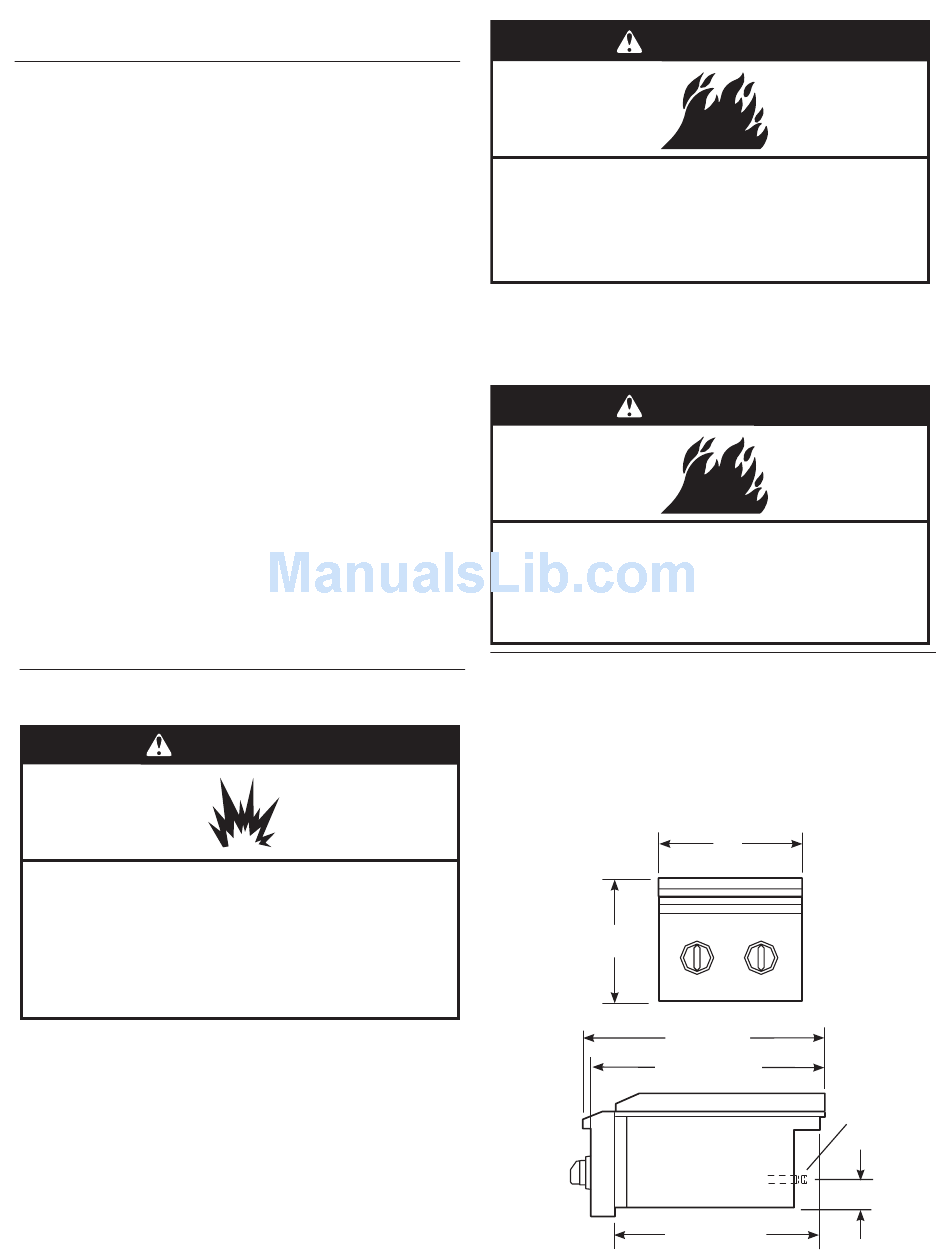

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Level
• Small flat-blade screwdriver
• Flat-blade screwdriver
• Phillips screwdriver
• Tape measure or ruler
• Slip-joint pliers
• Pipe wrench
Parts needed
• Gas line shutoff valve
• 1/2" male pipe thread nipple for connection to pressure
regulator
• L.P. gas-resistant pipe-joint compound
• CSA design-certified outdoor flexible stainless steel appliance
connector
[4-5 ft. (1.2-1.5 m)] or rigid gas supply line as needed
• Noncorrosive leak detection solution
Parts supplied
• Convertible regulator set for 4" W.C. natural gas

Location Requirements

WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store side burner with fuel tank in a garage or
indoors.
Failure to follow these instructions can result in death,
explosion, or fire.
4
WARNING
Do not use side burner near combustible materials.
Do not store combustible materials near side burner.
Doing so can result in death or fire.
Select a location that provides minimum exposure to wind
and traffic paths. The location should be away from strong
draft areas.
Do not obstruct flow of combustion and ventilation air.
WARNING
Do not install this side burner on or near combustible
materials.
Doing so can result in death or fire.

Product Dimensions

Clearance to combustible construction for built-in outdoor side
burners:
• A minimum of 12" (30.5 cm) must be maintained between the
sides and back and any combustible construction.
• A 12" (30.5 cm) minimum clearance must also be maintained
below the cooking surface and any combustible construction.
"
13-1/4
(33.7 cm)
26
25-1/2
21-3/8
Fire Hazard
Fire Hazard
"
12
(30.5 cm)
"
(66.0 cm)
"
(64.8 cm)
male NPT
"
(54.3 cm)
"
1/2
"
3-1/2
(8.9 cm)
