Yamaha TT-R90(R) Owner's Service Manual page 244

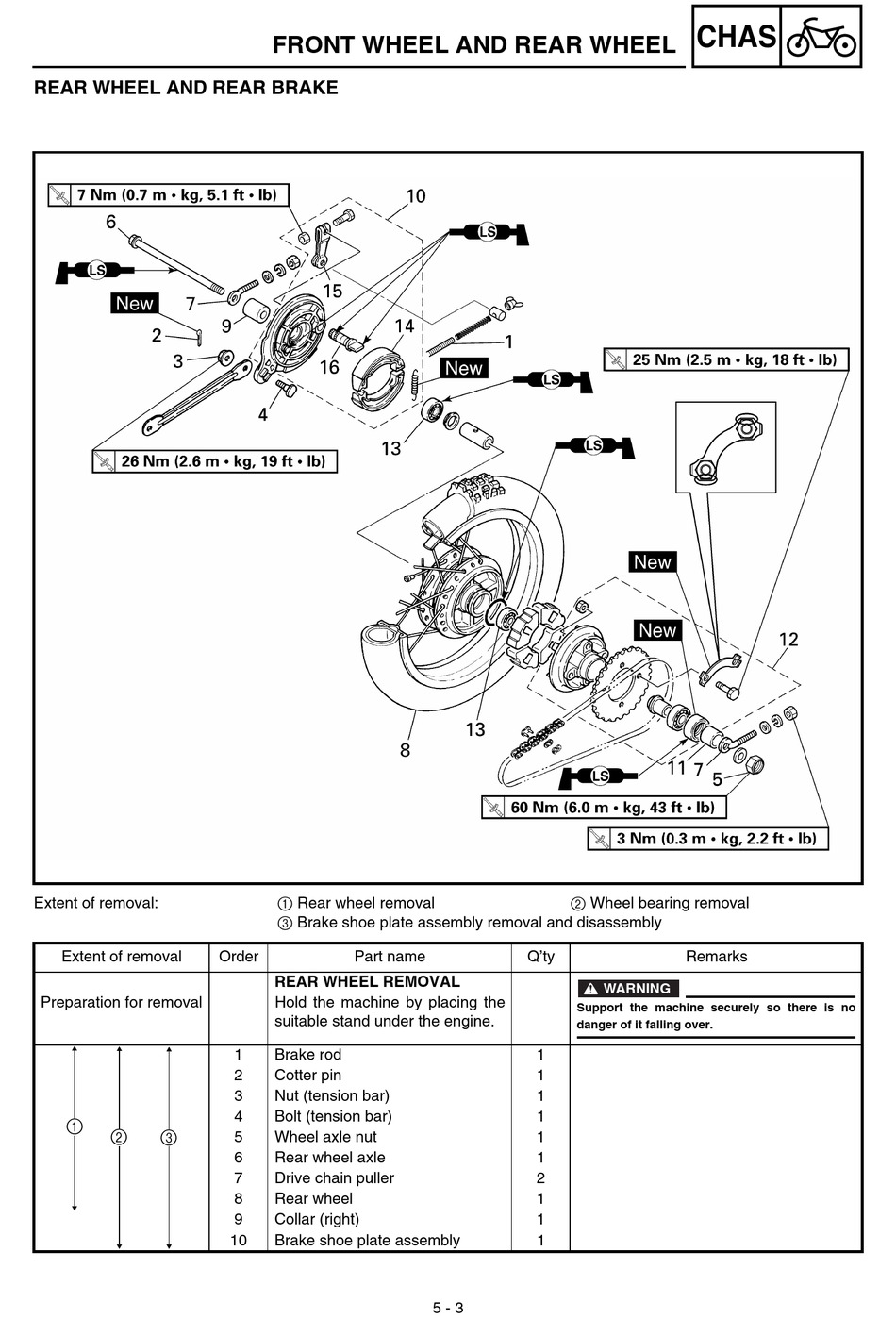

REAR WHEEL AND REAR BRAKE
Extent of removal:
Extent of removal
Preparation for removal
1
2
3
FRONT WHEEL AND REAR WHEEL
1 Rear wheel removal
3 Brake shoe plate assembly removal and disassembly
Order Part name
REAR WHEEL REMOVAL
Hold the machine by placing the
suitable stand under the engine.
1 Brake rod
2 Cotter pin
3 Nut (tension bar)
4 Bolt (tension bar)
5 Wheel axle nut
6 Rear wheel axle
7 Drive chain puller
8 Rear wheel
9 Collar (right)
10 Brake shoe plate assembly
2 Wheel bearing removal
Q'ty
Support the machine securely so there is no
danger of it falling over.
1
1
1
1
1
1
2
1
1
1
5 - 3
CHAS
Remarks
WARNING
