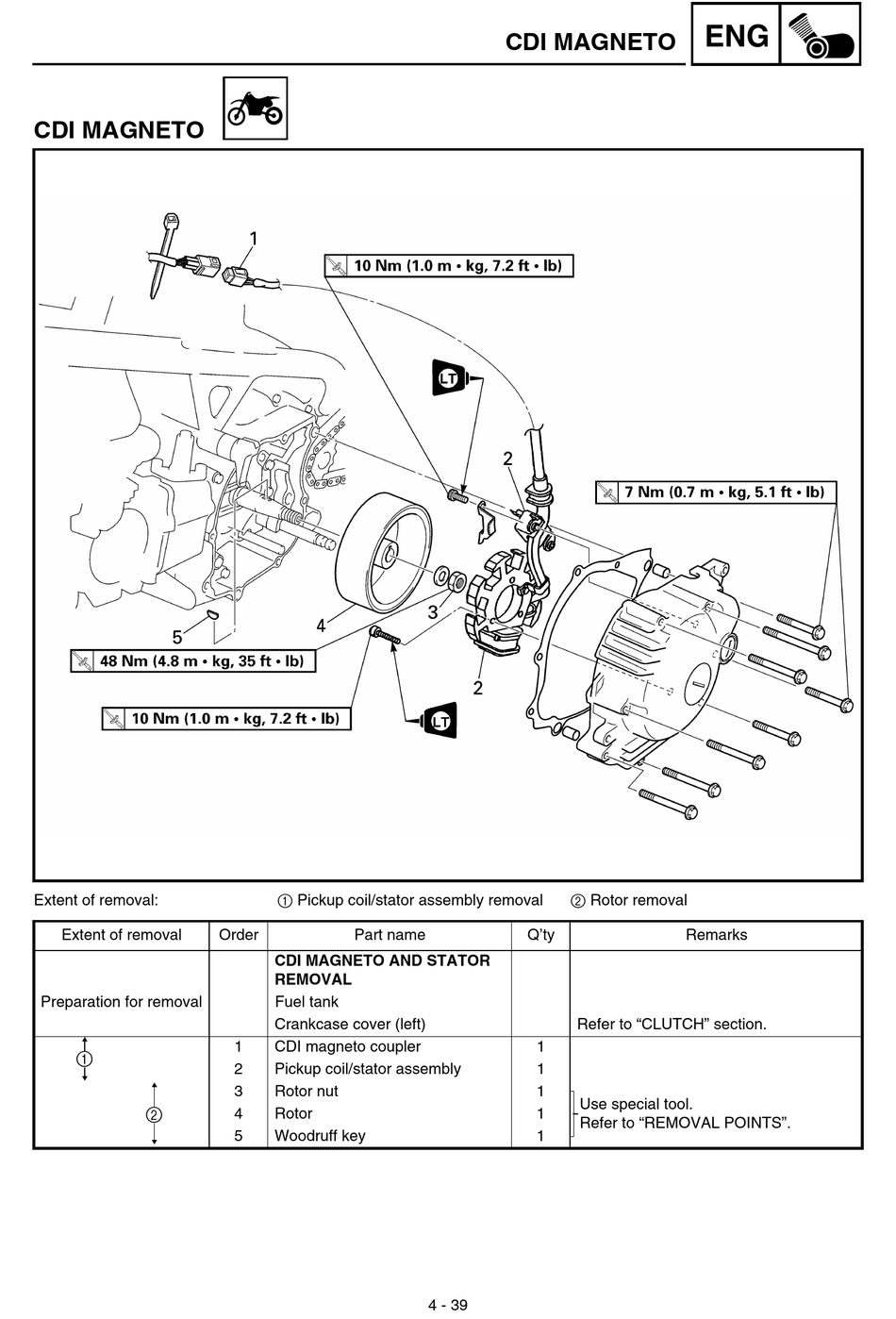

CDI MAGNETO

Extent of removal:
Extent of removal
Preparation for removal
1
2
1 Pickup coil/stator assembly removal
Order Part name
CDI MAGNETO AND STATOR
REMOVAL
Fuel tank
Crankcase cover (left)
1 CDI magneto coupler
2 Pickup coil/stator assembly
3 Rotor nut
4 Rotor
5 Woodruff key
CDI MAGNETO
2 Rotor removal
Q'ty
Refer to "CLUTCH" section.
1
1
1
Use special tool.
1
Refer to "REMOVAL POINTS".
1
4 - 39
ENG
Remarks
