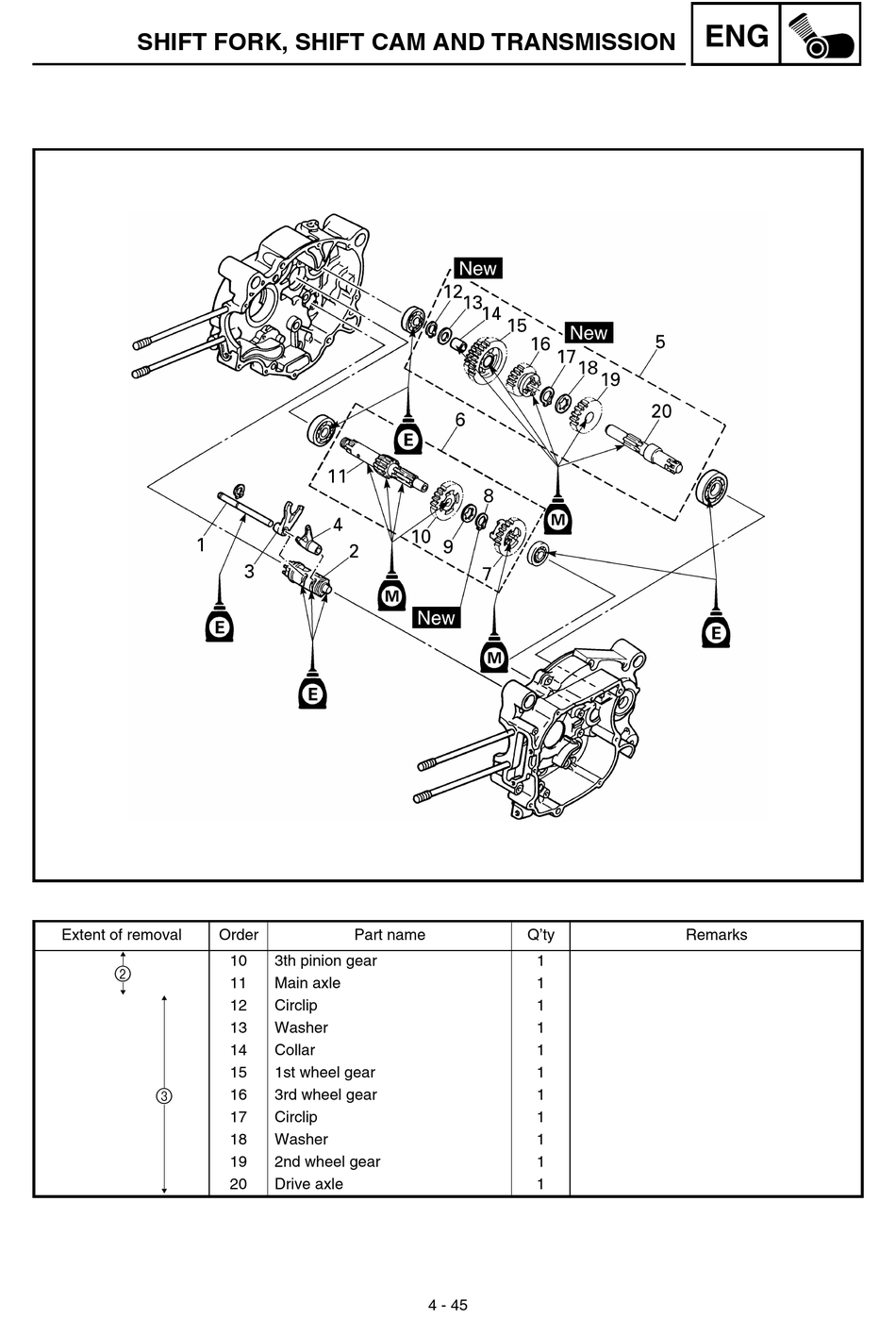

SHIFT FORK, SHIFT CAM AND TRANSMISSION
Extent of removal
Order
10
2
11
12
13
14
15
3
16
17
18
19
20
Part name
3th pinion gear
Main axle
Circlip
Washer
Collar
1st wheel gear
3rd wheel gear
Circlip
Washer
2nd wheel gear
Drive axle
4 - 45
Q'ty
Remarks
1
1
1
1
1
1
1
1
1
1
1
ENG
