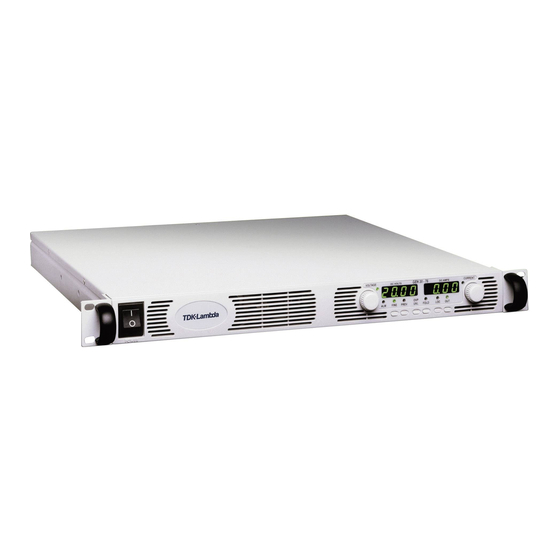

TDK Genesys User Manual

10kw/15kw programmable dc power supplies
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL FOR
GENESYS
Programmable DC Power Supplies
Document: 83-530-000 Rev J
TDK-Lambda Americas Inc.
High Power Division
405 Essex Road, Neptune, NJ 07753
Tel:
Fax:
www.us.TDK-Lambda.com/HP
10KW/15KW
TM
(732) 922-9300
(732) 922-9334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genesys and is the answer not in the manual?

Questions and answers

Related Manuals for TDK Genesys

Summary of Contents for TDK Genesys

  • Page 1 USER MANUAL FOR GENESYS 10KW/15KW Programmable DC Power Supplies Document: 83-530-000 Rev J TDK-Lambda Americas Inc. High Power Division 405 Essex Road, Neptune, NJ 07753 Tel: (732) 922-9300 Fax: (732) 922-9334 www.us.TDK-Lambda.com/HP...
  • Page 4 Genesys Manual Supplement For units equipped with the “IEMD” option, for IEEE-488 with Multi-drop, also refer to IEMD manual 83030200 For units equipped with the “LAN” option for Local Area Network with Multi-drop, also refer to LAN manual 83034100 For units equipped with “MD” option, Multi-drop, also refer to the respective IEMD or LAN manuals.

  • Page 5: Table Of Contents

    Table of Contents WARRANTY ............................3 SAFETY INSTRUCTIONS........................4 1. GENERAL INFORMATION......................21 1.1. User Manual Content...........................21 1.2. Introduction............................21 1.3. Accessories ............................22 1.4. Model Number Format.........................23 2. SPECIFICATION ..........................24 3. INSTALLATION ..........................30 3.1. General..............................30 3.2. Preparation for Use..........................30 3.3. Initial Inspections ..........................30 3.4. Rack Mounting.............................31 3.5.
  • Page 6 6. SERIES AND PARALLEL SUPPLIES ...................56 6.1. Series Operation..........................56 6.2. Parallel Operation..........................59 6.3. Daisy-Chain for Shut-Off........................62 6.4. Advanced Parallel Operation .......................62 7. REMOTE AND ANALOG PROGRAMMING ..................65 7.1. Introduction............................65 7.2. Local/Remote Analog Indication ......................65 7.3. Local/Remote Analog Indication ......................65 7.4. Remote Voltage Programming of Output Voltage and Current Limit ...........66 7.5.

  • Page 7: Warranty

    QA seal has been removed or altered by anyone other than TDK-Lambda Americas Inc. authorized personnel. TDK-Lambda Americas Inc. does not warrant the buyer’s circuitry or malfunctions of TDK-Lambda Americas Inc.

  • Page 8: Safety Instructions

    Failure to comply with the safety precautions or warnings in this document violates safety standards of design, manufacture and intended use of this equipment and may impair the built- in protections within. TDK-Lambda Americas Inc. shall not be liable for user’s failure to comply with these requirements. INSTALLATION CATEGORY The Genesys power supply series has been evaluated to INSTALLATION CATEGORY II.
  • Page 9 SAFETY INSTRUCTIONS ENVIRONMENTAL CONDITIONS The Genesys power supply series safety approval applies to the following operating conditions: *Indoor use *Ambient temperature: 0°C to 50°C *Maximum relative humidity: 80% (no condensation) *Altitude: up to 3000m *Pollution degree 2 ATTENTION Observe Precautions for handling Electrostatic Sensitive Devices.
  • Page 10 FCC COMPLIANCE NOTICE: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 11: Consignes De Securite

    équipement et peut compromettre les protections incorporées en lui. TDK-Lambda Americas Inc. ne sera pas responsable des conséquences si l'utilisateur ne respecte pas ces consignes.
  • Page 12 SUBSTITUTIONS ET MODIFICATIONS DE PIECES Les substitutions et modifications de pièces ne peuvent être effectuées que par les techniciens d'entretien agréés TDK-Lambda Americas Inc. Pour les réparations ou les modifications, l'instrument doit être renvoyé à un centre d'entretien agréé TDK-Lambda Americas Inc.
  • Page 13 Warnhinweise aus diesem Handbuch führt zur Verletzung der bestehenden Sicherheitsstandards für Design, Produktion und der zweckbestimmten Verwendung der Anlage und kann die integrierten Schutzvorrichtungen beschädigen. TDK-Lambda Americas Inc. ist nicht haftbar für Schäden, die durch Missachtung dieser Sicherheitsvorschriften entstehen können. INSTALLATIONSKATEGORIE Die Genesys Reihe der Netzgeräte wurde in die INSTALLATIONSKATEGORIE II eingeteilt.
  • Page 14 SPANNUNGSFÜHRENDE TEILE Die Geräteabdeckung darf nicht durch Betriebspersonal entfernt werden. Interne Modifikationen sowie Bauteileaustausch sind nur durch von TDK-Lambda Americas Inc. qualifiziertes Personal erlaubt. Vor dem Austausch von Komponenten muss immer die Versorgungsspannung getrennt werden. Um Personenschäden zu vermeiden, muss vor dem Kontakt mit dem Gerät immer die Stromversorgung unterbrochen, die Stromkreise entladen und externe Spannungsquellen entfernt werden.
  • Page 15 SICHERHEITSVORSCHRIFTEN Das VORSICHTSYMBOL deutet auf eine Gefahr hin. Die Aufmerksamkeit wird auf ein Verfahren gelenkt. Eine Missachtung der korrekten Einhaltung des Verfahrens kann zu Materialschaden führen. Ein VORSICHTSYMBOL darf nicht übergangen werden bis alle angezeigten Umstände vollkommen verstanden und eingehalten werden. FCC EINHALTUNGSVERMERK: Hinweis: Das Gerät wurde geprüft und erfüllt die Grenzwerte für ein digitales Gerät der Klasse A gemäß...

  • Page 16: Norme Di Sicurezza

    CATEGORIA DI INSTALLAZIONE La serie di alimentatori Genesys™ è stata valutata e risulta conforme alla CATEGORIA DI INSTALLAZIONE II. Categoria di installazione (categoria di sovratensione) II: livello locale, elettrodomestici, apparecchiature portatili ecc. Con sovratensioni transitorie inferiori alla Categoria di installazione (categoria di sovratensione) III.
  • Page 17 Americas Inc. Per riparazioni o modifiche, restituire lo strumento al centro assistenza di TDK-Lambda Americas Inc. CONDIZIONI AMBIENTALI L'approvazione della sicurezza della serie di alimentatori Genesys™ è valida in presenza delle condizioni d'uso seguenti: *Uso in interni *Temperatura ambiente: 0 ºC - 50 ºC *Umidità...
  • Page 18 NORME DI SICUREZZA AVVISO DI CONFORMITÀ FCC: NB: Questa apparecchiatura è stata testata ed è risultata conforme ai limiti per i dispositivi digitali di Classe A, ai sensi della parte 15 dei Regolamenti FCC. Tali limiti sono formulati per offrire ragionevole protezione dalle interferenze pericolose quando l'apparecchiatura viene azionata in ambienti commerciali.
  • Page 19 A TDK-Lambda Americas Inc. não poderá ser responsabilizada pelo não cumprimento destes requisitos por parte do utilizador.
  • Page 20 As modificações e substituições de peças apenas são permitidas quando realizadas pelo pessoal de assistência da TDK-Lambda Americas Inc. Para a realização de reparações ou modificações, é necessário devolver o instrumento a uma unidade de serviço autorizada da TDK-Lambda Americas Inc.
  • Page 21 INSTRUÇÕES DE SEGURANÇA DECLARAÇÃO DE CONFORMIDADE FCC: Nota: Este equipamento foi testado e considerado estar dentro dos limites necessários para um dispositivo digital da Classe A, em conformidade com a parte 15 das normas da FCC. Estes limites estão concebidos de forma a fornecer uma protecção razoável contra interferências nocivas quando o equipamento é...
  • Page 22 TDK-Lambda Americas Inc. no asumirá responsabilidad alguna si el usuario no cumple estos requisitos.
  • Page 23 El personal operativo no debe retirar la cubierta del aparato. Los ajustes internos o el reemplazo de componentes sólo pueden ser realizados por el personal cualificado de TDK-Lambda Americas Inc. Desenchufe siempre el cable de alimentación antes de reemplazar los componentes. Para evitar lesiones, desenchufe siempre el cable de alimentación, descargue los circuitos y desconecte la fuente...
  • Page 24 INSTRUCCIONES DE SEGURIDAD DECLARACIÓN DE CONFORMIDAD CON LA FCC: Nota: Este equipo ha sido ensayado y cumple con los límites establecidos para los dispositivos digitales de Clase A, de conformidad con lo dispuesto en el Apartado 15 de la normativa de la FCC. Estos límites han sido diseñados para proporcionar una protección razonable contra interferencias perjudiciales cuando el equipo se utilice en entornos comerciales.

  • Page 25: General Information

    1.1. User Manual Content This User’s Manual contains the operating instructions, installation instructions and specifications of the Genesys 15KW and 10KW power supply series. The instructions refer to the standard power supplies, including the built-in RS232/485 serial communication. For information related to operation with the optional IEEE programming, refer to User’s Manual for Power Supply IEEE/IEMD Programming Interface.

  • Page 26: Accessories

    Refer to the specifications for the maximum voltage drop value. 1.2.7. Cooling and Mechanical Construction The Genesys series is cooled by internal fans. At the installation, care must be taken to allow free airflow into the power supply via the front panel and out of the power supply via the rear panel.

  • Page 27: Model Number Format

    1.4. Model Number Format The model numbering system for Genesys power supply includes symbols for features and options. They are separated by dashes. The following chart explains the model number for the GEN Power Supply Family. GENXXXX—XXXX—XXXXX—XXXXX—XXXX DC OUTPUT VOLTAGE...

  • Page 28: Specification

    2. SPECIFICATION All specifications are subject to change without notice. Contact factory for specific model availability. 2.1. OUTPUT RATING (Duty Cycle Continuous Duty). 2.1.1. Standard Models – 10kW 1. Rated output Voltage 10 12.5 100 125 150 200 250 300 400 500 600 2.

  • Page 29: Protective Functions

    2.4. PROTECTIVE FUNCTIONS 10 12.5 100 125 150 200 250 300 400 500 600 1. OCP 0100 2. OCP Type Constant current 3. Knee point protection None, No damage at knee point operation 4. Short circuit protection 5. Short circuit burn-in 6.

  • Page 30: Front Panel

    2.7. FRONT PANEL 1. Control functions Vout/ Iout manual adjust by separate encoders. OVP/UVL manual adjust by Volt. Adjust encoder. Address selection by Voltage adjust encoder. No of addresses: 31 Go to Local Output On/Off AC On/Off Foldback control (CV to CC) RS232/485 and IEEE488.2 selection by IEEE or LAN enable switch and DIP switch Baud rate selection by Current adjust encoder.

  • Page 31: Environmental Conditions

    2.9. DIGITIAL PROGRAMMING AND READBACK 1. Vout programming accuracy +/-0.5% of rated output voltage 2. Iout programming accuracy +/-0.5% of rated output current for units with Io <187.5 +/-0.7% of rated output current for Io <187.5 3. Vout programming resolution 0.02% of full scale (To be confirmed) 4.
  • Page 32 2.12. EMC 2.12.1. 208 Volts Input Models CE Mark 1. ESD EN61000-4-2 (IEC 801-2) Air-disch. */-8kV, contact disch. +/-4kV 2. Fast transients EN61000-4-4 (IEC 1000-4-3) 3. Surge immunity EN61000-4-5 (IEC 1000-4-5) 4. Conducted immunity EN61000-4-6 (IEC 1000-4-6) 5. Radiated immunity EN61000-4-3 (IEC 1000-4-3) 6.
  • Page 33 2.15. J1 CONNECTOR J1-1 ENA_IN Enable/Disable Dry Contact with J1-14 J1-2 IF_COM Isolated Interface Common. Return for SO, PS_OK J1-3 IF_COM Isolated Interface Common. Return for SO, PS_OK J1-4 J1-5 J1-6 J1-7 J1-8 LOC/REM Input for selecting between Local or Remote analog programming. J1-9 VPGM Input for remote analog voltage/resistance programming of the Output Voltage...

  • Page 34: Installation

    3. INSTALLATION 3.1. General This Chapter contains instructions for initial inspection, preparation for use and repackaging for shipment. Connection to PC, setting the communication port and linking Genesys power supplies are described in Chapter 8. NOTE Genesys power supplies generate magnetic fields, which might affect the operation of other instruments.

  • Page 35: Rack Mounting

    3.4. Rack Mounting The Genesys power supply series is designed to fit in a standard 19” equipment rack. 3.4.1. To Install the Power Supply in a Rack: 3.4.1.1. Use the front panel rack-mount brackets to install the power supply in the rack.

  • Page 36: Turn-On Checkout Procedure

    Input Rating Label Input Terminal Block Input Terminal Block with cover. NOTE: The figure shows input connection from left side. For connection from right side reverse the input cover. Figure 3-1. AC Input Connections 3.7.1. Recommended Cable Size for Input Connection INPUT VOLTAGE CURRENT RMS AMPS RECOMMENDED...
  • Page 37 Figure 3-2: sense connector default connection  For units equipped with IEEE option, ensure that the IEEE_En switch is in the Up (default) position (Refer to Fig. 4-2, Item 9 for location), if checkout is to be done in IEEE mode. b) Connect the unit to an AC source as described in Section 3.7.
  • Page 38 e) Wait a few seconds until the VOLT display returns to show the output voltage. f) Adjust the output voltage toward its maximum and check that the output voltage cannot be increased more than the OVP  1.05 setting. g) Adjust OVP limit to the maximum by repeating Step C and rotating the VOLT encoder C.W.

  • Page 39: Connecting The Load

    3.9. Connecting the Load WARNING Turn Off the AC input power before making or changing any rear panel connection. Ensure all live circuits are discharged and that all connections are securely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V.
  • Page 40 3.9.2. Noise and Impedance Effects To minimize the noise pickup or radiation, the load wires and remote sense wires should be twisted pairs to the shortest possible length. Shielding of sense leads may be necessary in high noise environments. Where shielding is used, connect the shield to the chassis via a rear panel Ground screw.
  • Page 41 3.9.5. Connecting Single Loads, Remote Sensing Fig.3-4 shows recommended remote sensing connection for single loads. Remote sensing is used when, in Constant Voltage mode, the load regulation is important at the load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either at the power supply chassis or the load ground.
  • Page 42 3.9.6. Multiple Load Connection with Distribution Terminals If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by pair of twisted and/or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig.3-6).

  • Page 43: Local And Remote Sensing

    3.10. Local and Remote Sensing The rear panel J2 sense connector is used to configure the power supply for local or remote sensing of the output voltage. Refer to Fig.3-7 for sense connector location. 3.10.1. Sense Wiring 3.10.2. Local Sensing The power supply is shipped with the rear panel J2 sense connector wired for local sensing of the output voltage.

  • Page 44: Repackaging For Shipment

    Tightening torque: 0.22-0.25Nm (1.95-2.21Lb-Inch.) 3.11. Repackaging for Shipment To ensure safe transportation of the instrument, contact the TDK-Lambda Americas Inc. sales or service facility near you for Return Authorization and shipping information. Please attach a tag to the power supply describing the problem and specifying the owner, model number and serial number of the power supply.

  • Page 45: Front And Rear Panel Controls And Connectors

    Before starting to operate the unit, please read the following sections for explanation of the functions of the controls and connectors terminals. 4.2. Front Panel Controls and Indicators GENESYS POWER SUPPL Y VOLTAGE CU RR ENT DC VOLTS DC AMPS...
  • Page 46 Table 4-1: Front Panel Controls and Indicators Number Control/Indicator Description Section 5.2.1 VOLTAGE control High resolution rotary encoder for adjusting the Output Voltage. Also 5.3.1 adjusts the OVP/UVL levels and selects the Address 5.4.1 8.2.2 VOLTAGE indicator Green LED, lights for constant-Voltage mode operation. VOLTAGE display 4 digit, 7-segment LED display.
  • Page 47 Table 4-1: Front Panel Controls and Indicators (Cont.) Number Control/Indicator Description Section OVP/UVL button Over Voltage Protection and Under Voltage limit setting. -Press once to set OVP using VOLTAGE encoder (the current display shows “OUP”) -Press again to set the UVL using VOLTAGE encoder (the current display shows “UUL”).
  • Page 48 Platform A Output Range 7.5V-30V RS 48 5/232 OU T A C INPU T 208 VA C 52 A/ PH 50-60 H z C AU T IO N: T O RQ U E TE R MINA L T O 32 IN-LB S . (3.5NM ) Safety (PE) GND must be...
  • Page 49 Table 4-2: Rear Panel Connections and Controls Section Number Item Description AC input connector M6 Stud terminal suitable for ring lugs. DC output Bus-bars up to 300V models. Fig. 4.2 Stud terminals for models above 300V. Remote-In RJ-45 type connector, use for connecting power supplies to RS232 connector or RS485 port of computer for remote control purposes.

  • Page 50: Rear Panel Sw1 Setup Switch

    4.3. Rear Panel SW1 Setup Switch The SW1 Setup switch (see Fig.4-3) is a 9-position DIP switch that allows the user to choose the following: Fig. 4-3: SW1 setup DIP switch 4.3.1. SW1 Position Function Refer to Table 4-3 for description of SW1 position functions. The factory default setting is Down for all positions.

  • Page 51: Rear Panel J1 Programming And Monitoring Connector

    4.4. Rear Panel J1 Programming and Monitoring Connector The J1 Programming and Monitoring connector is a DB25 subminiature connector located on the power supply rear panel. Refer to Table 4-4 for description of the connector functions. The power supply default configuration is Local operation, which does not require connections to J1.
  • Page 52 Table 4-4: J1 Connector Terminals and Functions J1 contact Signal name Function Section J1-1 ENA_IN Enable/Disable the power supply output by dry-contact (short/open) with ENA_OUT. J1-2 IF_COM Isolated Interface Common. Return for the SO control, PS_OK signal J1-3 and for the optional IEEE interface. No Connection J1-47 J1-8...

  • Page 53: Local Operation

    5. LOCAL OPERATION 5.1. Introduction This Chapter describes the operating modes that are not involved in programming and monitoring the power supply via its serial communication port (RS232/RS485) or by remote analog signals. Ensure that the REM/LOC LED on the front panel is Off, indicating Local mode.

  • Page 54: Over Voltage Protection (Ovp)

    5.2.2. Constant Current Operation a) In constant current mode, the power supply regulates the output current at the selected value, while the voltage varies with the load requirement. b) While the power supply is operating in constant current mode, the CURRENT LED on the front panel illuminates.

  • Page 55: Under Voltage Limit (Uvl)

    5.3.3. Resetting the OVP Circuit To reset the OVP circuit after it activates: a) Reduce the power supply Output Voltage setting below the OVP set level. b) Ensure that the load and the sense wiring are connected properly. c) There are four methods to reset the OVP circuit. ...

  • Page 56: Output On/Off Control

    5.5.2. Resetting Activated Foldback Protection There are four methods to reset an activated Foldback protection. a) Press the OUT button. The power supply output is enabled and the Output Voltage and current will return to their last setting. In this method, the Foldback protection remains armed;...

  • Page 57: Enable/Disable Control Via Rear Panel J1 Connector

    5.8. Enable/Disable Control via Rear Panel J1 Connector Contacts 1 and 14 of J1 (Fig.4-4) serve as Output Enable/Disable terminals by switch or relay. This function is enabled or disabled by the SW1 Setup switch position 9. Refer to Table 5-2 for Enable/Disable function and SW1 setting. SW1-9 setting Enable/Disable Power supply...

  • Page 58: Safe Start And Auto-Restart Modes

    5.11. Safe Start and Auto-Restart Modes When turning on the power supply, it can start to its last setting of Output Voltage and Current limit with the output enabled (Auto-restart) or start with the output disabled (Safe mode). Press and hold the OUT button to select between Safe start and Auto-restart modes. The VOLTAGE display will continuously cycle between “SAF”...

  • Page 59: Over Temperature Protection (Otp)

    5.13. Over Temperature Protection (OTP) The OTP circuit shuts down the power supply before the internal components can exceed their safe internal operating temperature. When an OTP shutdown occurs, the display show “OTP” and the ALARM LED blinks. Resetting the OTP circuit can be automatic (non-latched) or manual (latched) depending on the Safe or Automatic restart mode.

  • Page 60: Series And Parallel Supplies

    6. SERIES AND PARALLEL SUPPLIES You may connect the outputs of Genesys™ power supplies together to produce: ▬ Voltages greater than any one supply rating (series connection). ▬ Plus and minus polarity (series connection). ▬ More current than any one supply rating (parallel connection).
  • Page 61 POWER POWER SUPPLY SUPPLY LOAD LOAD (*) Diodes are POWER POWER user supplied. SUPPLY SUPPLY Fig. 6-1: Series connection, local sensing Fig. 6-2: Series connection, remote sensing Remote programming in series operation for increased output voltage: Programming by external voltage: The analog programming circuits of this power supply are referenced to the negative Sense (-S) potential.
  • Page 62 6.1.2. Series Connection for Positive and Negative Output Voltage In this mode, two units are configured as a positive and negative output. Set the current limit of each power supply to the maximum that the load can handle without damage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start-up or in case one of the units shuts down.

  • Page 63: Parallel Operation

    6.2. Parallel Operation Up to four units of the SAME VOLTAGE and CURRENT RATING can be connected in parallel to provide up to about four times the output current capability of one supply. One of the units operates as a master and the remaining units are slaves. The slave units are analog programmed by the master unit.
  • Page 64 6.2.3. Setting up the Slave Units The slaves must always run in constant current (CC) mode. This is ensured by always setting the slave’s voltage limit higher than the actual output voltage and letting the J1-10 IPGM signal regulate their current setting. WARNING Failing to set the slave supply voltage setting high enough will cause the slave to go into constant voltage (CV) mode.
  • Page 65 6.2.6. Connection to the Load In parallel operation, power supplies can be connected in local or remote sensing. Refer to Fig. 6-4 and 6-5 for typical connections of parallel power supplies. The figures show connection of two units, however the same connection method applies up to 4 units. As short as possible Master Power Supply...

  • Page 66: Daisy-Chain For Shut-Off

    6.3. Daisy-Chain for Shut-Off It is possible to configure a multiple power supply system to shut down all the units when an “Output Off” command is sent or a fault condition occurs in one of the units. Setup switch SW1 position 5 should be set to its Down position to enable the Daisy-chain operation.
  • Page 67 6.4.1. Setting the Supplies for Advanced Parallel The front panel is used to set a power supply as an Advanced Parallel master or slave. To set the master, it is required to know how many parallel slaves will be tied to its output.
  • Page 68 6.4.4. To Release From Slave Mode Slave units can be released using the following procedure: Depress FINE button for 3 seconds. The current display changes to show the master or slave setting. Select “H1” mode using the CURRENT encoder. Depress FINE button again or wait 5 seconds. Turn the AC power Off and On to store the new setting.

  • Page 69: Remote And Analog Programming

    7. REMOTE AND ANALOG PROGRAMMING 7.1. Introduction The rear panel connector J1 allows the user to program the power supply output voltage and current limit with an analog device. J1 also provides monitoring signals for output voltage and output current. The programming range and monitoring signals range can be selected between 0-5V or 0-10V using the setup switch SW1.

  • Page 70: Remote Voltage Programming Of Output Voltage And Current Limit

    7.4. Remote Voltage Programming of Output Voltage and Current Limit CAUTION To maintain the isolation of power supply and prevent ground loops, use an isolated programming source when operating the power supply via remote analog programming at J1 connector. Perform the following procedure to set the power supply to Remote Voltage programming: a) Turn the power supply switch to Off.

  • Page 71: Resistive Programming Of Output Voltage And Current Limit

    7.5. Resistive Programming of Output Voltage and Current Limit For resistive programming, internal current sources, for output voltage and/or output current control, supply 1mA current through external programming resistors connected between J1-9 & 22 and J1-10 & 23. The voltage across the programming resistors is used as a programming voltage for the power supply.

  • Page 72: Remote Monitoring Of Output Voltage And Current

    J1 connector, rear panel view OUTPUT CURRENT OUTPUT VOLTAGE PROGRAMMING PROGRAMMING PROGRAMMING PROGRAMMING RESISTOR RESISTOR OPTIONAL SETS OPTIONAL SETS LOWER LIMIT LOWER LIMIT OPTIONAL SETS OPTIONAL SETS UPPER LIMIT UPPER LIMIT Fig.6-2: Remote resistive programming Fig 7-2: Remote resistive programming 7.6.

  • Page 73: Rs232 &Rs485 Remote Control

    8. RS232 & RS485 REMOTE CONTROL 8.1. Introduction This chapter describes the operation of the Genesys 10kw and 15kw power supplies via the serial communication port. Details of the initial set-up, operation via RS232 or RS485, the command set and the communication protocol are described in this chapter.

  • Page 74: Rear Panel Rs232/485 Connector

    8.2.5. Setting the Unit into Remote or Local Mode The unit will be put into Remote mode only via serial communication command. Commands that will put the unit into Remote mode are: PV n RMT n OUT n PC n (for n values see Tables 7-4, 7-5 and 7-6) There are two Remote modes: a) Remote: In this mode, return to local can be made by the front panel REM/LOC or via...

  • Page 75: Connecting Power Supplies To Rs232 Bus

    8.4. Connecting Power Supplies to RS232 Bus 8.4.1. Single Power Supply a) Select the desired interface RS232 or RS485 using rear panel setup switch SW1-6 (Section 0).  RS232: Down position  RS485: Up position b) Connect rear panel IN connector to the controller RS232 or RS485 port using a suitable shielded cable.

  • Page 76: Communication Interface Protocol

    8.4.2. Multi Power Supply Connection to RS232 or RS485 Bus Up to 31 units can be connected to RS232 or RS485 bus. The first unit connects to the controller via RS232 or RS485 and the other units are connected with RS485 bus. a) First unit connection: Refer to Section 8.4.1 for connecting the first unit to the controller.

  • Page 77: Error Messages

    8.5.5. Checksum The user may add a checksum (optional) to the end of the command. This ensures no data bits are corrupted by bad wires or noise. The checksum is “$” followed by two hex characters. If a command or a query has a checksum, the response will also have one. There is no CR between the command string and the “$”...

  • Page 78: Command Set Description

    8.7. Command Set Description 8.7.1. General Guide 1. Any command or argument may be in capital letters or small letters. 2. In commands with an argument, a space must be between the command and the argument. 3. For any command that sets a numeric value, the value may be up to 12 characters long.
  • Page 79 8.7.5. Output Control Commands Command Description Sets the output voltage value in Volts. The range of voltage value is described in Table 7- PV n 3. The maximum number of characters is 12. See the following examples for PV n format: PV 12, PV 012, PV 12.0, PV 012.00, etc…...
  • Page 80 Command Description Returns the setting “n” where “n” is the exact string in the user’s “UVL n”. When in Local UVL? mode, returns the last setting from the front panel in a 4 digit string. Sets the Auto-restart mode to ON or OFF. AST n AST 1 (or AST ON): Auto restart On.

  • Page 81: Global Output Commands

    8.8. Global Output Commands 8.8.1. Description Global commands are a way to quickly set all power supplies on the RS-232/485 bus to the same setting. For example, sending “GOUT OFF” is one way to turn a whole group of supplies OFF at nearly the same time. CAUTION After sending a global command, it is important that the controller wait 200 mSec before sending any more RS-232/485 messages.
  • Page 82 Table 8-6: Current programming range Model Minimum Maximum 7.5-1000 1000.0 10-1000 1000.0 12.5-800 800.0 20-500 500.0 25-400 400.0 30-333 333.0 40-250 250.0 50-200 200.0 60-167 167.0 80-125 125.0 100-100 100.0 125-80 80.0 150-66 66.0 200-50 50.0 250-40 40.0 300-33 33.0 400-25 25.0 500-20...

  • Page 83: Fast Queries

    8.9. Fast Queries These are commands that read a response very quickly from the power supply. They use unprintable character codes. They allow the power supply to avoid the normal command processing delays. The processing time for these queries is typically 2 mSec, so total query speed is 2 mSec plus the RS-232/485 transmission time.

  • Page 84: Status And Error Commands

    8.9.4. Service Request Messages A Genesys power supply can automatically send messages over the RS-232/485 lines when there is a change in operating mode or if a fault occurs. These messages are called Service Requests or SRQs. They are setup with the RS-232/485 status registers (see Section 8.11 and 8.12).

  • Page 85: Status, Error, And Srq Registers

    Refer to Fig. 8-7 for the Status and Error Registers Diagram. NOTE: these registers operate in a way that is similar to the IEEE-488 and SCPI registers (as used by the Genesys™ with the “-IEMD” option), but the structure and command set is different.
  • Page 86 Conditional Registers The fault Condition Register and the Status Condition Register are read only registers that the user may read to see the condition of the supply. Refer to Table 8-8 for description of the Fault Condition Register bits and Table 8-9 for the Status Condition register bits.
  • Page 87 A. Fault Enable Register (FENA nn, FENA?) The Fault Enable Register is set to the enable faults SRQs. Table 8-12: Fault Enable Register Enable Fault symbol Bit Set condition Bit reset condition bit name 0 (LSB) Spare bit SPARE User command: User command: “FENA nn”...

  • Page 88: Serial Communication Test Set-Up

    Local Mode 8.12. Serial Communication Test Set-Up Use the following instructions as basic set-up to test the serial communication operation. 8.12.1. Equipment: PC with Windows Hyper Terminal, software installed, Genesys Power supply, RS232 cable. 8.12.2. PC set-up: 2.1 Open Hyper Terminal…………………….New Connection 2.2 Enter a name...
  • Page 89 8.12.4. Communication Test: Select a power supply at address 6: PC: write: ADR 6 Power supply response: “OK” Command test: PC write: OUT 1 Power supply response: “OK” PC write: PV 5.0 Power supply response: “OK” PC write: PC 10.0 Power supply response: “OK”...

  • Page 90: Isolated Analog Programming Option

    Introduction Isolated Analog Programming is an internal option card for analog programming of the Genesys power supply series. The option is factory installed and cannot be obtained with IEMD or LAN Interfaces. Output Voltage and Current Limit can be programmed and read back through optically isolated signals which are isolated from all other ground references in the power supply.

  • Page 91: Isolated Programming & Monitoring Connector

    9.3. Isolated Programming & Monitoring Connector Refer to Table 9-1 for detailed description of the rear panel Isolated Programming & Monitoring connector. To provide the lowest noise performance, it is recommended to use shielded-twisted pair wiring. Refer to Fig.9-1 for description of the connector. Isolated programming plug P/N: MC1.5/8-ST-3.81, Phoenix.

  • Page 92: Setup And Operating Instructions

    9.4. Setup and Operating Instructions CAUTION To prevent damage to the unit, do not program the output voltage and current to higher then the power supply rating. 9.4.1. Setting up the power supply for 0-5/0-10V Isolated Programming and Monitoring Perform the following procedure to configure the power supply. a) Turn the power supply AC power switch to Off.

  • Page 93: Maintenance

    In case of failure, unusual or erratic operation of the unit, contact a TDK-Lambda Americas Inc. sales or service facility nearest you. Please refer to the TDK-Lambda Americas Inc. sales offices addresses listing on the back cover of this user manual.
  • Page 94 Table 10-1: Troubleshooting Guide SYMPTOM CHECK ACTION Is the AC power cord defective? Check continuity, replace if No output. All displays and indicators necessary. are blank. Is the AC input voltage within Check input AC voltage. range? Connect to appropriate voltage source.
