Specifications - NETGEAR N300 User Manual

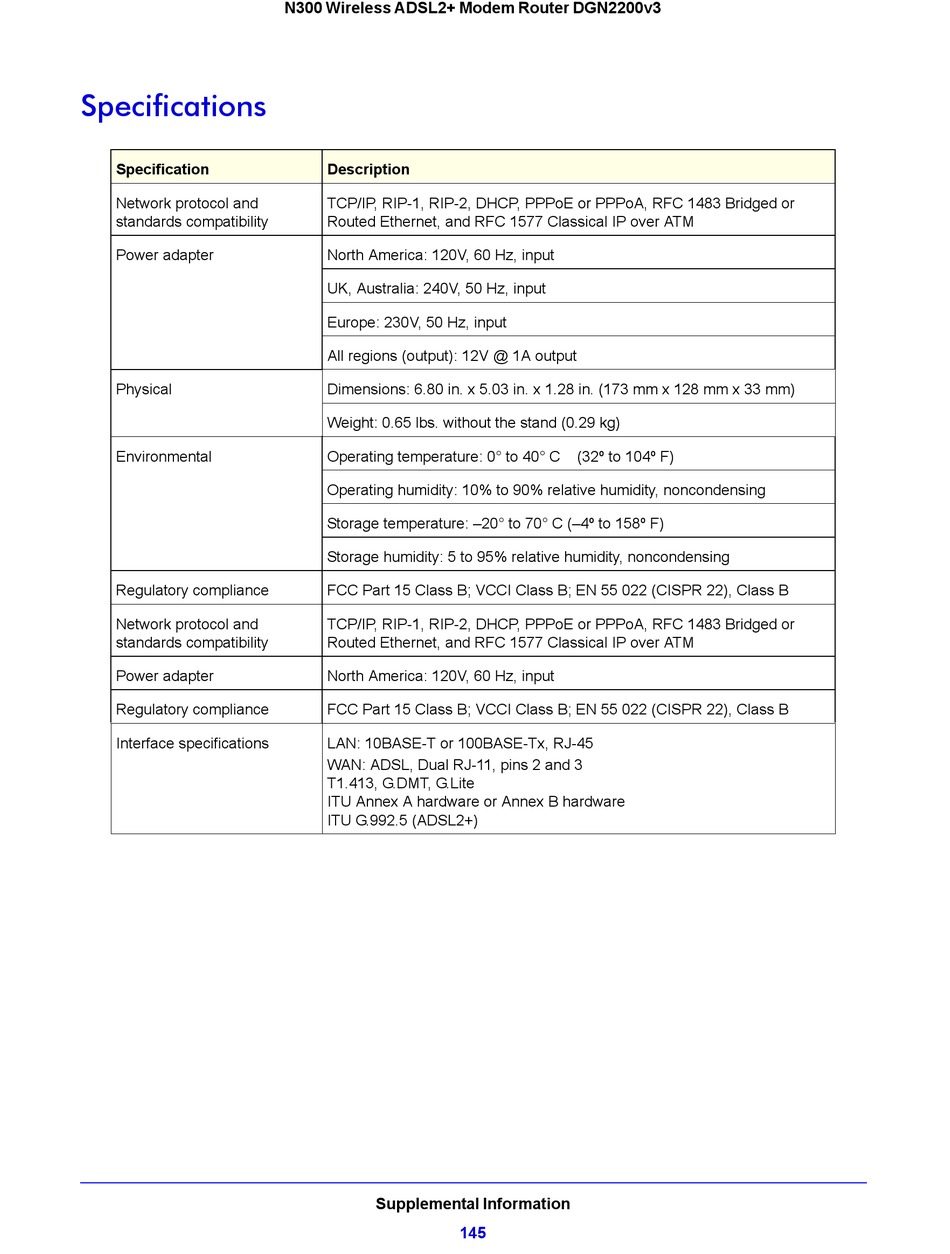

Specifications

Specification
Network protocol and
standards compatibility
Power adapter
Physical
Environmental
Regulatory compliance
Network protocol and
standards compatibility
Power adapter
Regulatory compliance
Interface specifications
N300 Wireless ADSL2+ Modem Router DGN2200v3
Description
TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or
Routed Ethernet, and RFC 1577 Classical IP over ATM
North America: 120V, 60 Hz, input
UK, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
All regions (output): 12V @ 1A output
Dimensions: 6.80 in. x 5.03 in. x 1.28 in. (173 mm x 128 mm x 33 mm)
Weight: 0.65 lbs. without the stand (0.29 kg)
Operating temperature: 0° to 40° C
Operating humidity: 10% to 90% relative humidity, noncondensing
Storage temperature: –20° to 70° C (–4º to 158º F)
Storage humidity: 5 to 95% relative humidity, noncondensing
FCC Part 15 Class B; VCCI Class B; EN 55 022 (CISPR 22), Class B
TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or
Routed Ethernet, and RFC 1577 Classical IP over ATM
North America: 120V, 60 Hz, input
FCC Part 15 Class B; VCCI Class B; EN 55 022 (CISPR 22), Class B
LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: ADSL, Dual RJ-11, pins 2 and 3
T1.413, G.DMT, G.Lite 
ITU Annex A hardware or Annex B hardware
ITU G.992.5 (ADSL2+)
Supplemental Information
145
(32º to 104º F)
