Crestron TPMC-12L
Operations Guide – DOC. 6686C

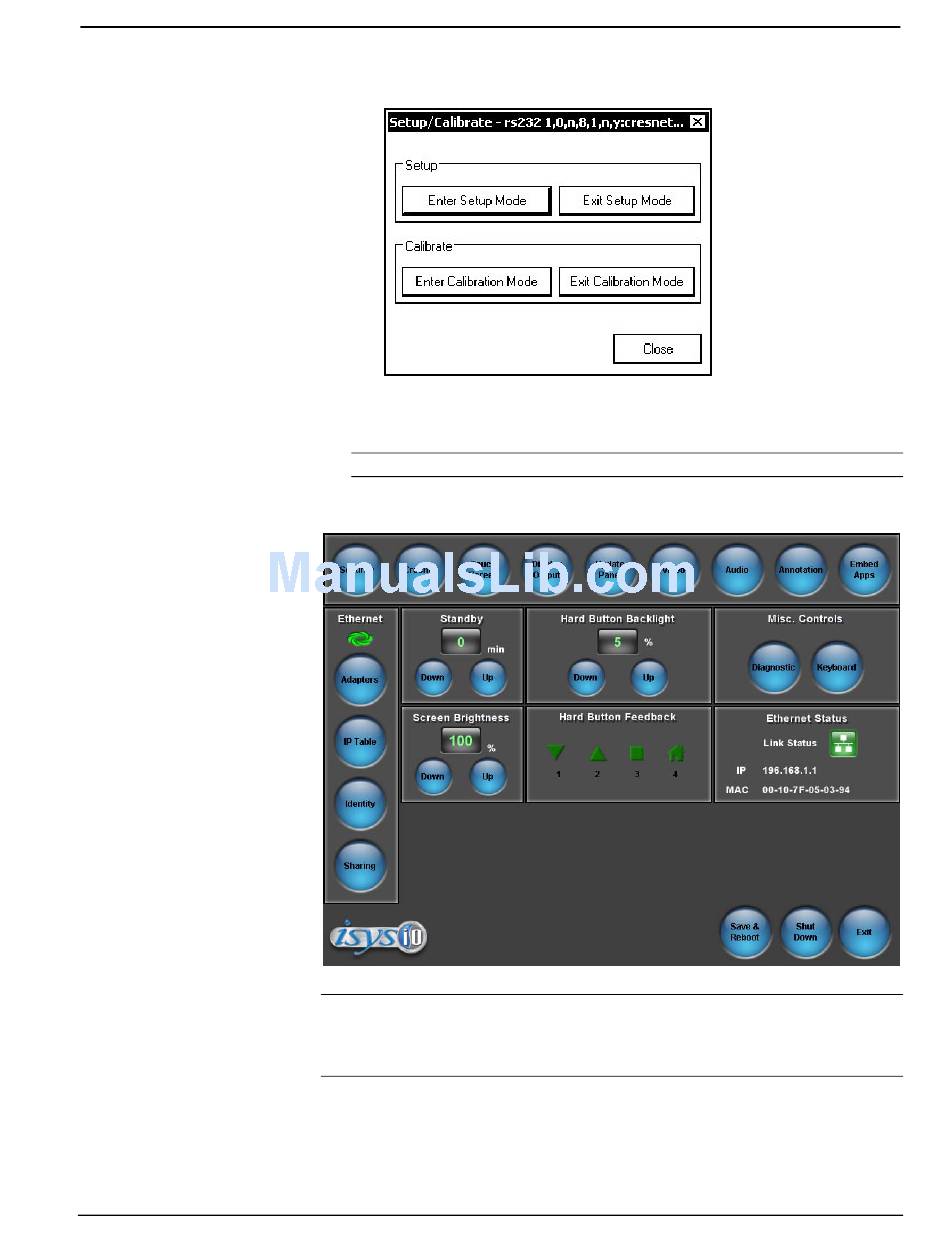

"Setup/Calibrate" Window
3. Select Enter Setup Mode. The setup menu will be displayed as shown in
the illustration below.
NOTE: Select Exit Setup Mode to exit the setup menu.
TPMC-12L Setup Menu
NOTE: Another way to enter the setup menu (after a project has been loaded) is to
touch the screen during boot up when you see the "Preparing to Load Project"
message. Maintain touch until after the countdown, when the message will change to
"Loading Setup Screen".
The setup menu provides access to all basic functions and parameters. It is divided
into a top row of setup buttons and Ethernet, Standby, Hard Button Backlight, Misc.
Controls, Screen Brightness, Hard Button Feedback, and Ethernet Status sections.
There are also buttons for Save & Reboot, Shut Down and Exit.
®
Isys
12" Wall Mount Touch Screen
®
12" Wall Mount Touch Screen: TPMC-12L • 17
