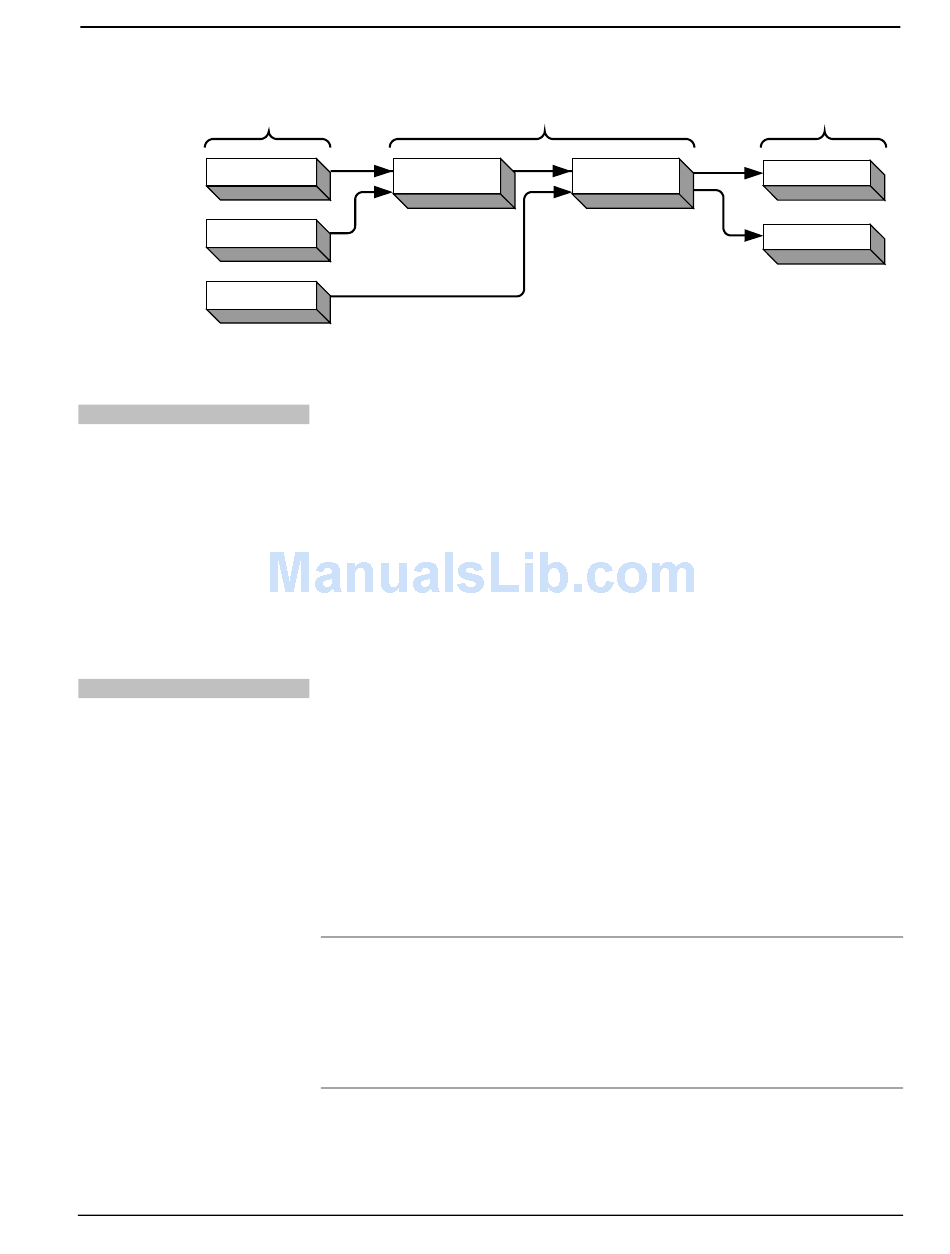

QM Network Topology
Origination Points
QM-TX
QM-FTDC
QM-WMC
Net ID
IP ID
Operations Guide – DOC. 6686C
QM
QM-MD7x2
QM

Identity Code

The Net ID of the TPMC-12L has been factory set to 03. The Net IDs of multiple
TPMC-12L devices in the same system must be unique. The Net ID is set using the
internal setup menu (refer to "Cresnet" which starts on page 20). Net ID may also be
set from a personal computer (PC) via Crestron Toolbox™ (refer to "Establishing
Communication" on page 55).
When setting the Net ID, consider the following:
•
The Net ID of each unit must match an ID code specified in the SIMPL
Windows program.
•
Each network device must have a unique Net ID.
For more details, refer to the Crestron Toolbox help file.
The IP ID is set within the TPMC-12L's table using Crestron Toolbox. For
information on setting an IP table, refer to the Crestron Toolbox help file. The IP IDs
of multiple TPMC-12L devices in the same system must be unique.
When setting the IP ID, consider the following:
•
The IP ID of each unit must match an IP ID specified in the SIMPL
Windows program.
•
Each device using IP to communicate with a control system must have a
unique IP ID.

Configuring the Touch Screen

NOTE: The only connection required to configure the touch screen is power
(supplied via Cresnet). Refer to "Hardware Hookup" which starts on page 41 for
details.
NOTE: When booting the TPMC-12L, the only USB devices supported are a
keyboard or mouse. Having a USB drive or hub connected will interfere with proper
booting of the touch screen.
®
Isys 12" Wall Mount Touch Screen
Midpoints
QM
QM-MD7x2
QM
®
12" Wall Mount Touch Screen: TPMC-12L • 15
Isys
Endpoints
QM
TPMC-12L
TPMC-12L
QM
