Summary of Contents for Schwinn 10 Series Bike

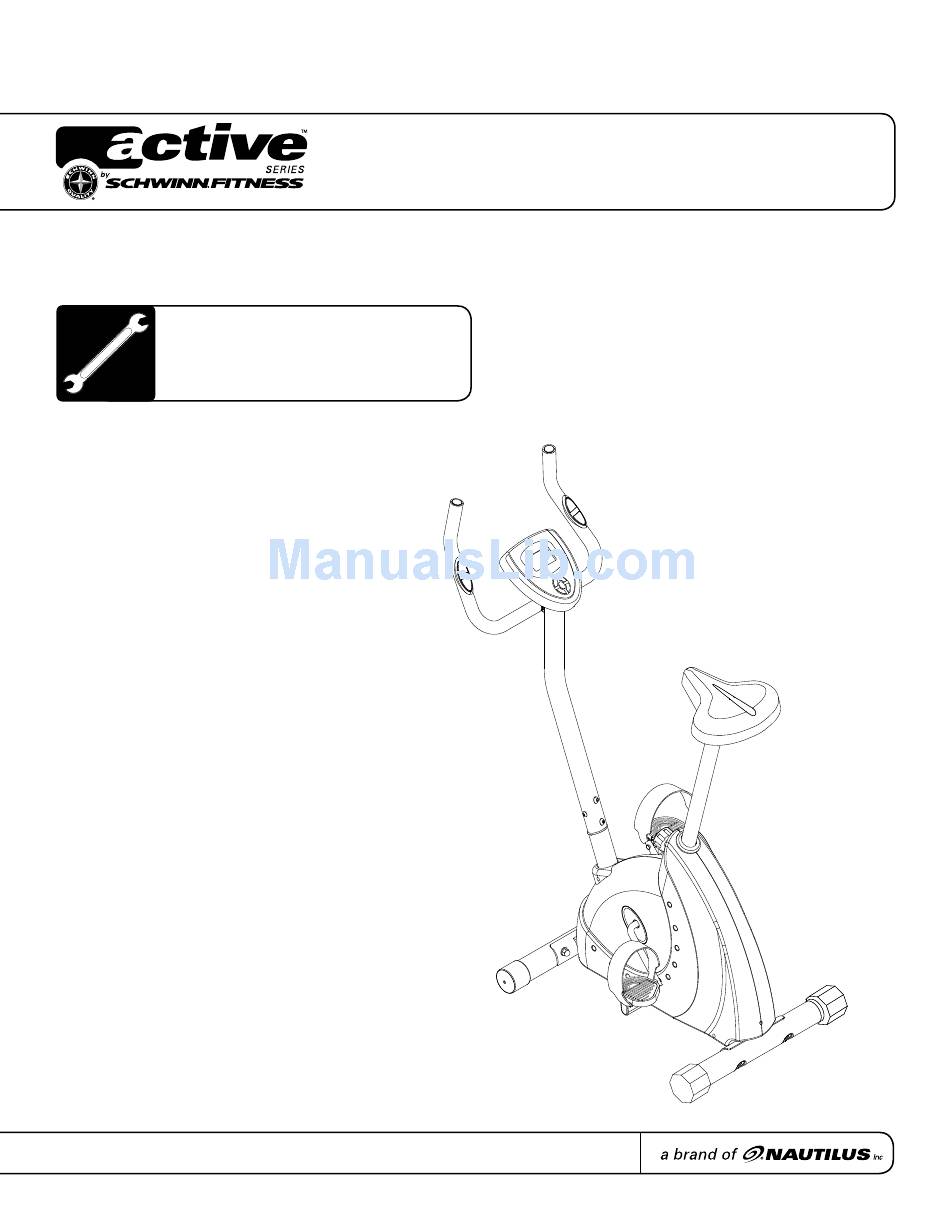

  • Page 1 10 Series Exercise Bike Assembly Manual Nautilus Bowflex Schwinn Fitness StairMaster Universal Nautilus Institute ® ® ® ® ® ® 001-7213-112008B...
  • Page 2: Table Of Contents

    Table of Contents Product Specifications ................2 Safety Warnings ..................3 Exploded Drawing .................4 Parts List ....................5 Hardware Guide ..................6 Assembly Steps ..................6 Contact Information ................15 Product Specifications Dimensions 48” L x 20” W x 51” H (122cm x 51cm x 130cm) Assembled Unit Weight 57.9 lbs (26.3 kg) Packaged Shipping weight...
  • Page 3: Safety Warnings

    Contact your doctor before using the machine again. • Examine this machine for loose parts or signs of wear. Pay special attention to the seat, pedals, and crank arms. Contact Nautilus Customer Service for repair information. Use only genuine Schwinn replacement parts supplied by ®...
  • Page 4: Exploded Drawing

    Exploded Drawing Note: Some component images are for general reference only and may not represent the actual shape or detail of the part. Assembly is unaffected. Assembly Manual...
  • Page 5: Parts List

    Parts List PARTS LIST Ref. Description Main Body Assembly Front Stabilizer Rear Stabilizer Console Mast Handlebar Console (Computer) Seat Post Seat Pad Left Pedal Right Pedal Seat Adjustment Knob Mast Base Seat Post Cover M5 x 10mm Round Head Phillips Screw M10 x 70mm Carriage Bolt Arc Washer ID 10.5;...
  • Page 6: Hardware Guide

    Hardware Guide Ref. Description Seat Post Cover Carriage Bolt M10 x 70mm 4pcs Arc Washer (ID 10.5mm; OD 25mm; 1.5mm) 4 pcs Acorn Nut M10 4pcs Hex Screw M8 x 15mm 4pcs Arc Washer (ID 8.5mm; OD 22mm; 1.5mm) 4pcs Handlebar adjustment knob with texture Tools required Hex Key L 6mm...
  • Page 7 Assembly Basic Assembly Principles Here are a few basic tips that will aid in the assembly process. By using these principles, you can simplify each process and save yourself extra time and effort. 1. To make the assembly process go faster, gather the pieces you need for each step and thoroughly read the assembly instructions for that step prior to starting assembly for the step.
  • Page 8: Assembly Steps

    Assembly Steps Step 1: Install Front and Rear Stabilizers 1-1: Secure Front Stabilizer (2) and Rear Stabilizer Parts: (3) to Main Body (1) using 2 Carriage Bolts (15), 2 • #2 - Front Stabilizer (Qty 1) Arc Washers (16), and 2 Acorn Nuts (17) for both •...
  • Page 9 Assembly Steps Step 2: Attach Front Post Parts: 2-1: Connect Console Mast Wire (20) to Main Frame Wire (21). • #20 - Console Mast Wire (Qty 1) • #21 - Main Frame Wire (Qty 1) 2-2: Attach Console Mast (4) to Main Body (1) using Arc •...
  • Page 10 Assembly Steps Step 3: Connect Console Assembly Parts: 3-1: Connect Console Mast Wire (20) top connector on the back of the Console. Push connected console wires • #20 - Console Mast Wire (Qty 1) down into the hole in the top of the Console Mast (4). •...
  • Page 11 Assembly Steps Step 4: Connect Contact HR and Handle Bar Parts: 4-1: Using C-ring (30), Hex Screw (27) and Knob (26), secure Handle Bar (5) to Console Mast (4). Tighten • #24 - Heart Rate Wire (Qty 1) the Adjustment Knob so that the Handlebar is •...
  • Page 12 Assembly Steps Step 5: Attach Seat Post and Seat Parts: 5-1: Slide Seat Post Cover (13) over Seat Post (7). Pull out Quick Release Knob (11) and insert Seat • #13 - Seat Post Cover (Qty 1) Post (7) into Main Body (1). Adjust seat height •...
  • Page 13 Assembly Steps Step 6: Attach Pedals to Cranks Parts: 6-1: Install the Left Pedal (9) to Left Crank (25). Install Right Pedal (10) to the Right Crank. • #9 - Left Pedal (Qty 1) • #10 - Right Pedal (Qty 1) Note: The Left Pedal has a left handed thread and •...
  • Page 14 Assembly Steps Step 7: Final Inspection 7-1: Tighten all hardware. 7-2: Read warnings on machine. Please read and refer to the Owner’s Manual for: • Operating Instructions • Maintenance Instructions • Warranty Information. Failure to visually check and test assembly before use can cause damage to the equipment. It can also cause serious injury to users and bystanders.
  • Page 15: Contact Information

    Contact Information UNITED STATES OFFICES: INTERNATIONAL OFFICES: For technical assistance and a list of distributors in your E-mail: customerservice@nautilus.com area, please call or fax one of the following numbers. TECHNICAL/CUSTOMER SERVICE INTERNATIONAL CUSTOMER SERVICE Phone: 800-NAUTILUS (800-628-8458) Nautilus International S.A. Fax: (877) 686-6466 Rue Jean Prouvé...
  • Page 16 ©2008. Nautilus, Inc. All rights reserved. Nautilus, the Nautilus Logo, Universal, Bowflex, StairMaster, Nautilus Institute and Active Series are either registered trademarks or trademarks of Nautilus, Inc. Schwinn and the Schwinn Quality Seal are registered trademarks. All other trademarks are owned by their respective companies.
