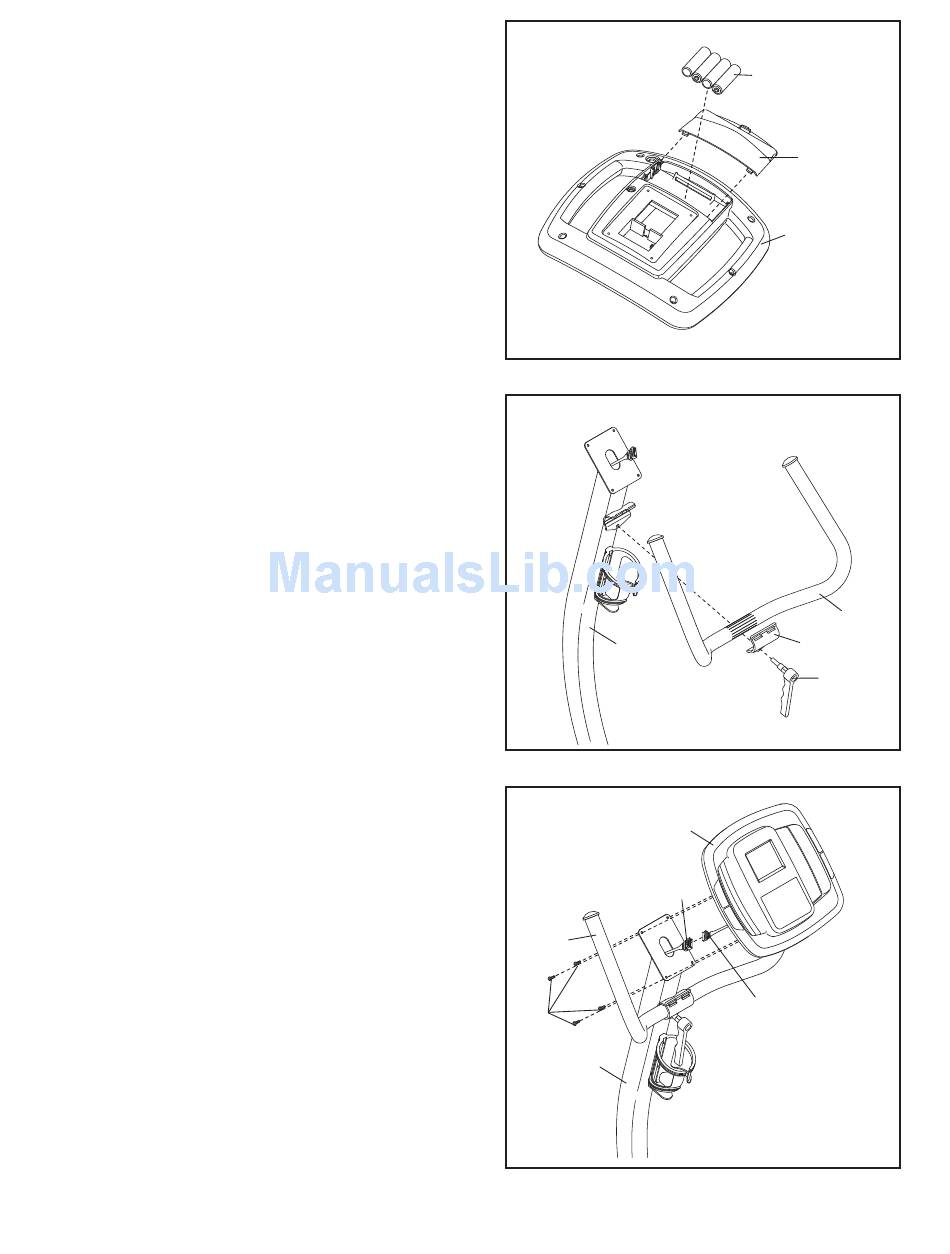

5. The Console (9) requires four 1.5V "D" batteries;
alkaline batteries are recommended. Press the tabs
on the battery cover and remove the battery cover.
Next, insert four batteries into the Console; make
sure that the batteries are oriented as shown by
the diagrams inside the Console. Then, reattach
the battery cover.
6. Attach the Handlebar (7) to the Handlebar Post (6)
with the Handlebar Clamp (22) and the Adjustment
Handle (10). Note: The Adjustment Handle works
like a spanner. Turn the Adjustment Handle clock-
wise, pull it away from the Handlebar, turn it coun-
terclockwise, push it toward the Handlebar, and
then turn it clockwise again. Repeat until the
Handlebar is tight.
7. While another person holds the Console (9) near
the Handlebar (7), connect the console wire har-
ness to the Upper Wire Harness (51). Insert the
excess wire downward into the Handlebar Post (6).
Attach the Console (9) to the Handlebar (7) with
four M4 x 16mm Screws (54). Be careful not to
pinch the wire harnesses.
5
6
6
7
7
54
6
7
Batteries
Battery
Cover
9
7
22
10
9
51
Console Wire
Harness
Avoid pinching the
wire harnesses
during this step
