2.2.3. Connecting the Scrap Accumulator and Drain

The scrap accumulator is designed to perform two basic functions:
1. It allows a method to discharge all the heavy solids out of the machine with each
wash cycle.
2. It provides accumulation capacity to allow draining the contents of one cycle
regardless of the discharge rate of the existing drain.
The drainpipe is connected to the scrap accumulator drain using a 2" no-hub connector as shown
in below.

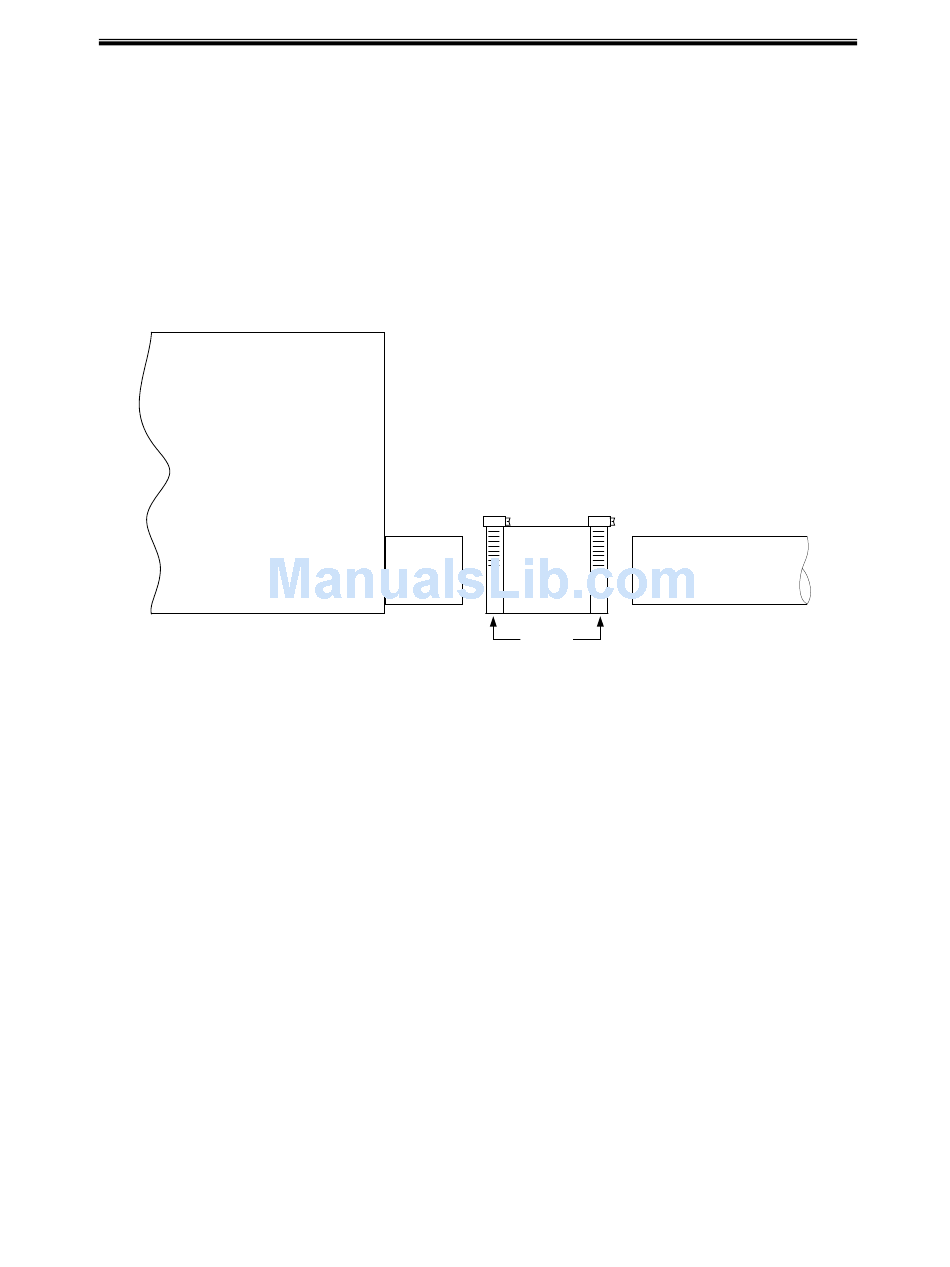

Figure 2.2.3
SCRAP ACCUMULATOR
MODEL EST SERVICE & PARTS MANUAL Rev. 1.08
2" DRAIN 2"
SLEEVE NO-HUB
HOSE
CLAMPS
Figure 2.2.3
Getting Started
2" DRAINPIPE
Page
5
