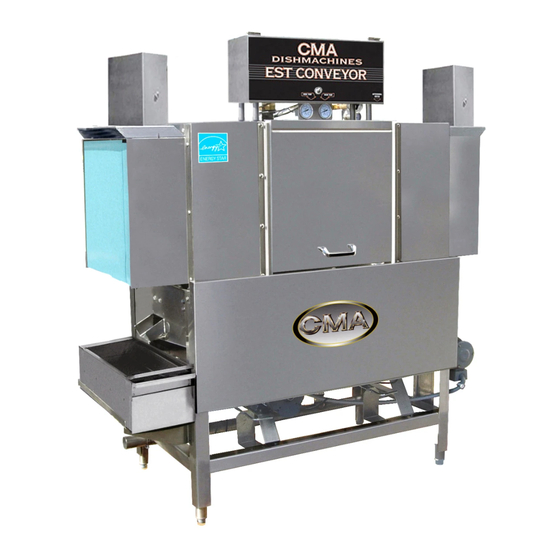

CMA Dishmachines EST-44 Quick Setup Instructions

EST-44/66
Quick Setup
Instructions
WARNING: Electrical and plumbing
connections need to be made by a
licensed service person and comply
with all Federal, State and Local
Health, Electrical, Plumbing and
Safety codes.
STEP
1
Connect Hot Water Supply Line to 1/2"Final Rinse
Water Inlet. SEE STEP 11.
STEP
2
FILL WATER
SUPPLY LINE
FILL WATER
SUPPLY LINE
1/2" INLET
Connect Fill Water Supply Line (120F/140F) to a 1/2"water
inlet to fill the machine.
STEP
3
VOLTS PHASE AMPS
208 1 76
240 1 84
208 3 50
240 3 54
HEATER 10kW
3 Phase: Connect the wire with the highest voltage
(stinger lead) to L2 on the contactor. L1, L2 and L3
must comply with all local and state electrical codes
for sizing of wire and circuit breaker protection.
Additional information can be found in the
Installation and Operation manual supplied with
machine.
PN: 10130.21

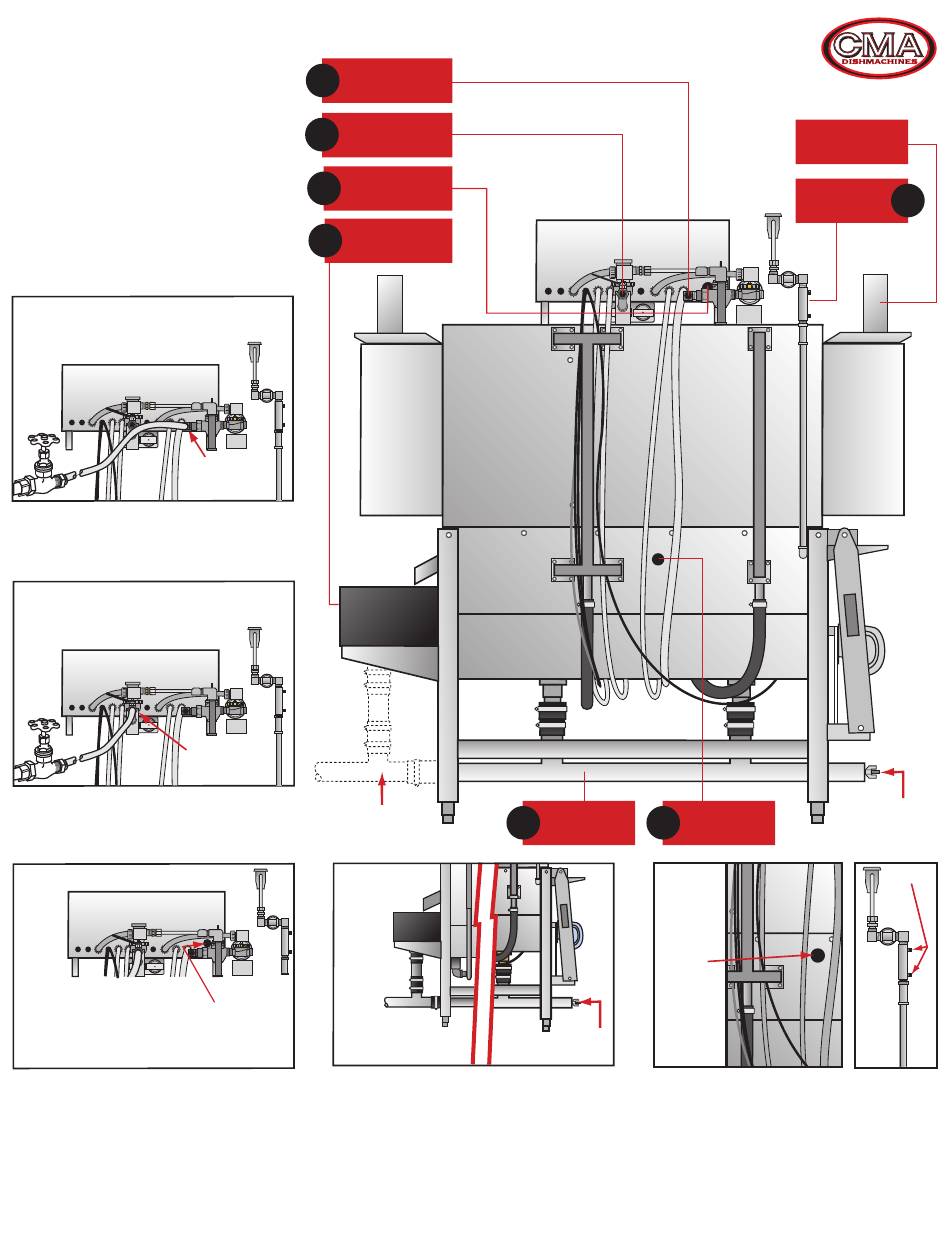

1
1/2" FINAL RINSE
WATER INLET
2 1/2" FILL
WATER INLET
ELECTRICAL
3
CONNECTION
4 SCRAP
TRAP DRAIN
HOT WATER
SUPPLY LINE
1/2" INLET
DRAIN PLUMBING
NOT SUPPLIED
STEP
4
ELECTRICAL
HARD WIRE
CONNECTION
POINT
Connect drain at either end of the horizontal
drain pipe from wash tank or scrap trap drain.
EST44
REAR VIEW
4 5
DRAIN PIPE
FITTING INLET
STEP
5
REMOVE
PLUG AND
INSTALL
DETERGENT
FITTING
2" HOLE
PLUG
Remove plug to install detergent fitting. Remove plugs from
the mixing chamber to install sani/rinse injection fitting
(sanitizer, detergent and rinse injection fittings provided by
dispenser manufacturer, CMA does not supply.)
OPTIONAL VENT
HOODS 4"X16"
MIXING
CHAMBER
DETERGENT
5
2" HOLE
PLUG
PLUGS
11-2016
