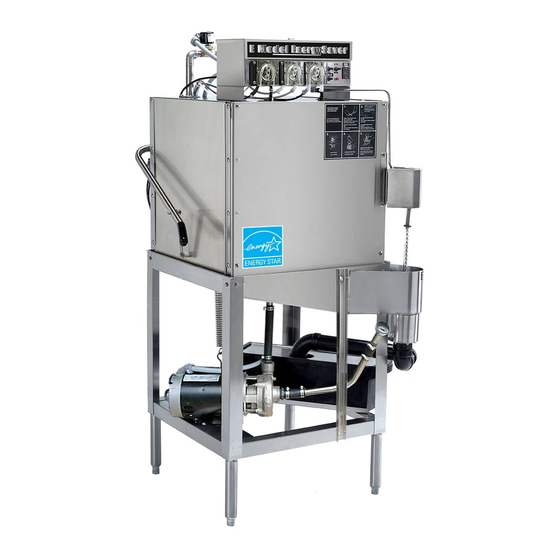

CMA Dishmachines EAH Parts Manual
Cma eah: hardware guide
Hide thumbs
Also See for EAH:
- Owner's manual (19 pages) ,
- Specifications (2 pages) ,
- Quick setup instructions (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for CMA Dishmachines EAH
Summary of Contents for CMA Dishmachines EAH
- Page 1 MODEL EAH/EC MODEL EAH / EC Parts Manual Revision 1.02 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E...
-
Page 2: Table Of Contents
Title Model EAH / EC Dishwasher PARTS MANUAL ... 3 Initial Parts Kit (Part # 01100.85) ... 3 Exploded View Drawings... 4 Cabinet Assembly... 4 Control Box ... 5 Plumbing System... 6 Pump Assembly... 7 Spray System Assembly ... 8 Sani Alarm System Assembly ... -
Page 3: Parts Manual
Title Model EAH / EC Dishwasher PARTS MANUAL Initial Parts Kit (Part # 01100.85) PART NO. 00100.00 Drain Ball Solenoid 120V 00115.06 Drain Sump Screen (A/C) 00120.00 Thermometer (Bi Metal) 00121.00 Drain Ball 00200.10 Pump Assy 110/220V 60Hz (Open) 00206.00 Pump Seal Kit 00304.06... -
Page 4: Exploded View Drawings
00101.10 Solenoid Bracket C RH 00101.20 Solenoid Bracket C LH Parts Manual Description Item PartNo 01558.10 Chem Tube Support Bracket eah 00427.00 Snap Bushing 375-4 00912.00 1/4-20 Nylon Lock Nut 00906.00 1/4-20 X 1/2 Hexhead Bolt 00924.00 1/4 SS Washer 01310.20... -
Page 5: Control Box
10-32 X 1 1/2 Panhead Bolt 00417.00 Peristaltic Pump Block 00416.00 Peristaltic Pump Motor 120/60 00918.00 10-32 X 1 1/2 Filister Bolt 00917.00 8-32 PM Nut 03470.01 Toggle Sw Moment 25 Flat Term 00414.86 Wiring Harness - EAH / EC Page 5 Rev 1.02 02/12/08... -
Page 6: Plumbing System
Title Model EAH / EC Dishwasher Plumbing System Item PartNo Description 03603.10 ½ Water Sol Valve 120v/60hz 00786.00 Water Sol Plunger G JE ¾ & ½ 03603.20 ½ Water Solenoid Bonnet 00738.10 Solenoid Coil JE 120V (¾ & ½) 00706.10 ¾... -
Page 7: Pump Assembly
Title Model EAH / EC Dishwasher Pump Assembly Item PartNo Description 00206.00 Pump Seal Kit 00201.00 Pump Motor 1Hp 115/208-230V 03222.05 Impeller (Universal) Open 03224.00 Pump Base 03226.00 Pump O Ring Gasket 04206.00 Pump Cover 50302.40 1 ¼ MIP X 1" Barb Fitting 50302.06... -
Page 8: Spray System Assembly
Title Model EAH / EC Dishwasher Spray System Assembly Item PartNo Description 00914.00 1/4-20 X 3/4 Hexhead Bolt 00924.00 1/4 SS Washer 00912.00 1/4-20 Nylon Lock Nut 00966.10 10-32 X 1/4 Hexhead SS Bolt 00341.20 Spray Arm Bearing (Welded) 00304.06 Spray Arm A &... -
Page 9: Sani Alarm System Assembly
Title Model EAH / EC Dishwasher Sani Alarm System Assembly Item PartNo Description 00400.00 Conduit 3/8 Sealtite 00401.00 St-3/8 Straight Connector 00402.00 St-90 Deg 3/8 Connector 00406.00 Control Box Light .5" Dia Red 00435.00 Squeeze Tube 8" Silicone 00521.00 Wire 18 Gauge Orange 00531.00... -
Page 10: Drain System Assembly
Title Model EAH / EC Dishwasher Drain System Assembly Item PartNo Description 00900.10 Cotter pin 1/8" X 1" 00927.00 8-32 Nylon Lock Nut 00110.07 Drain Ball Chain-12 Link 00902.00 8-32 X 1 1/4 Panhead Bolt 00922.00 1/4 Lock Star Washer 00121.20... -
Page 11: Door Actuator Assembly (Straight)
Door Handle EAH 01556.50 RH Door Handle Support Brckt 00603.07 Door Spring Extension Rod AB 00602.00 Door Spring 01506.30 Door A B C M CMA-44 01553.00 Door Handle Link 00606.00 Eye Bolt 5/16-18 X 8 1/2 00913.00 5/16-18 SS Nut 00926.00 5/16 SS Washer 00900.00... -
Page 12: Door Actuator Assembly (Corner)
Door Handle Mtg Plate-Long 00619.44 Door Handle Mtg Plate Short 00603.04 Door Spring Extension Rod (C) 00602.00 Door Spring 01506.30 Door A B C M CMA-44 01553.00 Door Handle Link 00606.00 Eye Bolt 5/16-18 X 8 1/2 00913.00 5/16-18 SS Nut 00926.00 5/16 SS Washer 13805.00... -
Page 13: Peristaltic Pump Assembly
Title Model EAH / EC Dishwasher Peristaltic Pump Assembly Item PartNo Description 00416.00 Peristaltic Pump Motor 120v/60hz 00417.00 Peristaltic Pump Block 00919.00 10-32 X 1 1/2 Panhead Bolt 00918.00 10-32 X 1 1/2 Filister Bolt 00418.00 Peristaltic Pump Cover 03415.40 Liquid Tight Fitting 1/4"...
