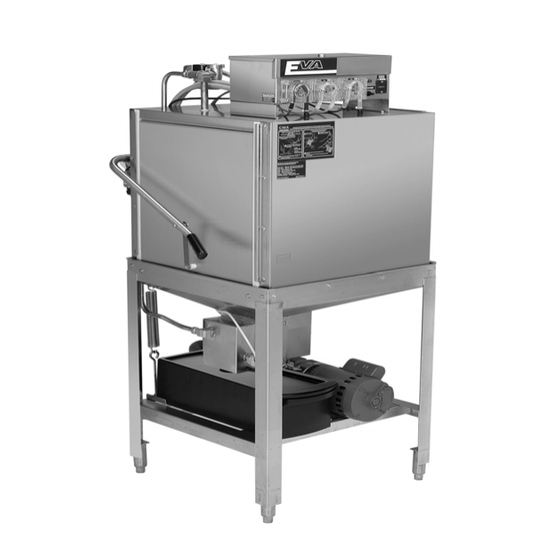

MODEL EVA
PARTS MANUAL
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com
Rev.1.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVA and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines EVA

Summary of Contents for CMA Dishmachines EVA

  • Page 1 MODEL EVA PARTS MANUAL Rev.1.03 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...

  • Page 2: Table Of Contents

    Cabinet Assembly for Corner EVA ..................6 1.3.3. Control Box Assembly ......................7 1.3.4. Door Actuator Assembly......................8 1.3.5. Door Actuator Assembly for Corner EVA ................9 1.3.6. Pump Assembly........................10 1.3.7. Plumbing System Assembly....................11 1.3.8. Spray System Assembly......................12 1.3.9.

  • Page 3: Model Eva

    Flex-Tight Fitting 03470.00 Toggle Switch, Momentary, Screw Terminals 03623.00 1/2” Vacuum Breaker Repair Kit, Watts 00425.51 Chemical Tubing, Blue 50 ft 00425.53 Chemical Tubing, Red 50 ft 00425.54 Chemical Tubing, White 50 ft Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 4: Optional Sani Alarm

    00435.00 Squeeze Tube, 8” 40126.10 #10 x 3/4" Sheet metal Screw 00521.00 Wire, 18 Gauge, Orange, 6 ft. 40127.00 Wall Anchors 00531.00 Wire, 18 Gauge, White, 6 ft. 00426.00 Y Hose Connector, 3/16” Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 5: Exploded View Drawings

    EZ Glide Door Guide, Plastic 00940.50 10-32 x 3/8" Truss Head Screw 01502.30 Pan / Stand 00120.50 Power Drain Cover 00905.00 1/4-20 x 1/2" Truss Head Bolt 01310.00 Bullet Foot 01554.30 Door Guide, SS Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 6: Cabinet Assembly For Corner Eva

    Parts Manual 1.3.2. Cabinet Assembly for Corner EVA ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 01506.30 Door 01577.20 Scrap Trap Drawer Molded 01530.40 Wrapper, Corner 01573.30 Sani Mount/Drain Lid 00115.85 Drain Screen 01577.10 Scrap Trap Body Molded 00906.00 1/4-20 x 1/2" Hex head Bolt 01505.04...

  • Page 7: Control Box Assembly

    Ice Cube Relay 00906.00 1/2-20 x 1/2" Hex Head Bolt 00562.00 Door Limit Switch, Roller Action 00924.00 1/4" SS Washer 00912.00 1/4-20 Nylon Lock Nut *See section 1.3.10 Peristaltic Pump Assembly for details Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 8: Door Actuator Assembly

    5/16-18 x 7” Eyebolt 01555.50 Door Handle Support, 1” (Left) 00913.00 5/16-18 Nut 00903.00 1/4-20 x 1-3/4” Hex Head Bolt 00926.00 5/16” SS Washer 00607.04 Door Handle Cap, 1” 00900.00 Cotter Pin 01552.00 Door Stop Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 9: Door Actuator Assembly For Corner Eva

    Parts Manual 1.3.5. Door Actuator Assembly for Corner EVA ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 00613.44 Door Handle EVA-C 01552.00 Door Stop 00619.34 Door Handle Mounting Plate, Long 00924.00 1/4" SS Washer 00619.44 Door Handle Mounting Plate, Short 00912.00 1/4-20 Nylon Lock Nut 00603.84...

  • Page 10: Pump Assembly

    00921.00 3/8-16 X 3/4 SS Hexhead Bolt 50302.40 1 ¼ MIP X 1" Barb Fitting 00924.00 1/4 SS Washer 1" MPT X 1" Barb PVC Sch Pump Assy 110/220V 60Hz 50302.06 00200.10 open Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 11: Plumbing System Assembly

    Water Solenoid Valve Plunger w/Spring 00421.51 6-32 x 1/4" Pan Head Screw 00706.10 Valve Plunger, Spring Only *Item 4 includes items 5, 7, 16 &17 **Item 10 includes items 9, 12, 13 & 14 Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 12: Spray System Assembly

    00304.20 Spray Arm, E-VA 00955.00 5/16-18 x 5/8” Thumbscrew 00308.20 Spray Arm End Plug, E-VA 50302.06 1" MPT X 1" Barb PVC Schedule 80 00305.02 Spray Manifold, E-VA 00302.84 Spray Base 0-Ring, E-VA Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 13: Power Drain Assembly

    00121.60 Drain Diaphragm 00109.82 Drain Actuator Shaft (V) 00912.00 1/4-20 Nylon Lock Nut 00104.82 50 RPM Drain Motor, 117V 60Hz 01521.82 Diaphragm Support Disk, 2” 00109.40 Shoulder Nut, SS 04806.00 #10 Brass Washer Page MODEL EVA PARTS MANUAL Rev. 1.03...

  • Page 14: Peristaltic Pump Assembly

    8-32 x 1/2" Pan Head Screw 00425.53 Chemical Tubing, Red 00435.00 Squeeze Tube 00425.54 Chemical Tubing, White 00419.00 2-Bearing Rotor Assembly 00443.00 Tube Stiffener 03426.00 Sight Glass 90 Deg Elbow 00435.11 Squeeze Tube 3” 00932.00 Twist tye Page MODEL EVA PARTS MANUAL Rev. 1.03...
