Model EST-Front Loader
Quick Setup
Instructions
WARNING: Electrical and
plumbing connections
need to be made by a
licensed service person
and comply with all
Federal, State and Local
Health, Electrical,
Plumbing and Safety
codes.
1
STEP
1
Connect dishmachine to hot water source
recommended 140 temperature (120
minimum temperature required).
PN: 10130.19
1/2" WATER
INLET
STEP
2
Connect a 2" drain pipe (not supplied)
from scrap accumulator to floor or wall
drain.

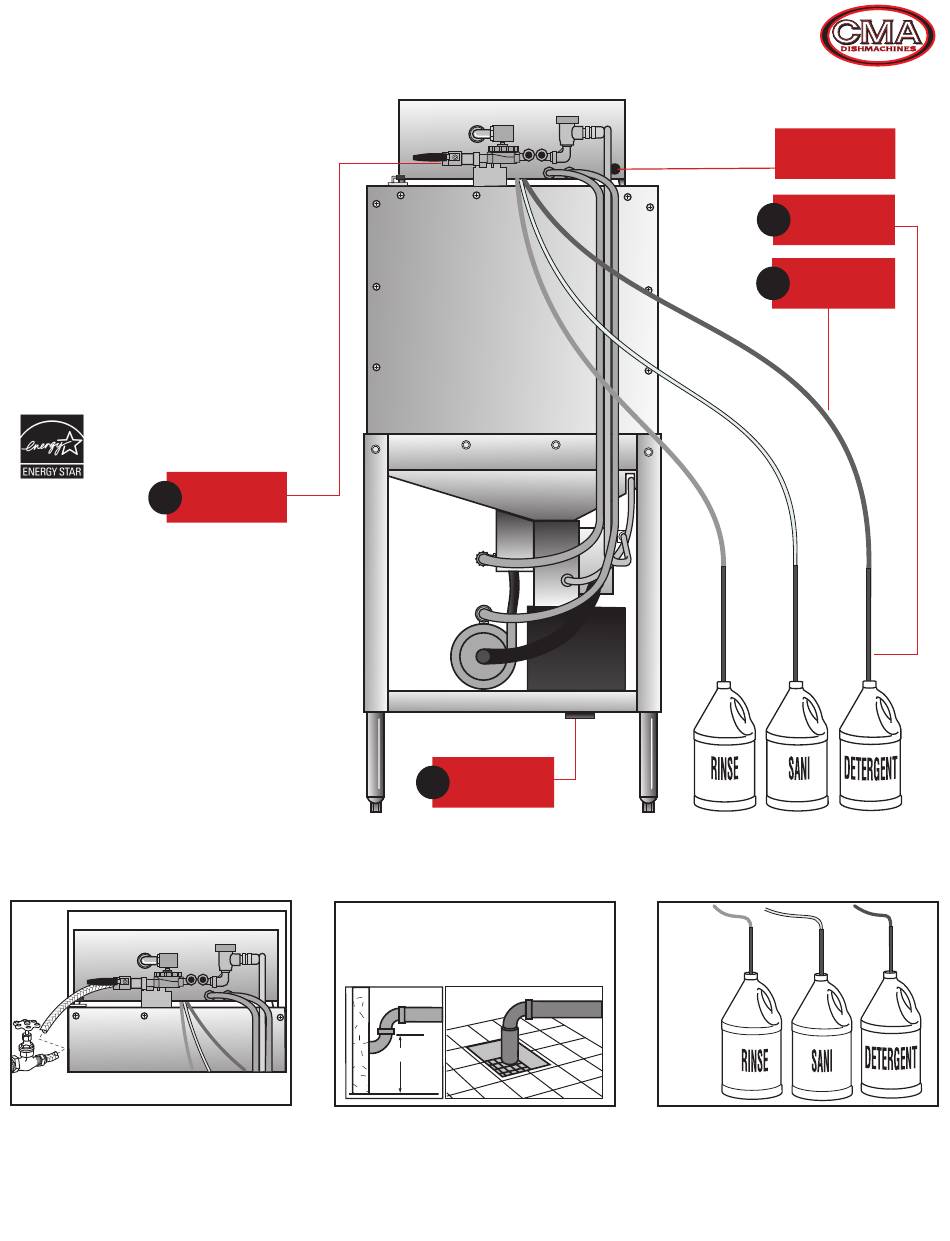

MODEL EST FRONT LOADER
REAR VIEW
2
2" DRAIN
OUTLET
8"
WALL
DRAIN
FLOOR DRAIN
HARD WIRE
POWER SUPPLY
TUBE
3
STIFFENER
3
CHEMICAL
TUBING
STEP
3
WHITE
BLUE
Insert tube stiffener with chemical tubing
into each corresponding chemical
dispenser.
RED
11-2016
