Summary of Contents for CMA Dishmachines EST-FL

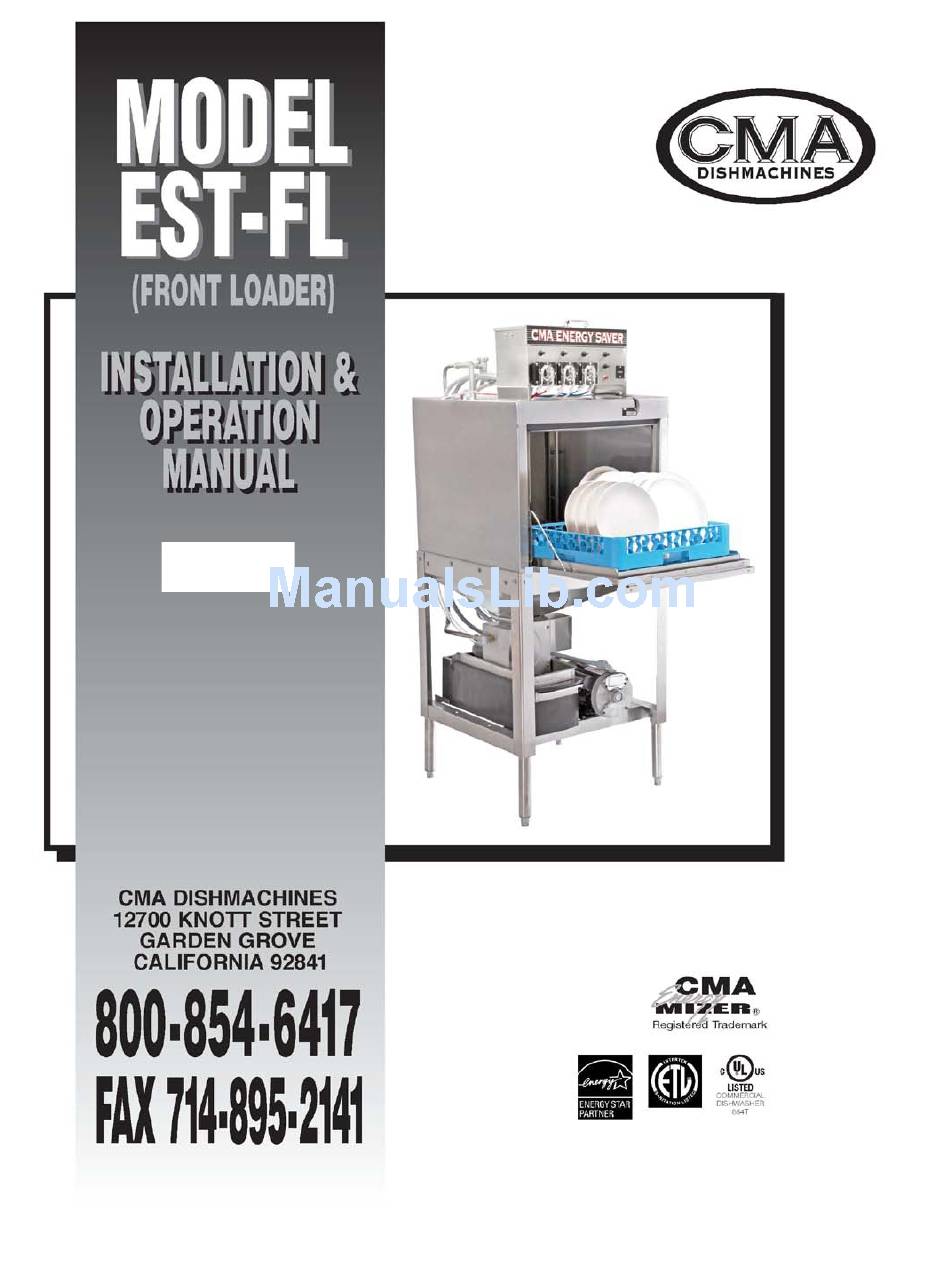

- Page 1 Rev.1.00...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Model EST-FL Front Loader 1. SPECIFICATIONS ..................2 EST-FL ............................2 2. GETTING STARTED ..................3 2.1. EST-FL F ................3 NTRODUCTION TO THE RONT OADER 2.2....................... 4 ECEIVING AND NSTALLATION 2.2.1. Electrical ..........................4 2.2.2. -
Page 3: Model Est-Fl Front Loader
65 PSIG are present, a pressure regulating valve must be installed in the water line to the dishmachine (by others). If flowing pressure is lower than 15 psi, improper machine operation may result. Page MODEL EST-FL Front Loader INSTALLATION & OPERATION MANUAL Rev. 1.00 10/26/15... -
Page 4: Getting Started

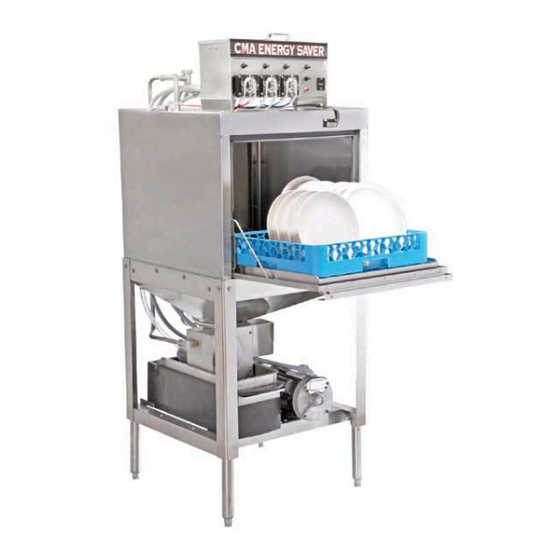

Its integrated scrap tray prevents food soil from entering the drain system. The EST-FL can be run at a rate of 40 racks/160 covers per hour and its all stainless steel construction assures longevity. -
Page 5: Receiving And Installation
Prior to installation make sure the electrical supply is compatible with the specifications on the machines data plate. The EST-FL Dishmachine must be hard wired directly to a dedicated 115 VAC, 60Hz circuit equipped with proper circuit protection. The main power switch is at the top-right side of the control box. -
Page 6: Connecting The Scrap Accumulator And Drain
Getting Started Notice to Plumber: The plumber connecting this machine is responsible for making certain that the water lines are THOROUGHLY FLUSHED OUT BEFORE connecting to the dishmachine Ask your municipal water supplier for details about your local water conditions prior to installation. Recommended water hardness is, 3 grains per gallon or less. -
Page 7: Operation
3.1. Initial Setup The CMA EST-FL Front Loader is equipped with switches to prime the peristaltic pumps at anytime when the master power switch on the back of the control box is "ON". Following completion of the installation, always fill the machine with water before starting the machine. -
Page 8: L Oader O Perational C Ycle
Operation 3.2. EST-FL Front Loader Operational Cycle The EST-FL Operational Cycle has a total cycle time of 90 seconds. The Timing Diagram and the steps listed below detail the individual functions that are executed during each Operational Cycle. Seconds: Cam 1... - Page 9 Operation 2. Cam switch 8 controls the pump motor. The pump motor comes ON at the beginning of the operational cycle and continues to run until the end of the drain function (controlled by cam switch 3), at which time it turns off for about eight seconds allowing time for the machine to refill enough to avoid running the pump dry before the pump motor restarts and runs to the completion of the operational cycle.
-
Page 10: Optional) Hot-Water Assurance Storage Tank
Operation 3.3. (Optional) Hot-Water Assurance Storage Tank The Optional Fully Integrated Hot-Water Assurance Storage Tank will not require its’ own power supply. The unit has been designed with a 115 volt, 1500 watt element which will only be active when the dishwasher is not in operation. This will assure consistent and continuous water temperature is being supplied to the dishmachine at all times. -
Page 11: Startup Procedures
When the door is lowered during a cycle, the machine will automatically stop running. The EST-FL Front Loader will run through the wash and rinse cycles automatically feeding the proper chemicals and then turn itself off. -
Page 12: Quick Service Trouble Shooting Guide
Operation 3.5. Quick service trouble shooting guide MODELS: EST-FL Front Loader TECHNICAL ISSUE Cause Solution Machine starts while doors are open Faulty magnetic door switch Replace the switch, P/N 00556.10 Faulty start/fill switch Replace the switch, P/N 03470.01 Faulty #1 micro switch (start/stop) Replace micro switch, P/N 00411.00... -
Page 13: Addendum For Machines Installed In The City Of Chicago
2. All models must have a City of Chicago approval data label affixed to the machine. 3. Chlorine sanitizer must be a minimum of 100 PPM. Page MODEL EST-FL Front Loader INSTALLATION & OPERATION MANUAL Rev. 1.00 10/26/15... -
Page 14: Electrical Diagram
Electrical Diagram 5. Electrical Diagram Page MODEL EST-FL Front Loader INSTALLATION & OPERATION MANUAL Rev. 1.00 10/26/15...
