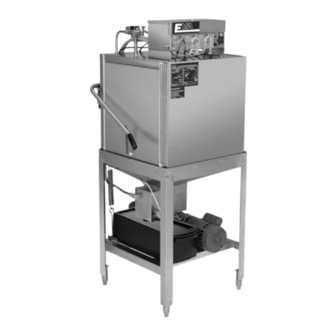

CMA Dishmachines EVA-AH-T Owner's Manual
Installation & operation
Hide thumbs
Also See for EVA-AH-T:
- Specifications (2 pages) ,
- Specifications (2 pages) ,
- Parts manual (14 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for CMA Dishmachines EVA-AH-T
Summary of Contents for CMA Dishmachines EVA-AH-T
- Page 1 Owner’s Manual Keep with machine for reference MODEL EVA INSTALLATION & OPERATION Rev 1.03 A C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 1 4 - 8 9 5 - 2 1 4 1...
-
Page 2: Table Of Contents
1. SPECIFICATIONS ...2 EVA... 2 2. GETTING STARTED ...3 2.1. EVA... 3 NTRODUCTION TO THE 2.2. ECEIVING AND NSTALLATION 2.2.1. Electrical ... 4 2.2.2. Plumbing... 4 2.2.3. Connecting the Scrap Accumulator and Drain... 5 3. OPERATION...6 3.1..6 NITIAL ETUP 3.2. -
Page 3: Model Eva
1. Specifications WATER CONSUMPTION PER RACK PER HOUR OPERATING CYCLE WASH TIME-SEC. RINSE TIME-SEC. DWELL TIME-SEC. TOTAL CYCLE OPERATING CAPACITY RACKS PER HOUR WASH TANK CAPACITY PUMP CAPACITY WATER REQUIREMENTS REQUIRED MINIMUM TEMP. RECOMMENDED TEMP. WATER INLET DRAIN CONNECTION DIMENSIONS DEPTH WIDTH HEIGHT... -
Page 4: Getting Started
A wiring diagram for the machine is located at the end of the manual. CMA warranties the workmanship of the machine. We are committed to providing the best machines and customer service in the food industry and your feedback is welcome. -
Page 5: Receiving And Installation
2.2. Receiving and Installation The dishwasher is shipped from the factory in a corrugated box on a wooden pallet. The installation guidelines give a systematic procedure for setting up the machine. Start by removing the dishmachine from the box. Remove the packaging, unwrap the machine... -
Page 6: Connecting The Scrap Accumulator And Drain
2.2.3. Connecting the Scrap Accumulator and Drain The scrap accumulator is designed to perform two basic functions: 1. It allows a method to discharge all the heavy solids out of the machine with each wash cycle. 2. It provides accumulation capacity to allow draining the contents of one cycle regardless of the discharge rate of the existing drain. -
Page 7: Operation
If a peristaltic pump does not turn when the micro switch is activated, loosen the screws on the cover plate. Technical personnel are available during normal business hours at CMA Headquarters should you, as an installer, have any questions please call 800-854-6417. -
Page 8: Startup Procedures
3.2. Startup Procedures Please follow the instructions given here before each shift to assure trouble free operation. 2. Drain the water if it is cold by activating the drain switch until all the water is out of the machine. 3. Check the drain screen and, if needed, remove it from the machine and clean it out. -
Page 9: Quick Service Guide
3.3. Quick service guide MODELS: VA AND EVA TECHNICAL ISSUE Cause Machine starts while doors are open Faulty magnetic door switch Faulty start/fill switch Faulty #1 micro switch (start/stop) Replace micro switch, P/N 00411.00 Continuous cycles Faulty start/fill switch Faulty door switch Delimer switch in wrong position Wash motor runs continuously Faulty delime switch... -
Page 10: Addendum For Machines Installed In The City Of Chicago
Addendum for Machines Installed in the City of Chicago "All food dispensing establishments using chlorine or other approved chemical sanitizers shall, at all times, maintain an adequate testing device." "Dishes and other eating and drinking utensils to be washed in a dishwashing machine shall be properly scraped and pre-rinsed and shall be stacked in racks or trays so as to avoid overcrowding, and so as to permit the wash and rinse waters to reach all surfaces of each utensil."... -
Page 11: Electrical Diagram
Electrical Diagram 5. Electrical Diagram Page MODEL EVA INSTALLATION & OPERATION MANUAL Rev. 1.03...
