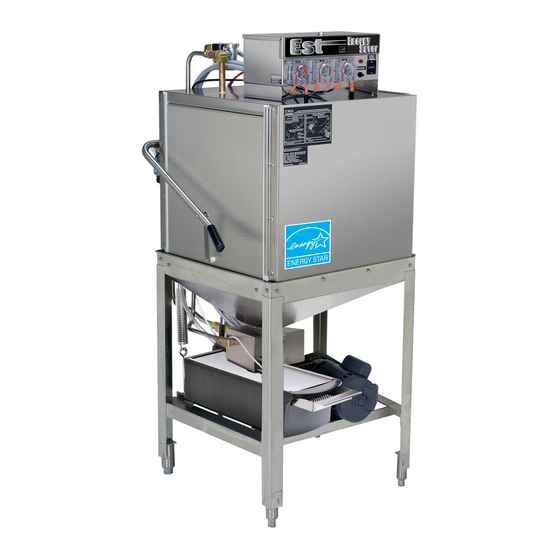

MODEL EST
PARTS MANUAL
Rev.1.05A
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EST-AH and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines EST-AH

Summary of Contents for CMA Dishmachines EST-AH

  • Page 1 MODEL EST PARTS MANUAL Rev.1.05A C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 1 4 - 8 9 5 - 2 1 4 1 www.cmadishmachines.com...

  • Page 2: Table Of Contents

    PARTS MANUAL ...3 1.1. (P/N 01100.84)... 3 NITIAL ARTS 1.2..4 PTIONAL LARM 1.3. XPLODED RAWINGS 1.3.1. Cabinet Assembly ... 5 1.3.2. Control Box Assembly ... 6 1.3.3. Door Actuator Assembly... 7 1.3.4. Door Actuator Assembly for Corner EST ... 8 1.3.5.

  • Page 3: Parts Manual

    1. Parts Manual 1.1. Initial Parts Kit (P/N 01100.84) 00104.82 50 RPM Drain Motor, 117V 60Hz 00105.82 Drain Spring (V) 00108.82 Drain Actuator Arm (V) 00109.82 Drain Actuator Shaft (V) 00115.85 Drain Screen 00120.00 Thermometer 00121.60 Drain Diaphragm 00200.10 Pump Assembly, 110/220V 60Hz 00206.00 Pump Seal Kit 00308.20...

  • Page 4: Exploded View

    1.2. Optional Sani Alarm ITEM DESCRIPTION REQ’D 00400.00 Conduit, 3/8” Sealtite 00401.00 S.T. 3/8” Straight Connector 00402.00 S.T. 90 Degree 3/8” Connector 00406.00 Control Box Light, .5” Diameter, Red 00435.00 Squeeze Tube, 8” 00521.00 Wire, 18 Gauge, Orange, 6 ft. 00531.00 Wire, 18 Gauge, White, 6 ft.

  • Page 5: Exploded View Drawings

    10-32 x 3/8" Truss Head Screw 00120.40 EVA Power Drain Cover 01310.00 Bullet Foot 01554.30 Ez Glide Door Guide SS 21 1/8 17554.00 CMA-180 Door Guide (EVA Tall) 01577.20 Scrap Trap Drawer MODEL EST PARTS MANUAL Rev. 1.05A ITEM DESCRIPTION REQ’D 01573.30 Sani Mount/Drain Lid 01577.10...

  • Page 6: Control Box Assembly

    1.3.2. Control Box Assembly Note: Wiring Harness (V)—Part Number 00414.82—(not shown). ITEM DESCRIPTION REQ’D 00449.00 Lock and Key 01504.09 Control Box Lid 00911.50 8-32 x 3/8” Pan Head Screw 00407.83 Timer, 90 Seconds 03470.01 Toggle Switch, Momentary 03408.50 Counter (Face Mount) 00907.00 6-32 x 1/2"...

  • Page 7: Door Actuator Assembly

    1.3.3. Door Actuator Assembly ITEM DESCRIPTION REQ’D 00613.32 Door Handle, 1” 01556.50 Door Handle Support, 1” (Right) 00603.07 Door Spring Extension Rod 00602.00 Door Spring 01506.30 Door (Cut Away) 01553.00 Door Handle Link 00606.00 5/16-18 x 7” Eyebolt 00913.00 5/16-18 Nut 00926.00 5/16”...

  • Page 8: Door Actuator Assembly For Corner Est

    1.3.4. Door Actuator Assembly for Corner EST ITEM DESCRIPTION REQ’D 00613.44 Door Handle EVA-C 00619.34 Door Handle Mounting Plate, Long 00619.44 Door Handle Mounting Plate, Short 00603.84 Extension Rod EVA-C 00604.84 Door Extension Link 00602.00 Door Spring 01506.30 Door 01553.00 Door Handle Link 00606.82 5/16-18 x 7”...

  • Page 9: Pump Assembly

    1.3.5. Pump Assembly Item PartNo Description 00206.00 Pump Seal Kit Pump Motor 1Hp 115/208- 00201.00 230V 03222.05 Impeller (Universal) Open 03224.00 Pump Base 03226.00 Pump O Ring Gasket 04206.00 Pump Cover 50302.40 1 ¼ MIP X 1" Barb Fitting 1" MPT X 1" Barb PVC Sch 50302.06 MODEL EST PARTS MANUAL Rev.

  • Page 10: Plumbing System Assembly

    1.3.6. Plumbing System Assembly ITEM DESCRIPTION REQ’D 00743.10 1/2" Tee, F x F x F 00745.00 1/2" Street Elbow 00747.10 1/2" x 5” Nipple 03603.10 1/2" Water Solenoid Assembly, J/E* 00707.00 1/2" Water Solenoid Repair Kit 00796.20 Flush Tube 00738.10 Water Solenoid Coil 00742.00 1/2"...

  • Page 11: Spray System Assembly

    1.3.7. Spray System Assembly ITEM DESCRIPTION REQ’D 00914.00 1/4-20 x 3/4" Hex Head Bolt 00924.00 1/4" SS Washer 00912.00 1/4-20 Nylon Lock Nut 00966.10 10-32 x 1/4" Hex Head SS Bolt 00341.20 Spray Arm Bearing, Welded 00304.06 Spray Arm A/C Series 00308.20 Spray Arm End Plug, E-VA 00305.20...

  • Page 12: Power Drain Assembly

    1.3.8. Power Drain Assembly ITEM DESCRIPTION REQ’D 00938.82 1/2" Drain Bushing, Brass (V) 03801.00 10-32 Lock Nut 00906.82 1/4-20 x 5/8” Socket Head Screw 00105.82 Drain Spring (V) 00108.82 Drain Actuator Arm 00109.82 Drain Actuator Shaft (V) 00104.82 50 RPM Drain Motor, 117V 60Hz 00109.40 Shoulder Nut, SS MODEL EST PARTS MANUAL Rev.

  • Page 13: Power Drain Retrofit Kit P/N 00104.95

    Parts Manual 1.3.9. Power Drain Retrofit Kit p/n 00104.95 Page MODEL EST PARTS MANUAL Rev. 1.05A...

  • Page 14: Peristaltic Pump Assembly

    1.3.10. Peristaltic Pump Assembly ITEM DESCRIPTION REQ’D 00416.00 Peristaltic Pump Motor 00417.00 Peristaltic Pump Block 00919.00 10-32 x 1-1/2” Pan Head Screw 00918.00 10-32 x 1-1/2” Fillister Head Screw 00418.00 Peristaltic Pump Block Cover 03415.50 Flex-Tight Fitting 00911.00 8-32 x 1/2" Pan Head Screw 00435.00 Squeeze Tube 00419.00...
