Summary of Contents for CMA Dishmachines EST-VL
- Page 1 Owner’s Manual M O D E L E S T - V L INSTALLATION & OPERATION Rev 1.00B C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T S T R E E T GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 14 - 8 9 5 - 21 4 1...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Model EST-VL 1. SPECIFICATIONS ..................2 EST-VL ............................2 2. GETTING STARTED ..................3 2.1. EST-VL ..................... 3 NTRODUCTION TO THE 2.1.1. Plumbing Chart ........................3 2.2....................... 5 ECEIVING AND NSTALLATION 2.2.1. Electrical ..........................5 2.2.2. -
Page 3: Specifications
MINIMUM CLEARANCE FOR FAN 15.2 cm 12” RECOMMENDED 30.4 cm ELECTRICAL RATINGS VOLTS AMPS 115 (1 phase) DISHMACHINE 240 (3 phase) BOOSTER HEATER WASH PUMP MOTOR 1 HP BOOSTER HEATER 12KW SHIPPING WEIGHT 400# Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A... -
Page 4: Getting Started

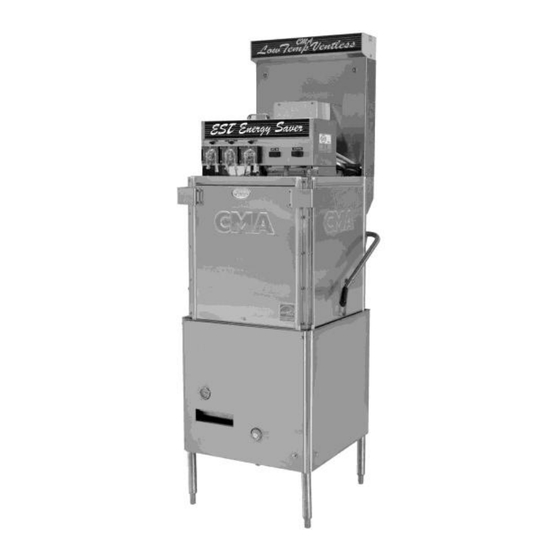

Getting Started 2. Getting Started 2.1. Introduction to the EST-VL 2.1.1. Plumbing Chart Cold Solenoid Valve Condenser Wash Pump Booster Heater Hot Solenoid Valve Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A... - Page 5 Its integrated scrap tray prevents food soil from entering the drain system. The EST-VL can be run at a rate of 30 racks/120 covers per hour and its heavy-duty stainless steel construction assures long life and years of trouble free operation.
-
Page 6: Receiving And Installation
Prior to installation make sure the electrical supply is compatible with the specifications on the machines data plate. The EST-VL dishmachine and the booster heater must be hard wired directly to a proper dedicated 115 VAC, 60Hz and 240VAC,60Hz circuits equipped with proper circuit protection. The main power switch is at the top-right side of the control box. - Page 7 (by others). If flowing pressure is lower than 15 psi, improper machine operation may result. The EST-VL Dishmachine has a 2” drain. The following section explains how to connect the drain. Notice to Plumber: The plumber connecting this machine is responsible for making certain that the water lines are THOROUGHLY FLUSHED OUT BEFORE connecting to the dishwasher Ask your municipal water supplier for details about your local water conditions prior to installation.
-
Page 8: Connecting The Scrap Accumulator And Drain
(see red line on the photo) and then mount it on the tray track using the same bolts, washers and lock nuts used for straight application. Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A... - Page 9 Getting Started Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A...
-
Page 10: Operation
Technical personnel are available during normal business hours at CMA Headquarters should you, as an installer, have any questions, please call 800-854-6417. The chemicals and water level must be programmed by a qualified chemical specialist. Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A... -
Page 11: Startup Procedures
If the doors are lifted during a cycle, the machine will automatically stop running. The EST-VL will run through the wash and rinse cycles automatically feeding the proper chemicals and then turn itself off. In an emergency you can turn off the machine by turning off the master switch located on the side of the control box. -
Page 12: Quick Service Guide
Faulty ice cube relay (yellow relay) Replace relay, P/N 00636.00 Ventless feature not working Replace if faulty properly Check exhaust fan Assure 6” clearance for fan Check cam timer setting Change the setting Faulty #9 micro switch Replace micro switch Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A... -
Page 13: Addendum For Machines Installed In The City Of Chicago
Getting Started Addendum for Machines Installed in the City of Chicago "All food dispensing EST-VL establishments using chlorine or other approved chemical sanitizers shall, at all times, maintain an adequate testing device." "Dishes and other eating and drinking utensils to be washed in a dishwashing machine shall be... -
Page 14: Product Enhancement
PRODUCT ENHANCEMENT Effective Date: August 2021 Subject: Leaking sanitizer chemical injection point EST-VL Chemical Line single injection Why did we make this enhancement? Over time we have found sanitizer leaks that aren't quickly addressed cause damage to the bottom of the internal sump. -
Page 15: Electrical Diagram
Electrical Diagram 6. Electrical Diagram POWER 230 VAC 3 Phase Page MODEL EST-VL INSTALLATION & OPERATION MANUAL Rev. 1.00A...
