Ipsec (Ip Security Protocol) - Billion Router User Manual

VoIP/(802.11g) ADSL2+ (VPN) Firewall Router

IPSec (IP Security Protocol)

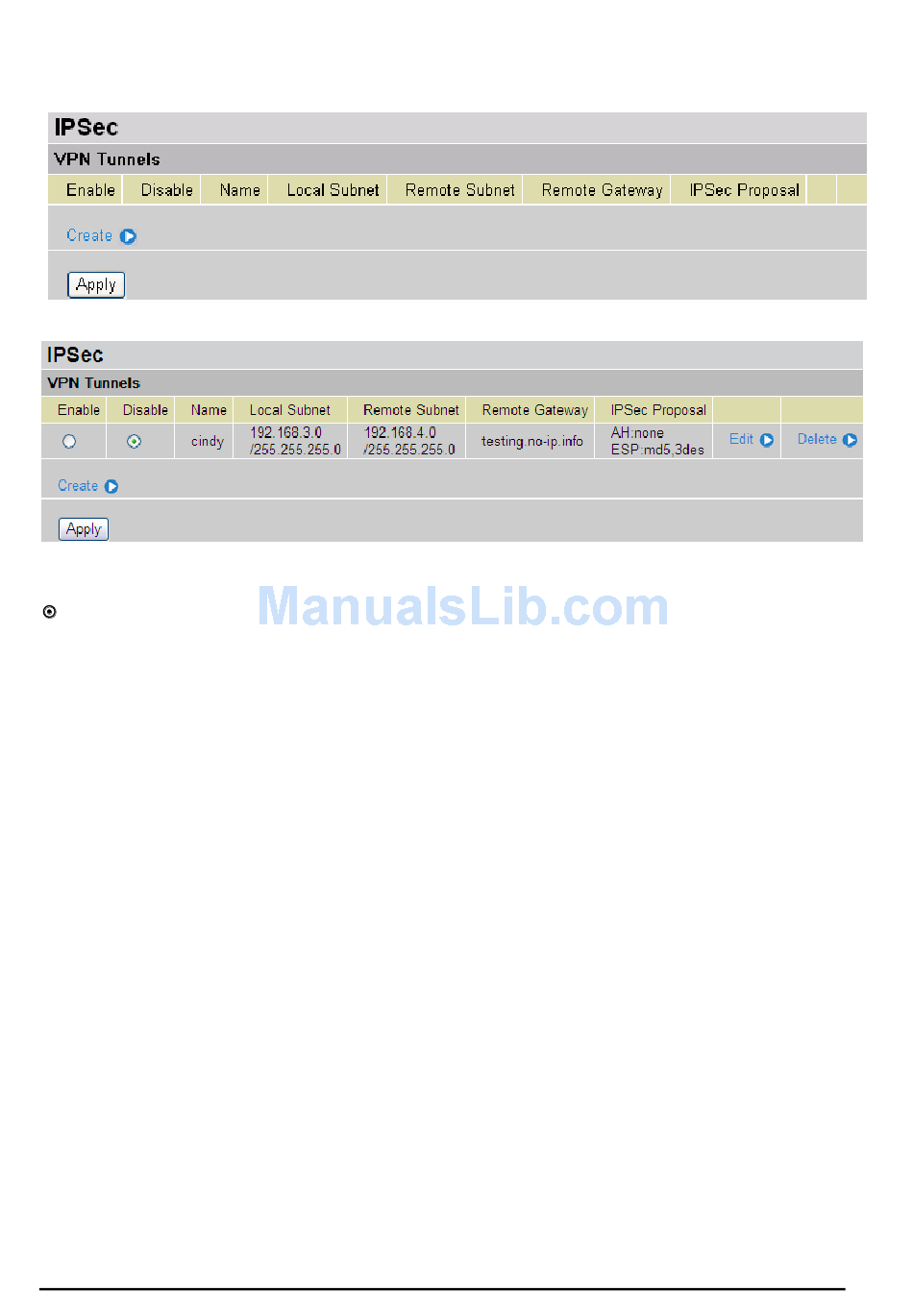

Click Create to create a new IPSec VPN connection account.
After you have created the IPSec connection, account information will be displayed. (See example
above).
Enable / Disable: This function activates or deactivates the IPSec connection. To wish interrupting
the tunnel, check Disable radio button and click Apply button to deactivate the connection.
Name: This is the user-defined name of the connection.
Local Subnet: Displays IP address and subnet of the local network.
Remote Subnet: Displays IP address and subnet of the remote network.
Remote Gateway: This is the IP address or Domain Name of the remote VPN device that is connected
and established a VPN tunnel.
IPSec Proposal: This is selected IPSec security method.
82
Chapter 4: Configuration
