Configuring PC in Windows 95/98/ME
1.
Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and choose the Configuration tab.
2.
Select TCP / IP -> NE2000 Compatible, or the name of any
Network Interface Card (NIC) in your PC. (See Figure 3.9)
3.
Click Properties.
4.
Select the IP Address tab. In this page, click the Obtain an IP
address automatically radio button. (See Figure 3.10)
5.
Then select the DNS Configuration tab. (See Figure 3.11)
6.
Select the Disable DNS radio button and click OK to finish
the configuration.
Chapter 3: Basic Installation
VoIP/(802.11g) ADSL2+ (VPN) Firewall Router

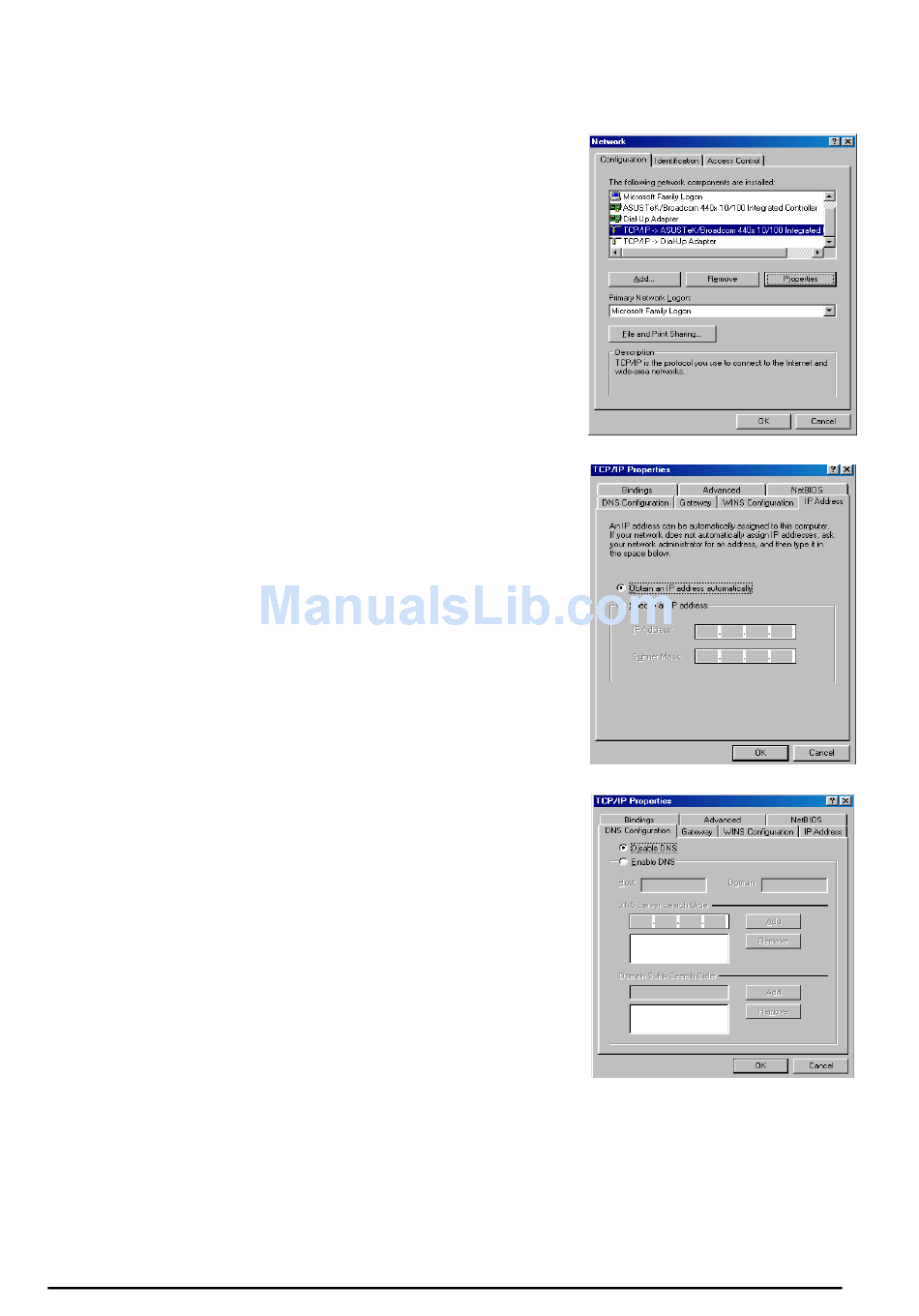

Figure 3.9: TCP / IP
Figure 3.10: IP Address
Figure 3.11: DNS Configuration
15
