VoIP/(802.11g) ADSL2+ (VPN) Firewall Router

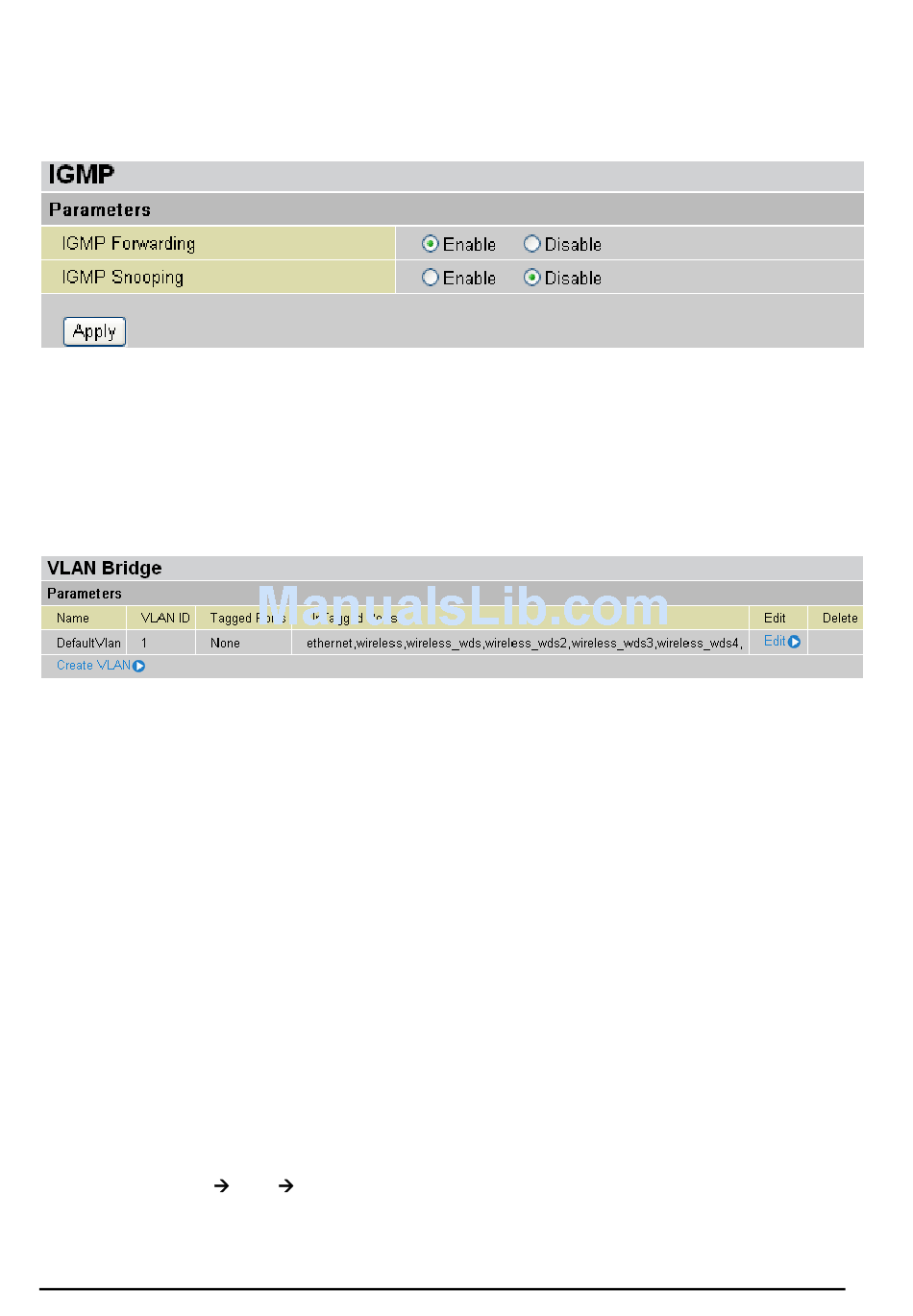

IGMP
IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast
group.
IGMP Forwarding: Accepting multicast packet. Default is set to Enable.
IGMP Snooping: Allowing switched Ethernet to check and make correct forwarding decisions. Default
is set to Disable.
VLAN Bridge
This section allows you to create VLAN group and specify the member.
Edit: Edit your member ports in selected VLAN group.
Create VLAN: To create another VLAN group.
Advanced VLAN Setup Example (Triply Play)
VLAN_data:
Ethernet Port 1, Wireless and Wireless WDS are reserving for Internet
- On Ethernet port 1 I also need VC 0/40 bridged.
VLAN_Vedio
Ethernet ports: 2, 3 and 4:
- 0/33 Bi-directional IP
- 0/34 Video
- 0/35 Video
- 0/36 Video Subscriber Services (EPG, EAS, etc.)
- 0/37 Video
- 0/38 Video
- 0/39 Spare
Step 1: Setup Member Ports
Go to Configuration
LAN
Bridge Interface.
You can setup member ports for each VLAN group under Bridge Interface section. From the example, two
VLAN groups need to be created.
Ethernet: P1 (Port 1)
143
