Configuring PCs in Windows 2000

1.
Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and Dial-up Connections.
2.
Double-click Local Area ("LAN") Connection. (See Figure
3.5)
3.
In the LAN Area Connection Status window, click
Properties. (See Figure 3.6)
4.
Select Internet Protocol (TCP/IP) and click Properties.
(See Figure 3.7)
5.
Select the Obtain an IP address automatically and Obtain
DNS server address automatically radio buttons. (See
Figure 3.8)
6.
Click OK to finish the configuration.
Chapter 3: Basic Installation
VoIP/(802.11g) ADSL2+ (VPN) Firewall Router

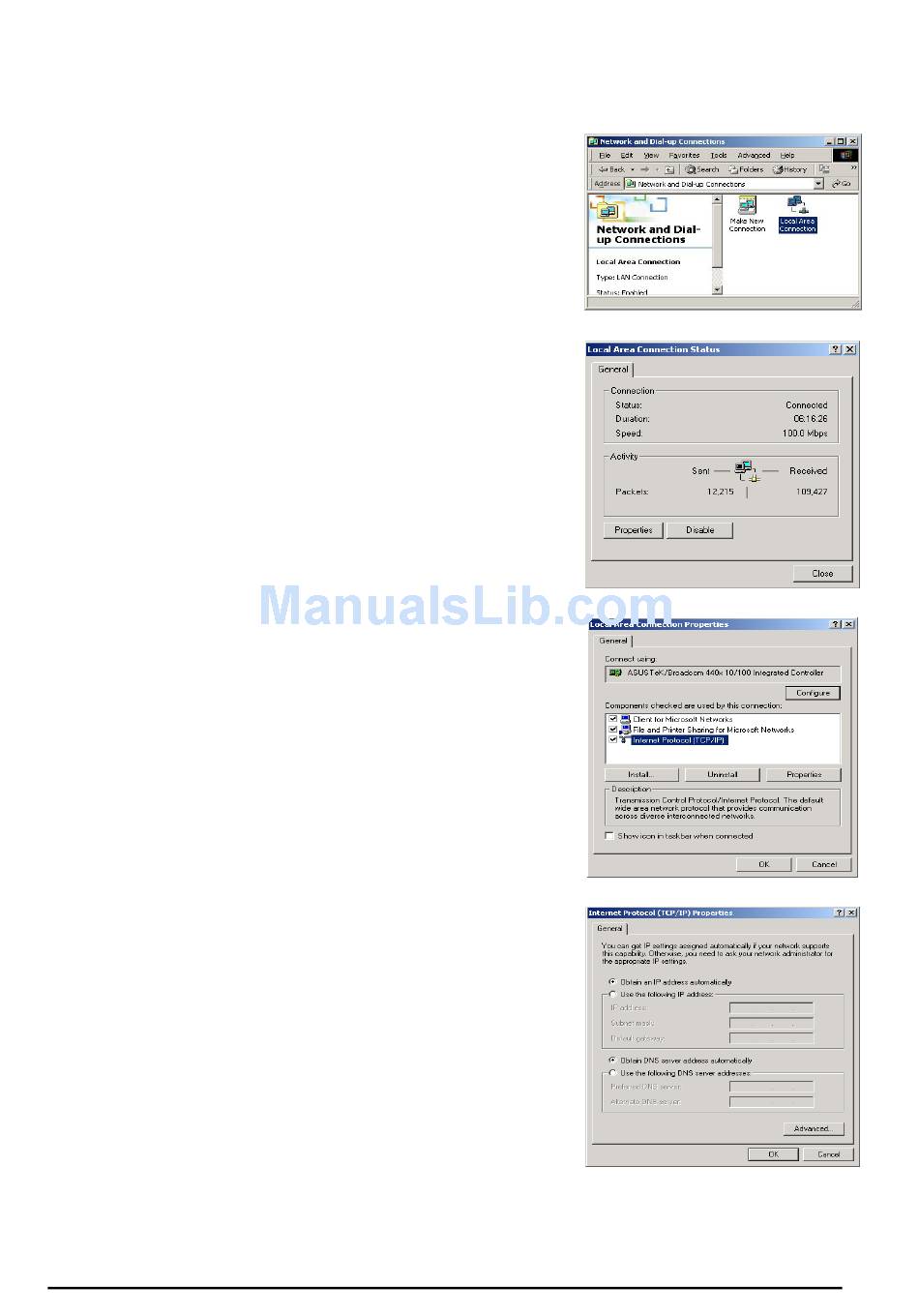

Figure 3.5: LAN Area Connection
Figure 3.6: LAN Connection Status
Figure 3.7: TCP / IP
Figure 3.8: IP Address & DNS
Configuration
14
