Configuration
When you click this item, you get following sub-items to configure the ADSL router.
- LAN, Wan, System, Firewall, VPN, VoIP, QoS, Virtual Server, Time Schedule and Advanced
These functions are described below in the following sections.
LAN - Local Area Network
Here are the items within the LAN section:
Wireless, Wireless Security, Wireless Client Filter, Port Setting
Bridge Interface

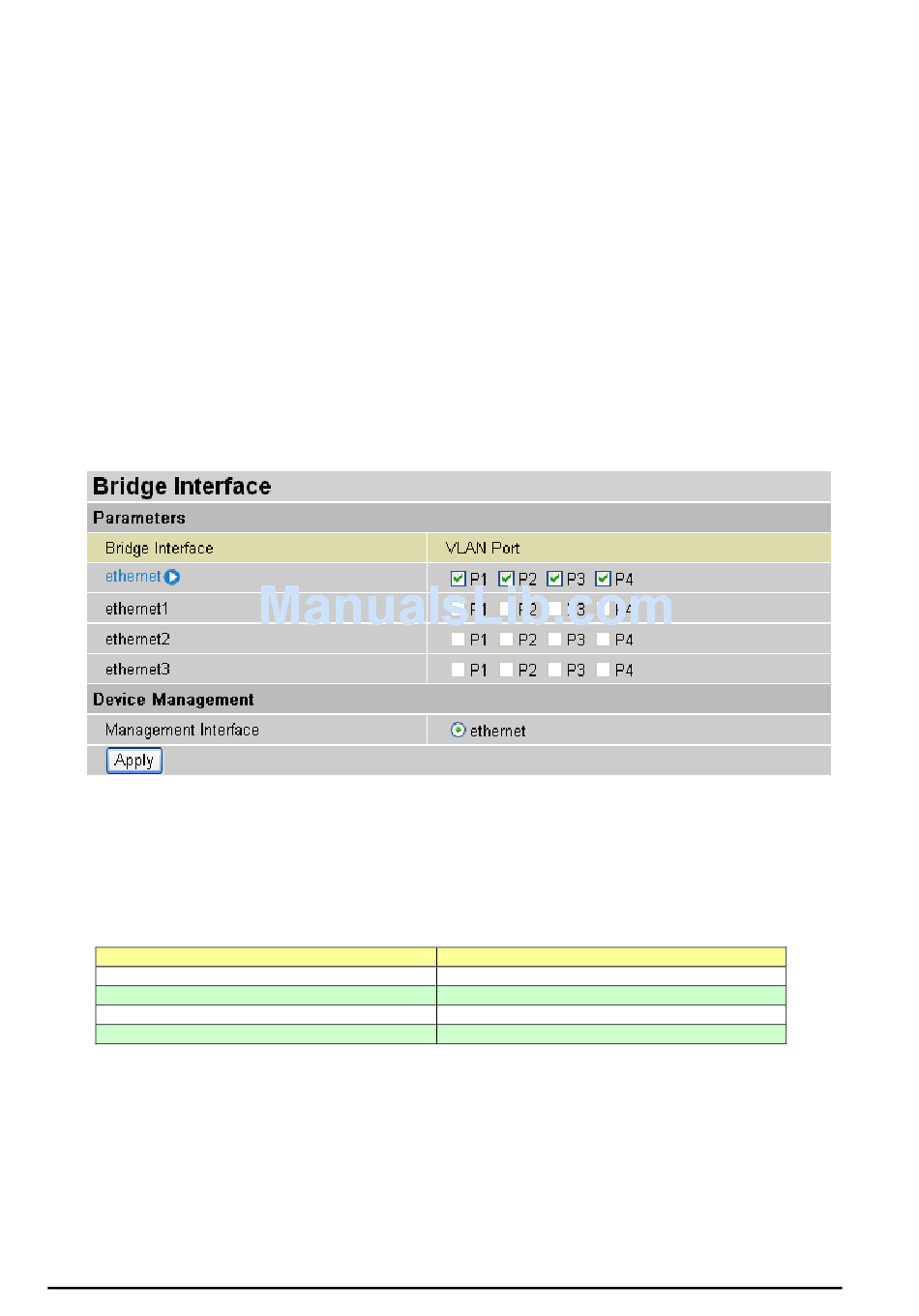

You can setup member ports for each VLAN group under Bridge Interface section. From the example, two
VLAN groups need to be created.
Ethernet: P1 (Port 1)
Ethernet1: P2, P3 and P4 (Port 2, 3, 4). Uncheck P2, P3, P4 from Ethernet VLAN port first.
Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in this order.
Bridge Interface
ethernet
ethernet1
ethernet2
ethernet3
Management Interface: To specify which VLAN group has possibility to do device management, like
doing web management.
Note: NAT/NAPT can be applied to management interface only.
Chapter 4: Configuration
VoIP/(802.11g) ADSL2+ (VPN) Firewall Router
Bridge Interface, Ethernet, IP Alias, Ethernet Client Filter,
VLAN Port (Always starts with)
P1 / P2 / P3 / P4
P2 / P3 / P4
P3 / P4
P4
and
DHCP
Server.
