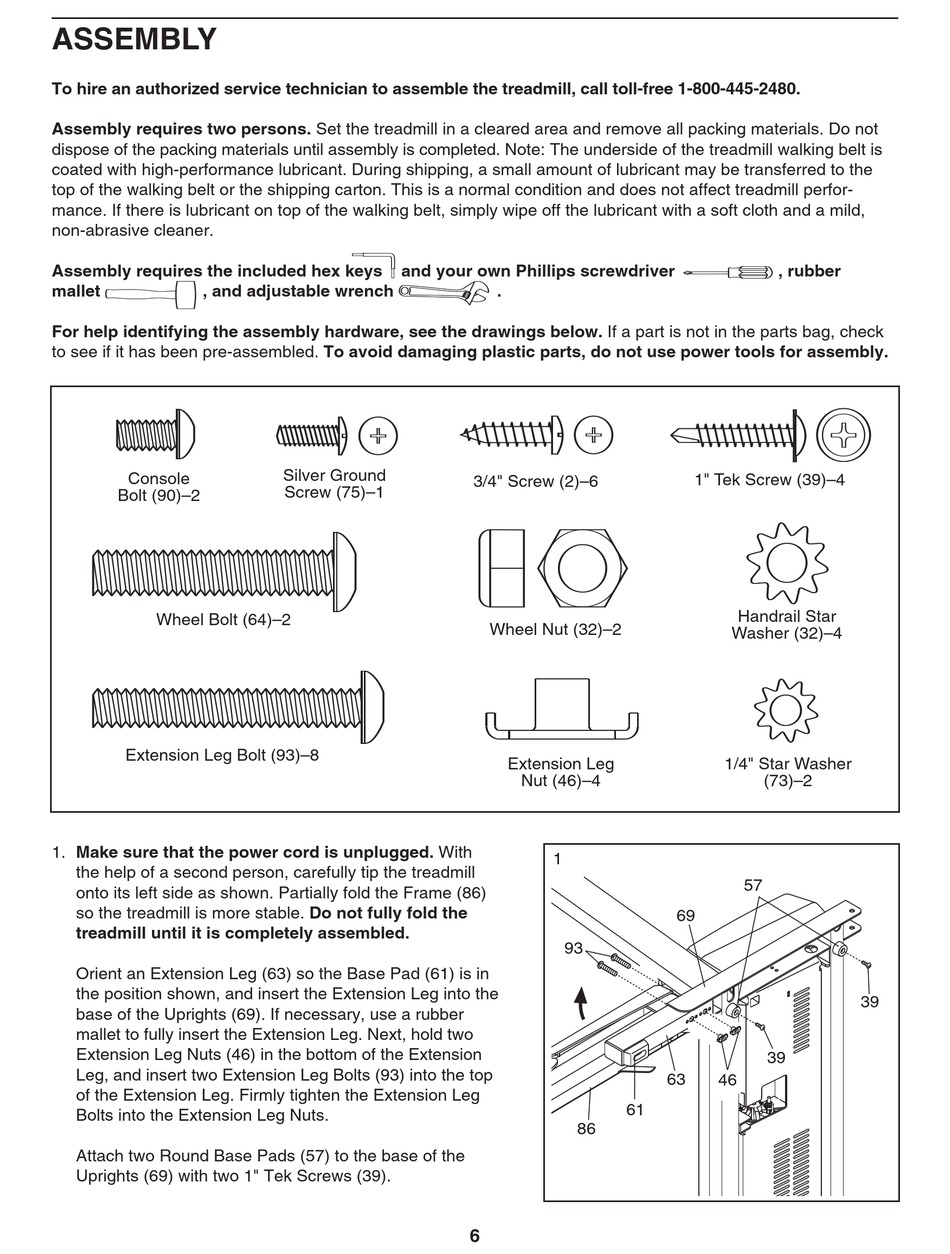

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the 3/4" Tek Screw (58)–8
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys
mallet , and adjustable wrench
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, check
to see if it has been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Console
Bolt (90)–2
Wheel Bolt (64)–2
Extension Leg Bolt (93)–8
1. Make sure that the power cord is unplugged. With
the help of a second person, carefully tip the treadmill
onto its left side as shown. Partially fold the Frame (86)
so the treadmill is more stable. Do not fully fold the
treadmill until it is completely assembled.
Orient an Extension Leg (63) so the Base Pad (61) is in
the position shown, and insert the Extension Leg into the
base of the Uprights (69). If necessary, use a rubber
mallet to fully insert the Extension Leg. Next, hold two
Extension Leg Nuts (46) in the bottom of the Extension
Leg, and insert two Extension Leg Bolts (93) into the top
of the Extension Leg. Firmly tighten the Extension Leg
Bolts into the Extension Leg Nuts.
Attach two Round Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39).
Handrail Bolt (37)–4
and your own Phillips screwdriver
Silver Ground
Screw (75)–1
.
3/4" Screw (2)–6
Wheel Nut (32)–2
Extension Leg
Nut (46)–4
1
93
61
86
6
1/2" Screw (119)–1
, rubber
1" Tek Screw (39)–4
Handrail Star
Washer (32)–4
1/4" Star Washer
(73)–2
57
69
39
63 46
39
