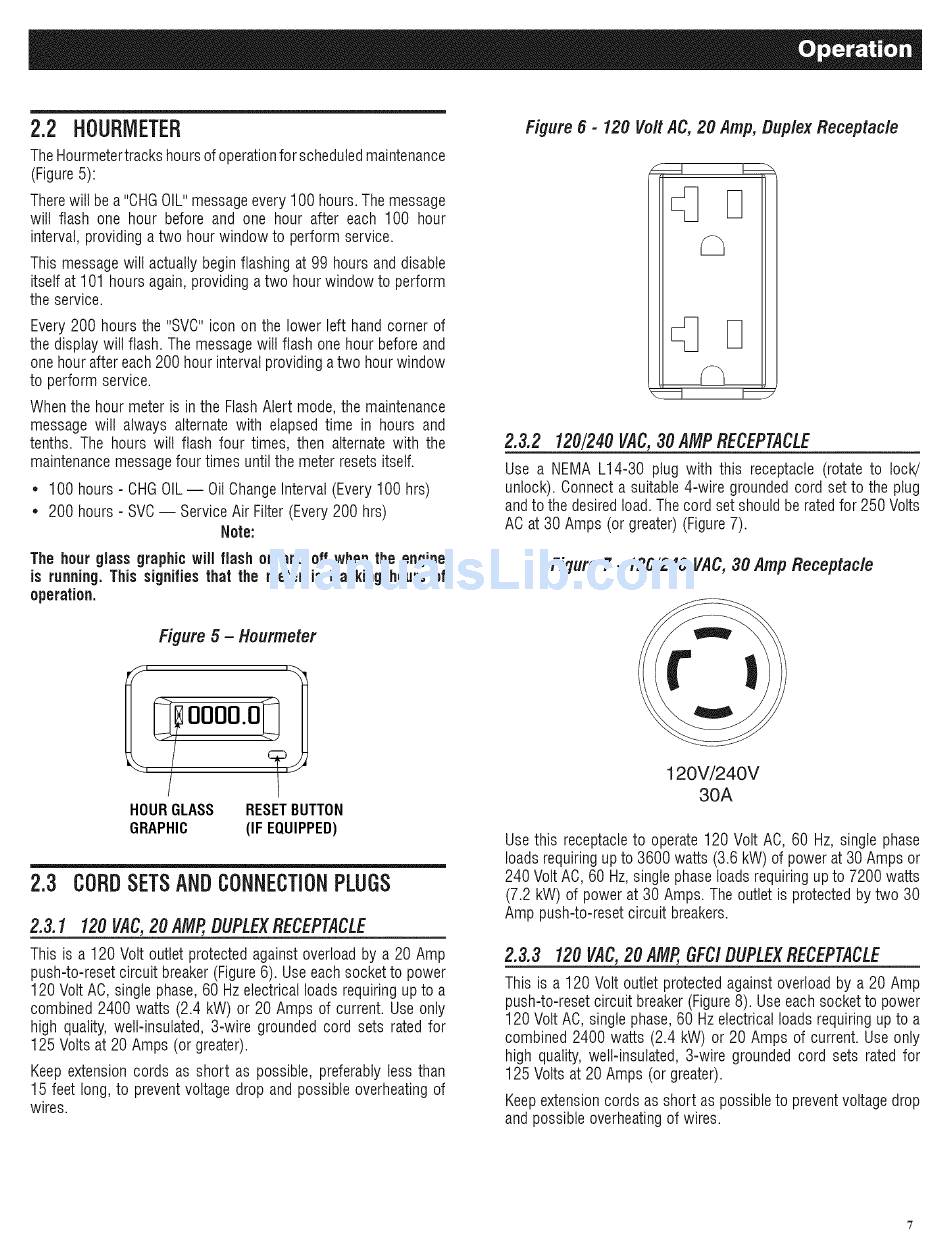

2.2 HOURIVIETER
TheHourmetertracks hoursof operationfor scheduledmaintenance
(Figure5):
Therewill be a "CHGOIL"messageevery 100 hours. The message
will flash one hour before and one hour after each 100 hour
interval, providing a two hour window to perform service.
This messagewill actually begin flashing at 99 hours and disable
itself at 101 hours again,providing a two hour window to perform
the service.
Every 200 hours the "SVC" icon on the lower left hand corner of
the display will flash. The messagewill flash one hour before and
one hour after each 200 hour interval providinga two hour window
to perform service.
Whenthe hour meter is in the FlashAlert mode, the maintenance
message will always alternate with elapsed time in hours and
tenths. The hours wilt flash four times, then alternate with the
maintenancemessagefour times until the meter resets itself.
• 100 hours - CHGOIL-- Oil ChangeInterval(Every 100 hrs)
• 200 hours - SVC-- Service Air Filter (Every 200 hrs)
Note:
The hour glass graphicwill flash on and off when the engine
is running.This signifiesthat the meter is tracking hours of
operation.
Figure 5 - Hourmeter
0000.0
,
HOURGLASS RESET BUTTON
GRAPHIC (IF EQUIPPED)
2.3 CORD SETS ANDCONNECTION PLUGS
2.3.1 120 VAC,20 AMP,DUPLEX RECEPTACLE
This is a 120 Volt outlet protectedagainst overloadby a 20 Amp
push-to-reset circuit breaker (Figure6). Use each socket to power
120 Volt AC, single phase, 60 Hz electrical loads requiring up to a
combined 2400 watts (2.4 kW) or 20 Amps of current. Use only
high quality, well-insulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater).
Keep extensioncords as short as possible, preferably less than
15 feet long, to preventvoltage drop and possible overheating of
wires.
Figure 6 - 120 Volt AC, 20 Amp, Duplex Receptacle
D
2.3.2 120/240 VAC,30 AMP RECEPTACLE
Use a NEMA L14-30 plug with this receptacle (rotate to lock!
unlock). Connecta suitable 4-wire grounded cord set to the plug
and to the desiredtoad. The cord set should be ratedfor 250 Volts
AC at 30 Amps (or greater) (Figure7).
Figure 7 - 120/240 VAC, 30 Amp Receptacle
12OV/24OV
3CA
Use this receptacleto operate 120 Volt AC, 60 Hz, single phase
loads requiringup to 3600 watts (3.6 kW) of power at 30 Amps or
240 Volt AC, 60 Hz, singlephase loads requiringup to 7200 watts
(7.2 kW) of power at 30 Amps. The outlet is protectedby two 30
Amp push-to-resetcircuit breakers.
2.3.3 120 VAC,20 AMP,GFC/OUPLEX RECEPTACLE
This is a 120 Volt outlet protectedagainst overloadby a 20 Amp
push-to=resetcircuit breaker (Figure8). Use each socket to power
120 Volt AC, single phase, 60 Hz electrical loads requiringup to a
combined 2400 watts (2.4 kW) or 20 Amps of current. Use only
high quality, well-insulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater).
Keepextensioncords as short as possibleto preventvoltage drop
and possible overheatingof wires.
