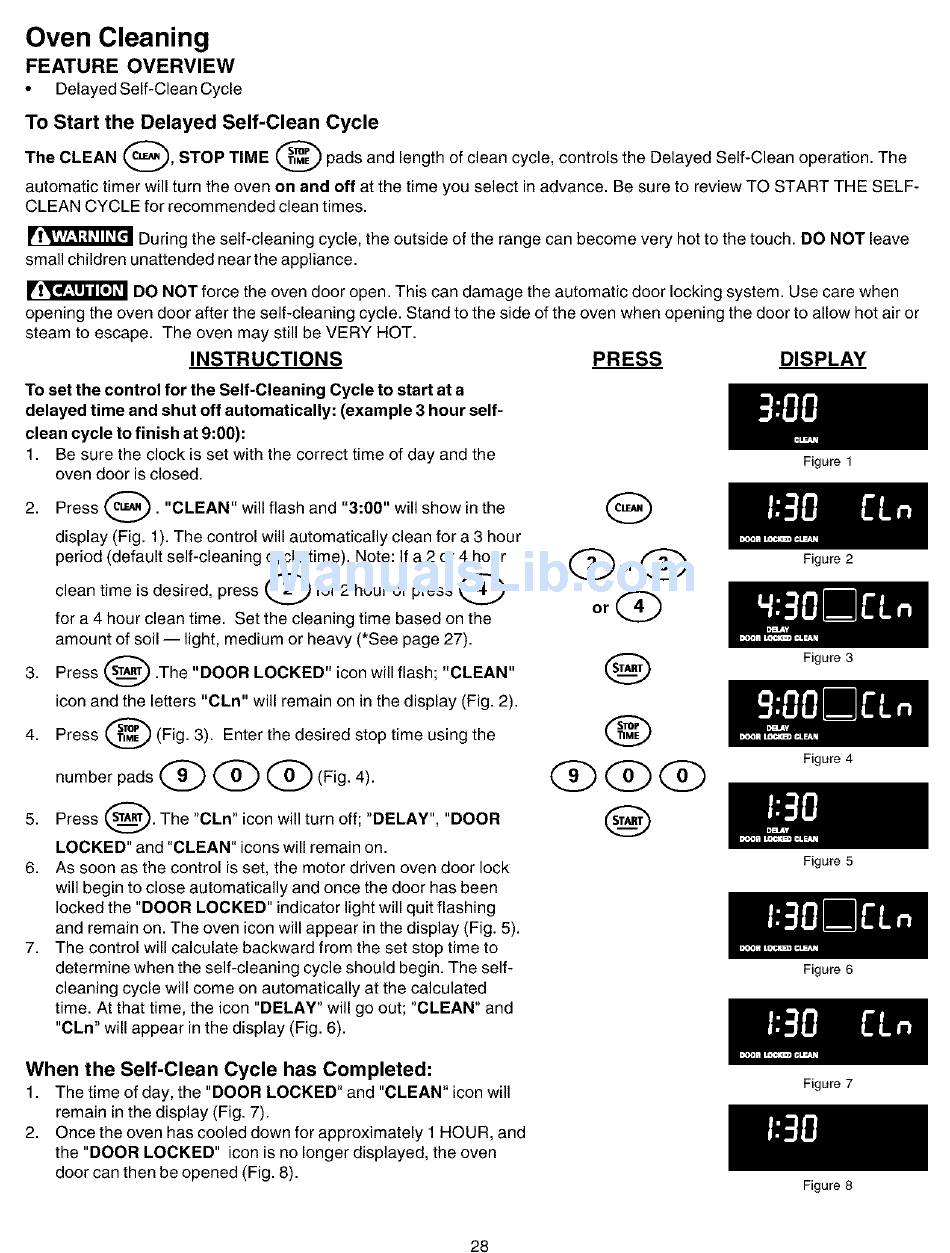

Oven Cleaning
FEATURE
OVERVIEW
Delayed Self-Clean Cycle
To Start the Delayed
Self-Clean
Cycle
The CLEAN (_),
STOP TIME @
pads and length of clean cycle, controls the Delayed Self-Clean operation. The
automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-
CLEAN CYCLE for recommended clean times.
During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS
PRESS
DISPLAY
To set the control for the Self-Cleaning
Cycle to start at a
delayed time and shut off automatically: (example 3 hour self-
clean cycle to finish at 9:00):
1.
Be sure the clock is set with the correct time of day and the
oven door is closed.
2.
Press (_).
"CLEAN"
will flash and "3:00" will show in the
display (Fig. 1). The control will automatically
clean for a 3 hour
period (default self-cleaning cycle time). Note: If a 2 or 4 hour
clean time is desired, press 2_
for 2 hour or press
for a 4 hour clean time. Set the cleaning time based on the
amount of soil -- light, medium or heavy (*See page 27).
3.
Press _
.The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig. 2).
4.
Press @
(Fig. 3). Enter the desired stop time using the
number pads @
@
@
(Fig. 4).
5.
Press (_.
The "CLn" icon will turn off; "DELAY", "DOOR
LOCKED" and "CLEAN" icons will remain on.
6.
As soon as the control is set, the motor driven oven door lock
will begin to close automatically
and once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
and remain on. The oven icon will appear in the display (Fig. 5).
7.
The control will calculate backward from the set stop time to
determine when the self-cleaning cycle should begin. The self-
cleaning cycle will come on automatically at the calculated
time. At that time, the icon "DELAY" will go out; "CLEAN" and
"CLn" will appear in the display (Fig. 6).
or
®
QQQ
When
the Self-Clean
Cycle has Completed:
1.
The time of day, the "DOOR LOCKED" and "CLEAN" icon will
remain in the display (Fig. 7).
2.
Once the oven has cooled down for approximately
1 HOUR, and
the "DOOR LOCKED"
icon is no longer displayed, the oven
door can then be opened (Fig. 8).
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
28
Figure 8
