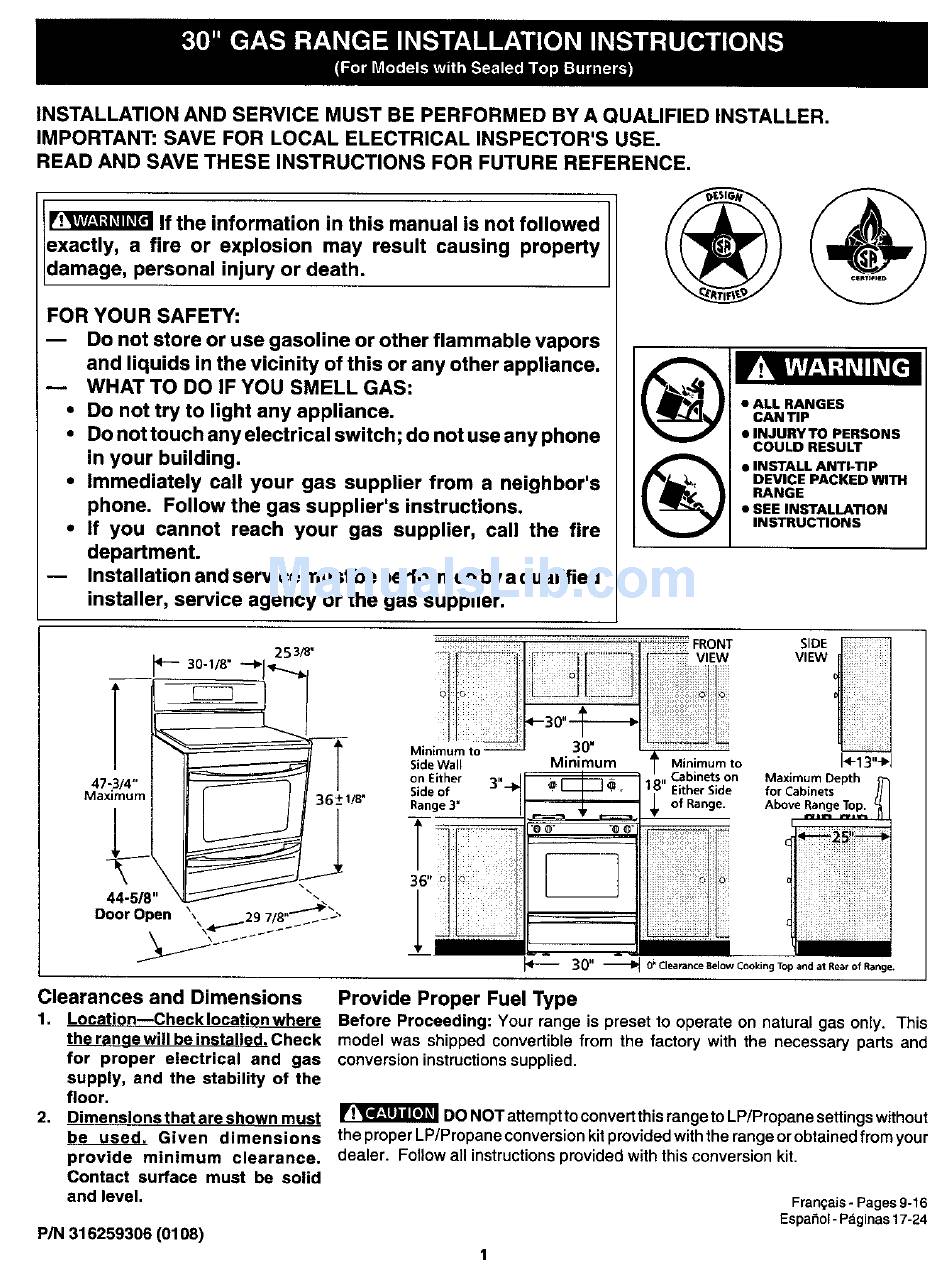

Kenmore 79079019100 Installation Instructions Manual

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
/
If the information in this manual is not followed /
exactly, a fire or explosion may result causing property
1
damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
-- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
A
V
• ALL RANGES
CAN TiP
• INJURYTO PERSONS
COULD RESULT
• INSTALL ANTI-TIp
DEVICE PACKED WITH
RANGE
• SEE INSTALLATION
INSTRUCTIONS
47 -3/4"
Door Open _\\ 29 7/8"_ _"
Range 3"
T
36"
s,o
VIEW
I÷1
Maximum Depth
for Cabinets
Above Range Top.
_-_ 30" _ 0' Clearance Below Cooking Top and at Rear of Range.
Clearances and Dimensions
1, Location--Check location where
2.
P/N 316259306 (0108)
Provide Proper Fuel Type
Before Proceeding: Your range is preset to operate on natural gas only. This
_ewillbein t I_.Check model was shipped convertible from the factory with the necessary parts and
for proper electrical and gas conversion instructionssupplied.
supply, and the stability of the
floor.
Dimensions that are shown must _ DO NOTattempt toconvert thisrangeto LP/Propane settingswithout
be used. Given dimensions theproperLP/Propaneconversionkitprovidedwiththersngeorobtainedfromyour
provide minimum clearance, dealer. Followall instructionsprovided with this conversion kit.
Contact surface must be solid
and level. Fran_ais - Pages 9-16
Espa_ol- P_ginas 17-24
