- Page 1 BGG30 / BGG32 / BGG60 / BGG64 / BGG70 / BGG74 Gas hobs...
- Page 2 User Manual for your Baumatic BGG30 / BGG32 30 cm Burner gas hob BGG60 / BGG64 60 cm 4 Burner gas hob BGG70 / BGG74 70 cm 5 Burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
-
Page 3: Table Of Contents
Contents Enviro nmental note Important safety information 5 – 7 Specifications 8 – 13 BGG30 / BGG32 BGG60 / BGG64 BGG70 / BGG74 Electrical details Gas details Gas hob surface layout 12-13 Using the gas hob 14 - 15 Before first use... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 British Standards. Please see the specific sect ion of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Front control operation Automatic ignition Heavy duty cast iron pan stands Flame failure safety device on each burner Standard accessories: o LPG conversion jets o Wok stand (BGG30 only) Optional extra: o Wok stand (B GG32 only) -

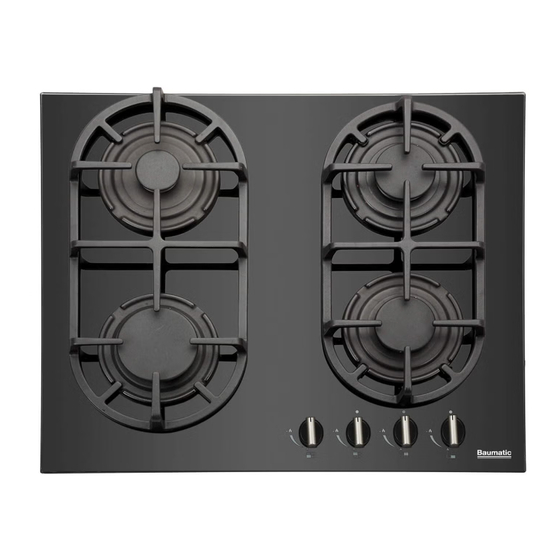

Page 9: Bgg60 / Bgg64
60 / BGG64 Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm idth: 600 mm Width: 560 mm Height: 40 mm Product specifications (BGG60 o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner Product specifications (BGG64): o 1 x 3.80 kW triple crown (wok urner... -
Page 10: Bgg70 / Bgg74
BGG70 / BGG74 Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm idth: 700 mm Width: 560 mm Height: 40 mm Product specifications: o 1 x 3.80 kW triple crown (wok) b urner o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner... -
Page 11: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac / 60 Hz Supply Connection: 3 A (double p ole switched fused outlet with 3mm contact gap) ax Rated Inputs: 0.0008 kW Mains Suppl y Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked) Gas details tion: Rp ½... -
Page 12: Gas Hob Surface Layout
Gas hob surf ace layout BGG30 = 3.80 kW triple crown (wok) burner = Control panel BGG32 A = 1.00 kW auxili ary burner = 3.00 kW rapid burner = Control panel BGG60 A = 1.00 kW auxiliary burn B = 1.75 kW semi- rapid burner = 3.00 kW rapid burner... - Page 13 BGG64 A = 1.00 kW auxiliary burner B = 1.75 kW semi-rapid burner C = 3.80 kW triple crown (wok) burner D = Control panel BGG70 A = 1.00 kW auxiliary burner B = 1.75 kW semi -rapid burner = 3.00 kW rapid burner = 3.80 kW triple crown (wok) burner = Control panel BGG74...
-
Page 14: Using The Gas Hob
Using the gas Before first use IMPORTANT: Y ou should clean the hob surface. (Please see the “Cleaning and maintenance” section). Switching the hob on The following sym bols will appear on the control panel, next to each c n o o r l knob: = gas off arge flame: maximum setting... -
Page 15: Energy Saving Tips
o You should hold down the control knob for 20 seconds after the flame on the burner has lit. o After this 20 second interval, turn the control knob to your required setting between the maximum and minimum setting symbols. o To switch the burner off, turn the control knob fully clockwise to the gas off position. -
Page 16: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Clea ing the hob top Any residues that a re left on the hob top surface from cleaning agents will damage it. -
Page 17: Maintaining The Cast Iron Pan Stands
Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Venti lation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 18: Positioning
85°C above the ambient temperature of the room it is located in, during periods of use. Minimum width of cooker hoo * 300 mm (BGG30 / BGG32) 600 mm (BGG60 / BGG64) * 700 mm (BGG70) o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 19: Unpacking The Appliance
50 mm away from the outer edges of the hob. Unpacking the appliance hen unpacking the appliance please check that the following items are contained withi n the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction ma nual... - Page 20 GG30 / BGG32 BGG60 / BGG64 GG70 / BGG74...
- Page 21 All mode o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 22: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance... -
Page 23: Ventilation Requirements
Ventilation requirements o The room containing the hob should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²... -
Page 24: Gas Safety (Installation And Use) Regulations
Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a 15 mm x ½” female coupler, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. -
Page 25: Gas Adjustment (Conversion To Lpg)
Gas adjustment (Conversion to LPG) All work must be carried out by a GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). -
Page 26: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. -
Page 27: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 28: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply. -
Page 29: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 30: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 31: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lípovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 www.baumatic.cz Sales Telephone (0118) 933 6900 Slovakia Sales Fax Baumatic Slovakia, s.r.o.
