- Page 1 BHG300.5SS BHG604.5SS/W BHG610.5SS BHG710.5SS BHG900.5SS GAS HOB Ng a User Manual for the...
- Page 2 User Manual for your Baumatic BHG300.5SS BHG604.5SS/W BHG610.5SS BHG710.5SS BHG900.5SS GAS HOB NOTE This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information Specifications 8-13 Product details/specifications/dimensions: BHG300.5SS BHG604.5SS/W BHG610.5SS BHG710.5SS BHG900.5SS Electrical details Gas details Using the gas hob 14-16 Before first use The gas hob Automatic ignition with flame failure safety device Energy saving tips... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd DOES NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity...
-
Page 8: Specifications
Specifications – BHG300.5SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 494 mm Width: 288 mm Width: 270 mm Height: 45 mm Product specifications: o 1 x 3.00 kW rapid burner o 1 x 1.00 kW auxiliary burner o Front control operation... -
Page 9: Bhg604.5Ss/W
Specifications – BHG604.5SS/W Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 620 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Enamelled pan stands o Automatic ignition... -
Page 10: Bhg610.5Ss
Specifications – BHG610.5SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 620 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.50 kW triple crown (wok) burner o 1 x 1.75 kW semi-rapid burners o 1 x 3.00 kW rapid burner o 1 x 1.00 kW auxiliary burner o Front control operation... -
Page 11: Bhg710.5Ss

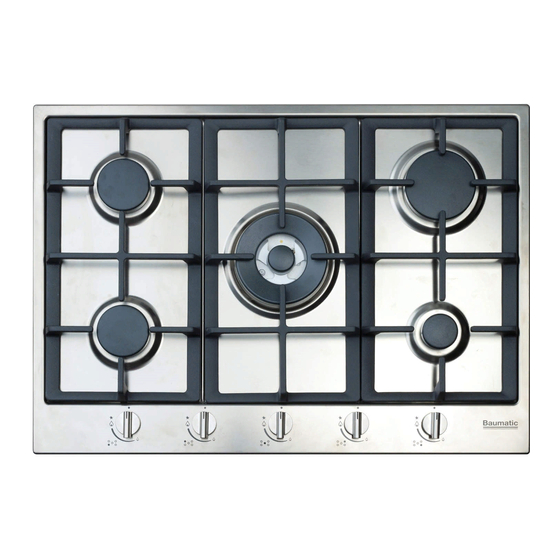

Specifications – BHG710.5SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 720 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o 1 x 3.50 kW triple crown (wok) burner o Front control operation o Heavy duty cast iron pan stands... -
Page 12: Bhg900.5Ss
Specifications – BHG900.5SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 909 mm Width: 840 mm Height: 50 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o 1 x 3.50 kW triple crown (wok) burner o Front control operation o Heavy duty cast iron pan stands... -
Page 13: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 3A (double pole switched fused outlet with 3mm contact gap) Mains Supply Lead: 3 core x 1.5 mm² Gas details Connection: Rp ½ (ISO R7) Type: Natural Gas (20 mbar) Alternative LPG G30 (28-30/37 mbar) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be... -
Page 14: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). The gas hob The following symbols will appear on the control panel, next to each control knob: Circle: gas off Large flame: maximum setting / ignition position Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation of the control knob. -
Page 15: Automatic Ignition With Flame Failure Safety Device
Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. -
Page 16: Energy Saving Tips
Energy saving tips Burners Pan size Ø min Ø max 200 mm 320 mm Rapid 200 mm 260 mm Semi-rapid 140 mm 200 mm Auxiliary 100 mm 140 mm o The diameter of the bottom of the pan should correspond to that of the burner. -
Page 17: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 18: Maintaining The Enamelled Pan Stands
IMPORTANT: Make sure that you reassemble the burners in the original way. Maintaining the enamelled pan stands (BHG300.5SS / BHG604.5SS/W) o IMPORTANT: Make sure that the hob surface and pan stands have cooled before you attempt to touch them. -
Page 19: Installation
Installation The installation must be carried out by a GASSAFE registered installer, in accordance with the current version of the following. o Gas Safety Regulations (Installation & Use) o Building Regulations (issued by the Department of Environment) o Building Standards (Issued Scottish Development... -
Page 20: Positioning
The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. * 300 mm (BHG300.5SS) * 600 mm (BHG604.5SS, BHG610.5SS) * 700 mm (BHG710.5SS) * 900 mm (BHG900.5SS) o This appliance can be located in a kitchen, a kitchen diner or a sitting room. -
Page 21: Unpacking The Appliance
50 mm clearance around the appliance and between the hob surface and any combustible materials. Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction manual Warranty card... -
Page 22: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the correct model drawing: BHG300.5SS BHG604.5SS/W & BHG610.5SS BHG710.5SS BHG900.5SS o Carefully turn the hob upside down and place it on a cushioned mat. o Remove the protective... -
Page 23: Gas Connection
IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. o Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out. -
Page 24: Ventilation Requirements
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Customer Care Department. o The hob must be installed by a qualified person, in accordance... -
Page 25: Gas Safety (Installation And Use) Regulations
o This hob is not fitted with a device for discharging the products of combustion. Ensure that the ventilation rules and regulations are followed. o The walls behind and near the hob should be resistant to heat, steam and condensation. o Remember that the quantity of air necessary for combustion must never be less than 2m³/h for each kW of power (see total power in kW on the appliance rating plate). -
Page 26: Gas Adjustment (Conversion To Lpg)
Gas adjustment (Conversion to LPG) work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove pan-stands, burners flame spreaders (A). o Unscrew the injector (B) and replace it with the stipulated injector for the new gas supply (see the table on the next page). -
Page 27: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. o Remove the knob from the tap and place a small bladed screwdriver in the centre of the tap shaft. -
Page 28: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 29: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations compliance with manufacturer’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 30: My Appliance Isn't Working Correctly
IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Customer Care Department on telephone number (0118) 933 6911. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. -
Page 31: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 32: Contact Details
Czech Republic Baumatic CR spol s.r.o. United Kingdom Lípovà 665 Baumatic Ltd., 460 01 Liberec 4 Baumatic Buildings, Czech Republic 6 Bennet Road, Reading, Berkshire +420 483 577 200 RG2 0QX www.baumatic.cz United Kingdom Slovakia Sales Telephone Baumatic Slovakia, s.r.o.
