Summary of Contents for Baumatic B46.1SS

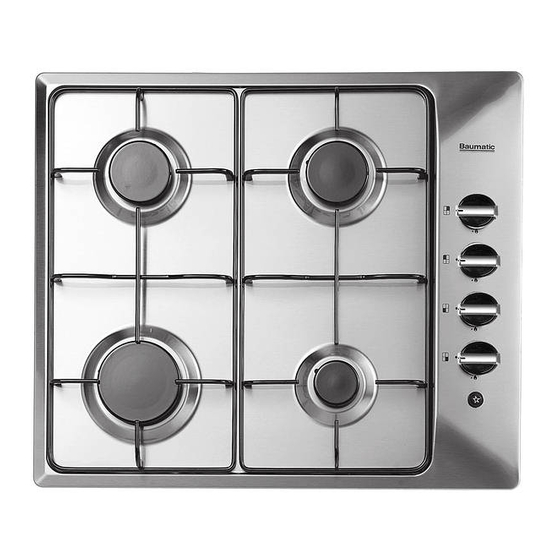

- Page 1 B46.1SS/B46.1TCSS/B60.3SS/ BT61.1SS/BT62.1SS/ BT62.1TCSS/BG67.1SS/ B68.1SS/B68.1TCSS/B17.8SS Gas hobs...
- Page 2 User Manual for your Baumatic B46.1SS 60 cm 4 Burner gas hob B46.1TCSS 60 cm 4 Burner gas hob with thermocouples B60.3SS 60 cm 4 Burner gas hob with thermocouples BT61.1SS 60 cm 4 Burner gas hob with thermocouples BT62.1SS 60 cm 4 Burner gas hob BT62.1TCSS...
-
Page 3: Table Of Contents
15 - 17 Using the gas hob 17 - 20 Before first use Switching the hob on 17 – 18 Pushbutton ignition (B46.1SS) Pushbutton ignition with flame failure device 18 - 19 (B46.1TCSS/B60.3SS/BT61.1SS) Automatic ignition (B68.1SS/BT62.1SS) Automatic ignition with flame failure device 19 –... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 British Standards. Please see the specific sect ion of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
pecifications .1SS/B46.1TCSS Product dimensions: Aperture dimensions: Height: 500 mm Height: 480 mm Width: 585 mm Width: 560 mm Depth: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne o 1 x 1.00 kW auxiliary burner o Side control operation Pushbutton ignition o Enamelled pan stands... -
Page 9: B60.3Ss
60.3SS roduct dimensions: Aperture dimensions: Height: 500 mm Height: 480 mm Width: 585 mm Width: 560 mm epth: 35 mm roduct specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Side control operatio o Pushbutton ignition o Heavy duty cast iron pan stands... -
Page 10: Bt61.1Ss
T61.1SS roduct dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm eight: 35 mm roduct specifications: o 1 x 3.30 kW triple crown (wok) b urner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Side control operatio o Pushbutton ignition o Heavy duty cast iron pan stands... -
Page 11: Bt62.1Ss/Bt62.1Tcss
T62.1SS/BT62.1TCSS roduct dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm eight: 35 mm roduct specifications: o 1 x 3.30 kW triple crown (wok) b urner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Front control opera tion o Automatic ignition... -
Page 12: Bg67.1Ss
G67.1SS roduct dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 685 mm Width: 560 mm eight: 35 mm o 1 x 3.30 kW triple crown ( wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Front control opera tion... -
Page 13: B68.1Ss/B68.1Tcss
68.1SS/B68.1TCSS roduct dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 685 mm Width: 560 mm eight: 35 mm o 1 x 3.30 kW triple crown ( wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Front control opera tion... -
Page 14: B17.8Ss
17.8SS roduct dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 860 mm Width: 830 mm eight: 40 mm roduct specifications: o 1 x 3.30 kW triple crown ( wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burne 1 x 1.00 kW auxiliary burner o Side control operati o Automatic ignition... -
Page 15: Electrical Details
lectrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 3 A (double pole sw itched fused outlet with 3mm contact gap) Max Rated Inputs: 0.008 to 0.02 kW (depending on model) ains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked) as details Connection: Rp ½... - Page 16 T61.1SS A = 3.30 kW wok burner B = 1.75 kW semi-rapid burne C = 1.00 kW auxili ary burner D = Control panel = Ignition button T62.1SS/BT62.1TCSS A = 3.30 kW wok burner B = 1.7 5 kW semi-rapid burner C = 1.0 0 kW auxiliary...
-
Page 17: Using The Gas Hob
17.8SS A = 3.30 kW wok burner B = 3.00 kW rapid burner C = 1.75 kW semi-rapid burne = 1.00 kW auxiliary burner sing the gas hob Before first use IMPORTANT: You should clean the ho b surface (see “... -
Page 18: Pushbutton Ignition (B46.1Ss)
The symbol on the control panel, next to the control knob will indicate which gas burner it o perates. Pushbutton ignition (B46.1SS) o Press in and turn the appropriate control knob anti-clockwise to the large flame symbol. o Whilst pressing in the control knob, press and hold down the ignition button, which is located on the control panel. -
Page 19: Automatic Ignition With Flame Failure Device
o To switch the burner off, turn the control knob fully clockwise to the gas of f position. o In case of power failure, the burners ca n be lit by carefully using a match. utomatic ignition (BT62.1SS/B68.1SS) To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the m aximum position. -
Page 20: (B17.8Ss/B68.1Tcss/Bg67.1Ss/Bt62.1Tcss) Energy Saving Tips
o In case of powe r failure, the burners can be lit by carefully using a match. Energy saving tips BURNERS PA S Minimum aximum diametre iametre 220 mm 260 mm Rapid 180 mm 220 mm Semi-rapid 120 mm 200 mm Auxiliary 80 mm 160 mm... -
Page 21: Cleaning The Hob Top
Clea ing the hob top Any residues that a re left on the hob top surface from cleaning gents will damage it. You should remove any residues with warm soapy water. brasive cleaners or sharp objects will damage the hob surface; you should clean it using warm soapy water. -
Page 22: Maintaining The Cast Iron Pan Stands
Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Venti lation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 23: Positioning
85°C above the ambient temperature of the room it is located in, during periods of use. * 600 mm (B46.1SS, B46.1TCSS, B60.3SS, BT 61.1SS, BT62.1SS, BT62.1TCSS) 700 mm (BG67.1SS, B68.1SS, B68.1TCSS) * 900 mm (B17.8SS) -
Page 24: Unpacking The Appliance
50 mm clearance around the appliance and between the hob surface and any combu stible materials. Unpacking the appliance hen unpacking the appliance please check that the following items are contained withi n the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction ma nual Baumatic warranty card... - Page 25 BG67.1SS B68.1SS B68.1TCSS 17.8SS Cut a hole in the worktop that corresponds with the relevant drawing for your hob on pages 24 - 25. All models except 17.8SS) 17.8SS IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it.
- Page 26 o Carefully tu rn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness.
-
Page 27: Gas Connection
Conversion for use on LPG and other gases must only be undertaken b y a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance with the current edition of... -
Page 28: Gas Safety (Installation And Use) Regulations
o If it is installed in a room with a volume that exceeds 11m³, then no air vent is required. o If there are any other fuel b urning appliances in the same room the current edition of BS 5440: Part 2: should be consulted to determine air vent requirements. -
Page 29: Gas Adjustment (Conversion To Lpg)
o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. o The elbow MUST be pointing in a downwards direction. o Gas p ressure may be checked on a semi-rapid hob burner. Remove the appropriate injector and attach a test nipple. - Page 30 o Unscrew the injector (B) and replace it with the stipulated inject or for the new gas sup y (see tabl below). ERAL IN JECTORS ABLE Kind of gas zzle Burners Power (in watt /100 Natural 3500 1700 Rapid 3000 Semi-rapid 1750 Auxiliary...
-
Page 31: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the bu rner on and set the knob at minimum position. -
Page 32: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from th e gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 33: Electrical Connection
If the mains supply cab le is damaged, then it must be replaced by an ppropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be repl aced in accordance with the wing instructions: o Switch the appliance off at your mains supply. -
Page 34: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 35: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900...
