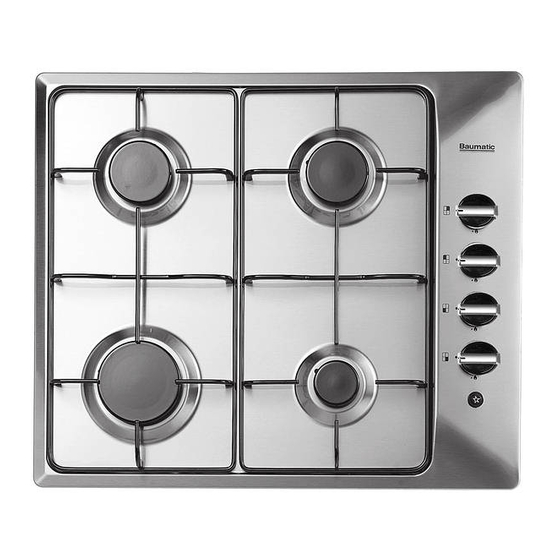

- Page 1 B46.1SS/B46.1TCSS/B60.3SS/ BT61.1SS/BT62.1SS/ BT62.1TCSS/BG67.1SS/ B68.1SS/B68.1TCSS/B17.8SS Gas hobs...
- Page 2 User Manual for your Baumatic B46.1SS 60 cm 4 Burner gas hob B46.1TCSS 60 cm 4 Burner gas hob with thermocouples B60.3SS 60 cm 4 Burner gas hob with thermocouples BT61.1SS 60 cm 4 Burner gas hob with thermocouples BT62.1SS 60 cm 4 Burner gas hob BT62.1TCSS...
-
Page 3: Table Of Contents
15 - 17 Using the gas hob 17 - 20 Before first use Switching the hob on 17 – 18 Pushbutton ignition (B46.1SS) Pushbutton ignition with flame failure device 18 - 19 (B46.1TCSS/B60.3SS/BT61.1SS) Automatic ignition (B68.1SS/BT62.1SS) Automatic ignition with flame failure device 19 –... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity...
-
Page 8: Specifications
Specifications B46.1SS/B46.1TCSS Product dimensions: Aperture dimensions: Height: 500 mm Height: 480 mm Width: 585 mm Width: 560 mm Depth: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner... -
Page 9: B60.3Ss
B60.3SS Product dimensions: Aperture dimensions: Height: 500 mm Height: 480 mm Width: 585 mm Width: 560 mm Depth: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Side control operation o Pushbutton ignition o Heavy duty cast iron pan stands... -
Page 10: Bt61.1Ss
BT61.1SS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm Height: 35 mm Product specifications: o 1 x 3.30 kW triple crown (wok) burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Side control operation o Pushbutton ignition o Heavy duty cast iron pan stands... -
Page 11: Bt62.1Ss/Bt62.1Tcss
BT62.1SS/BT62.1TCSS Product dimensions: Aperture dimensions: Depth: 500 mm Depth: 480 mm Width: 585 mm Width: 560 mm Height: 35 mm Product specifications: o 1 x 3.30 kW triple crown (wok) burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition o Heavy duty cast iron pan stands... -
Page 12: Bg67.1Ss
BG67.1SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 685 mm Width: 560 mm Height: 35 mm o 1 x 3.30 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition... -
Page 13: B68.1Ss/B68.1Tcss
B68.1SS/B68.1TCSS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 685 mm Width: 560 mm Height: 35 mm o 1 x 3.30 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Automatic ignition... -
Page 14: B17.8Ss
B17.8SS Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 860 mm Width: 830 mm Height: 40 mm Product specifications: o 1 x 3.30 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Side control operation o Automatic ignition... -
Page 15: Electrical Details
Model Number ………………………………. Serial Number ………………………………. Date of Purchase ………………………………. Gas hob surface layout B46.1SS/B46.1TCSS/B60.3SS A = 3.00 kW rapid burner B = 1.75 kW semi-rapid burner C = 1.00 kW auxiliary burner D = Control panel E = Ignition button... - Page 16 BT61.1SS A = 3.30 kW wok burner B = 1.75 kW semi-rapid burner C = 1.00 kW auxiliary burner D = Control panel E = Ignition button BT62.1SS/BT62.1TCSS A = 3.30 kW wok burner B = 1.75 kW semi-rapid burner C = 1.00 kW auxiliary burner D = Control panel...
-
Page 17: Using The Gas Hob
B17.8SS A = 3.30 kW wok burner B = 3.00 kW rapid burner C = 1.75 kW semi-rapid burner D = 1.00 kW auxiliary burner Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance”... -
Page 18: Pushbutton Ignition (B46.1Ss)
The symbol on the control panel, next to the control knob will indicate which gas burner it operates. Pushbutton ignition (B46.1SS) o Press in and turn the appropriate control knob anti-clockwise to the large flame symbol. o Whilst pressing in the control knob, press and hold down the ignition button, which is located on the control panel. -
Page 19: Automatic Ignition (B68.1Ss/Bt62.1Ss)
o To switch the burner off, turn the control knob fully clockwise to the gas off position. o In case of power failure, the burners can be lit by carefully using a match. Automatic ignition (BT62.1SS/B68.1SS) To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. -
Page 20: (B17.8Ss/B68.1Tcss/Bg67.1Ss/Bt62.1Tcss) Energy Saving Tips
o In case of power failure, the burners can be lit by carefully using a match. Energy saving tips BURNERS PANS Minimum Maximum diametre diametre 220 mm 260 mm Rapid 180 mm 220 mm Semi-rapid 120 mm 200 mm Auxiliary 80 mm 160 mm o The diametre of the bottom of the pan should correspond to that... -
Page 21: Cleaning The Hob Top
Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. You should remove any residues with warm soapy water. Abrasive cleaners or sharp objects will damage the hob surface; you should clean it using warm soapy water. Although it is easier to clean some deposits whilst the hob surface is still warm. -
Page 22: Maintaining The Cast Iron Pan Stands
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 23: Positioning
The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. * 600 mm (B46.1SS, B46.1TCSS, B60.3SS, BT61.1SS, BT62.1SS, BT62.1TCSS) * 700 mm (BG67.1SS, B68.1SS, B68.1TCSS) * 900 mm (B17.8SS) o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 24: Unpacking The Appliance
50 mm clearance around the appliance and between the hob surface and any combustible materials. Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob Pan stands Burner assemblies Instruction manual Baumatic warranty card... - Page 25 BG67.1SS B68.1SS B68.1TCSS B17.8SS o Cut a hole in the worktop that corresponds with the relevant drawing for your hob on pages 24 - 25. All models (except B17.8SS) B17.8SS o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it.
- Page 26 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 27: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance... -
Page 28: Gas Safety (Installation And Use) Regulations
o If it is installed in a room with a volume that exceeds 11m³, then no air vent is required. o If there are any other fuel burning appliances in the same room the current edition of BS 5440: Part 2: should be consulted to determine air vent requirements. -
Page 29: Gas Adjustment (Conversion To Lpg)
o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. o The elbow MUST be pointing in a downwards direction. o Gas pressure may be checked on a semi-rapid hob burner. Remove the appropriate injector and attach a test nipple. - Page 30 o Unscrew the injector (B) and replace it with the stipulated injector for the new gas supply (see table below). GENERAL INJECTORS TABLE Kind of gas Nozzle Burners Power (in watts) mm/100 Max. Min. Natural 3500 1700 Rapid 3000 Semi-rapid 1750 Auxiliary 1000...
-
Page 31: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. -
Page 32: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 33: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply. -
Page 34: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 35: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 36: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Lípovà 665 Baumatic Buildings, 460 01 Liberec 4 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900 Slovakia Sales Fax Baumatic Slovakia, s.r.o.
