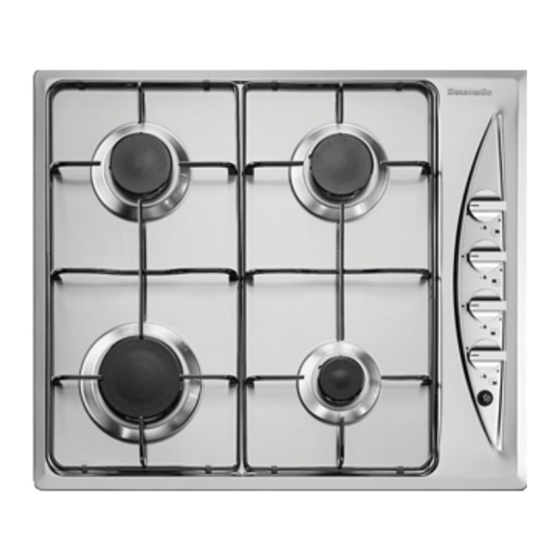

- Page 1 B47SS/BG60/BG61/B60.1SS/ BT61SS 4 burner gas hob. BG60TC/B60.1TCSS 4 burner gas hob with thermocouples.
- Page 2 User Manual for your Baumatic B47SS 4 burner gas hob BG60 4 burner gas hob BG61 4 burner gas hob. B60.1SS 4 burner gas hob. BT61SS 4 burner gas hob BG60TC/B60.1TCSS 4 burner gas hob with thermocouples NOTE : This User Instruction Manual contains important information, including safety &...
-
Page 3: Table Of Contents
Contents Environmental note mportant safety information 5 – 7 pecifications Product & Aperture dimensions Product specifications Standard accessories Optional extras Electrical details Gas details Gas hob surface layout sing the gas hob Before first use Turning the hob on 10 – 11 Turning the hob on (BG60TC/B60.1TCSS) Energy saving tips 11 –... -
Page 4: Environmental Note
The packaging materials that Baumatic uses are environmentally friendly and can be recycled. Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept awa from the appliance, as they may fuse to the surface. - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. eclaration of conformity his appliance complies with the following European Directives: 3/23/EEC dated 19/02/1973 Low Voltage Directive.
-
Page 8: S Pecifications
pecifications Product dimensions: Aperture dimensions: eight: 500 mm Height: 480 mm Width: 585 mm Width: 560 mm Depth: 35 mm roduct specifications: o 1 x 3.00 kW rapid bu rner (B47, BG60, BG60TC, B60.1TCSS & B60.1SS) 1 x 3.30 kW wok burner (BG61SS &... -
Page 9: Gas Details
Gas details onnection: Rp ½ (ISO R7) Type: Natural Gas (20. 9 mbar), alternative LPG G30 (28-30 mbar), town gas G110 – 120 (8 mbar) to order. or future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 10: U Sing The Gas Hob
sing the gas hob efore first use PORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Turning the hob on he following symbols will appear on the control panel, next to each control knob: lack circle: gas off arge flame: maximum setting mall flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 11: Turning The Hob On (Bg60Tc/B60.1Tcss)
o In case of power failure, the burners can be lit by carefully usin a match. Turning the hob on (BG60TC and B60.1TCSS only) o This particular appliance is fitted with a thermocoup le safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. -
Page 12: Cleaning
o Use flat bottomed pans only When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times. PORTANT: Always place pans centrally over the hob burners position them so that the handles cannot get accidentally caught or nocked off. -
Page 13: Cleaning The Hob Burners
IEE Wiring Regulations Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG App liances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 14: Positioning
sitioning The adjacent furniture must be able to withstand a imum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitchen, a kitchen diner or a sitting room. -
Page 15: Unpacking The Appliance
1 x Baumatic hob 2 x Pan supports x Burner assemblies 1 x Installation and instruction manual 1 x Baumatic guar... - Page 16 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the applia nce. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 17: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. The cooker must be installed by a qualified person, in accordance with the current edition of the Gas Safety (Installation and Use) (Amendment) Regulations and the relevant building/I.E.E. -
Page 18: Ventilation Requirements
entilation requirements o The room containing the cooker should have an air supply in accordance with the cu rrent edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will requir e an air vent of 50cm²... -
Page 19: Gas Safety (Installation And Use) Regulations
as Safety (Installation and Use) Regulations MPORTANT: The appliance MUST be connected to the gas supply by use of a ½ BSP Elbow, seal, copper p ipe and an olation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by compete persons in accordance with the current edition of th e Gas Safety Installation and Use Regulations. -
Page 20: Gas Adjustment (Conversion To Lpg)
as adjustment (Conversion to LPG) All work must be carried out by a CORGI registered engineer. IMPORTA T: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). -
Page 21: Minimum Flow Adjustment For Hob Gas Tap S
inimum flow adjustment for hob gas taps. All work must be carried out by a CORGI r egistered engineer. IMPORTANT: Always isolate the hob from the electricity supply before ch anging the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the... -
Page 22: Gas Tap Maintenance
as tap maintenance These maintenance operations MUST ONLY be carried out by a CORG I registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconne ct the appliance from the gas and ele ctricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 23: Electrical Connection
This appliance must b e installed by a qualified person in a ccordance with the latest edition of the E.E. Regulations and in compliance with Baumatic’s instructions. Before con ecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 24: M Y Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 25: C Ontact Details
Czech Republic aumatic CR spol s.r.o. mperova 495 6215, Librec zech Republic United Kingdom +420 800 185 263 Baumatic Ltd., Baumatic Buildings, www.baumatic.c 6 Bennet Road, Reading, Berksh Slovak Republi RG2 0QX aumatic Slovakia, s.r.o. United Kingdom Skultetyho 1 31 04 Bratislava 3...
