Baumatic B68SS Instruction Manual

Baumatic B68SS Instruction Manual

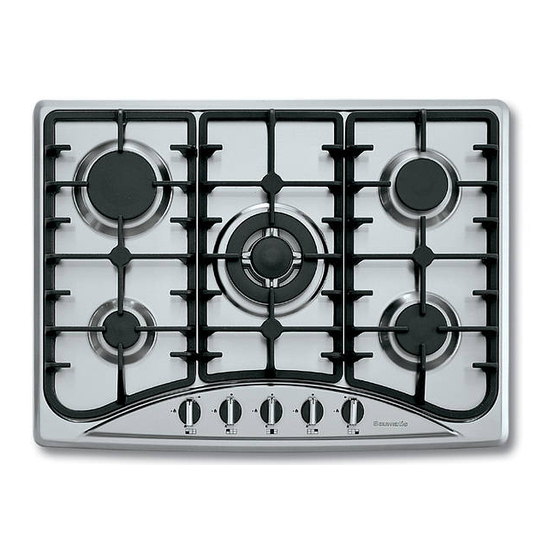

60 cm 4 burner gas hob/70 cm 5 burner gas hob
Hide thumbs Also See for B68SS:

Advertisement

BT60.2SS/BT62SS 60 cm 4
burner gas hob.
BG67SS/B68SS 70 cm 5
burner gas hob.
remSo
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B68SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumatic B68SS

  • Page 1 BT60.2SS/BT62SS 60 cm 4 burner gas hob. BG67SS/B68SS 70 cm 5 burner gas hob. remSo...
  • Page 2 User Manual for your Baumatic BT60.2SS 4 burner gas hob BT62SS 4 burner gas hob BG67SS 5 burner gas hob B68SS 5 burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
  • Page 3: Table Of Contents

    Contents Environmental note Important safety information Specifications Product & Aperture dimensions Product specifications Standard accessories Electrical details Gas details Gas hob surface layout Using the gas hob Before first use Turning the hob on Automatic electric ignition Energy saving tips Cleaning Cleaning the hob top After each use...
  • Page 4: Environmental Note

    Environmental note The packaging materials that friendly and can be recycled. Please discard all packaging material with due regard for the environment. Baumatic uses are environmentally...
  • Page 5: Important Safety Information

    No modifications to the appliance are permitted by Baumatic Ltd. You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be k from the appliance, as they may fuse to the surface.
  • Page 6 Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowe to touch the appliance at a surfaces will become hot. If it is necessary for younger family members to be in the...
  • Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive.
  • Page 8: Specifications

    Enamelled pan stands o Heavy duty cast iron pan stands o Underknob auto-ignition Standard accessories: o LPG Conversion jets o Wok Stand (BT62SS, BG67SS & B68SS) Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 3 A (double pole switched fused outlet with...
  • Page 9: Gas Details

    The rating plate of your hob is located on the underneath of the appliance. Therefore it is a good idea to record this information before you install your appliance. Model Number ………………………………. Serial Number ………………………………. Date of Purchase ………………………………. Gas hob surface layout BT60.2SS BT62SS BG67SS & B68SS...
  • Page 10: Using The Gas Hob

    Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Turning the hob on The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation...
  • Page 11: Energy Saving Tips

    o The diametre of the bottom of the pan should correspond to that of the burner. o The burner flame must never extend beyond the diametre of the pan. o Use flat bottomed pans only o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times.
  • Page 12: Cleaning

    Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it.
  • Page 13: Installation

    IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions...
  • Page 14: Positioning

    The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room.
  • Page 15: Unpacking The Appliance

    1 x Baumatic hob 2 x Pan supports 4 x Burner assemblies 1 x Installation and instruction manual 1 x Baumatic guarantee card 4 x Fixing screws 4 x Clamps 1 x Sealing strip 4 x LPG jets 1 x Self-adhesive label for amending the Gas Category on the appliance’s rating plate (required if the LPG conversion kit is used).
  • Page 16 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
  • Page 17: Gas Connection

    Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The cooker must be installed by a qualified person, in...
  • Page 18: Ventilation Requirements

    o The room containing the cooker should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²...
  • Page 19: Gas Safety (Installation And Use) Regulations

    IMPORTANT: The appliance MUST be connected to the gas supply by use of a ½ BSP Elbow, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations.
  • Page 20: Gas Adjustment (Conversion To Lpg)

    All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Reassemble all the burners carefully; in particular you should make sure that the flame spreader is correctly placed on the burner.
  • Page 21: Minimum Flow Adjustment For Hob Gas Taps

    All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Unscrew the adjusting screw, in order to increase the gas flow or tighten the adjusting screw to decrease the gas flow.
  • Page 22: Gas Tap Maintenance

    These maintenance operations MUST ONLY be carried out by a CORGI registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps.
  • Page 23: Electrical Connection

    Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch.
  • Page 24: My Appliance Isn't Working Correctly

    Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
  • Page 25: Contact Details

    (0118) 933 6933 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Website: www.baumatic.co.uk Republic of Ireland 01- 6266 798 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec Czech Republic +420 800 185 263 www.baumatic.cz Slovak Republic Baumatic Slovakia, s.r.o. Skultetyho 1 831 04 Bratislava 3...

This manual is also suitable for:

Bg67ssBt60.2Bt62Bt60.2ssBt62ss
