1. Determine the installation location
CAUTION: Installing your LCD monitor must be done by a
qualiﬁ ed technician. Contact your dealer for more
CAUTION: MOVING OR INSTALLING THE LCD MONITOR
MUST BE DONE BY TWO OR MORE PEOPLE.
Failure to follow this caution may result in injury if
the LCD monitor falls.
CAUTION: Do not mount or operate the monitor upside
CAUTION: This LCD has a temperature sensor and cooling
fan, including a fan for the option board.
If the LCD becomes too hot, the cooling fan will
turn on automatically.
The option board's fan is active although the
temperature is lower than normal operating
temperature for cooling the option board. If the
LCD becomes overheated while the cooling fan
is running, a "Caution" warning will appear. If the
"Caution" warning appears, discontinue use and
allow the unit to cool. Using the cooling fan will
reduce the likelihood of early circuit failure and
may help reduce image degradation and "Image
If the LCD is used in an enclosed area or if the
LCD panel is covered with a protective screen,
please check the inside temperature of the
monitor by using the "HEAT STATUS" control
in the OSD (see page 25). If the temperature is
higher than the normal operating temperature,
please turn the cooling fan to ON within the FAN
CONTROL menu within the OSD (see page 25).
IMPORTANT: Lay the protective sheet, which was wrapped
around the LCD monitor when it was
packaged, beneath the LCD monitor so as not
to scratch the panel.

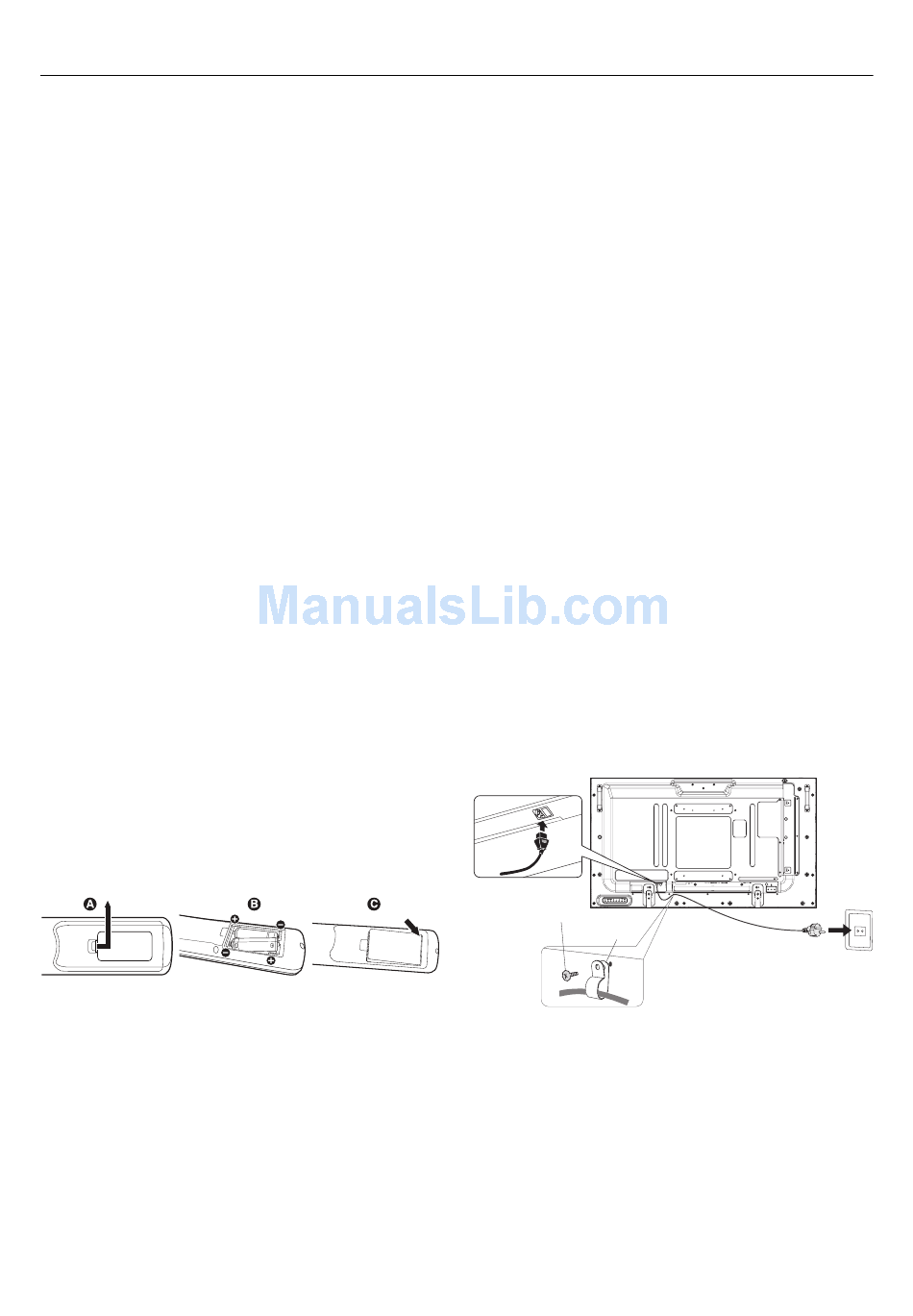

2. Install the remote control batteries
The remote control is powered by two 1.5V AAA batteries.
To install or replace batteries:
A. Press and slide to open the cover.
B. Align the batteries according to the (+) and (–) indications
inside the case.
C. Replace the cover.
CAUTION: Incorrect usage of batteries can result in leaks or
NEC recommends the following battery use:
Place "AAA" size batteries matching the (+) and (-) signs
on each battery to the (+) and (-) signs of the battery
Do not mix battery brands.
Do not combine new and old batteries. This can shorten
battery life or cause liquid leakage of batteries.
Remove dead batteries immediately to prevent battery
acid from leaking into the battery compartment.
Do not touch exposed battery acid, it may injure skin.
If you do not intend to use the Remote Control for
a long period of time, remove the batteries.
3. Connect external equipment
(See pages 14 and 15)
To protect the external equipment; turn off the main power
before making connections.
Refer to your equipment user manual for further
Do not connect/disconnect cables when turning
on the monitor or other external equipment as this
may result in a loss of the monitor image.
4. Connect the supplied power cord
The equipment should be installed close to an easily
accessible power outlet.
Please fasten power cord to the LCD monitor by attaching
the screw and clamp.
Fully insert the prongs into the power outlet socket.
A loose connection may cause image degradation.
Please refer to the "Safety Precautions and
Maintenance" section of this manual for proper
selection of AC power cord.
