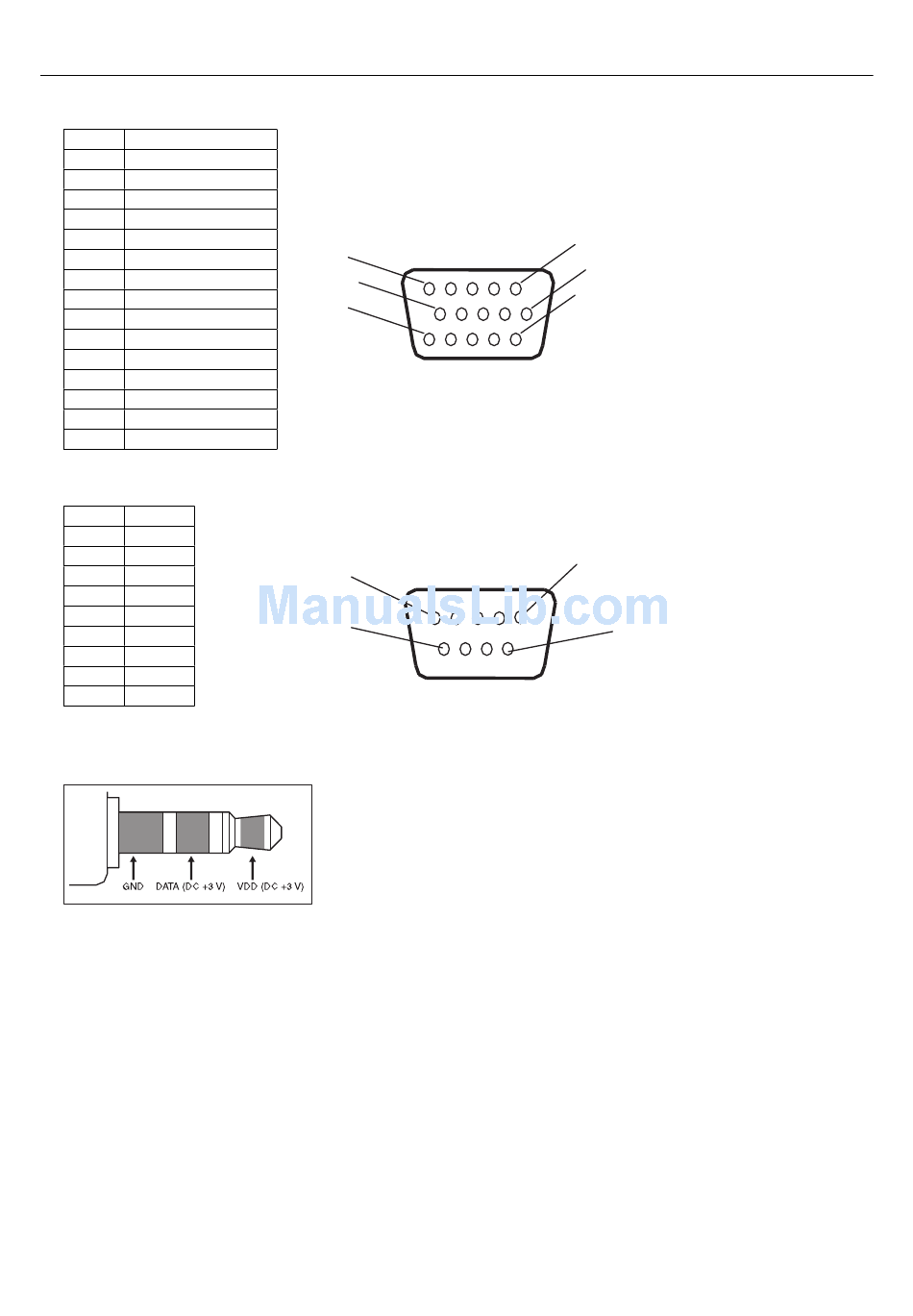

Pin Assignment

1) Analog multi input (MiniDsub15p): VGA, Y/Pb/Pr
Pin No
Name
1
Red, Y/Pb/Pr_Pr
2
Green, Y/Pb/Pr_Y
3
Blue, Y/Pb/Pr_Pb
4
GND
5
DDC-GND
6
Red-GND
7
Green-GND
8
Blue-GND
9
+5V (DDC)
10
GND
11
NC
12
DDC-SDA
13
H-SYNC
14
V-SYNC
15
DDC-SCL
2) RS-232C input/output
Pin No
Name
1
NC
2
RXD
3
TXD
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
3) REMOTE IN
Mini D-SUB 15P (Monitor side)
5
10
15
D-SUB 9P (Monitor side)
1
6
English-50
1
6
11
5
9
