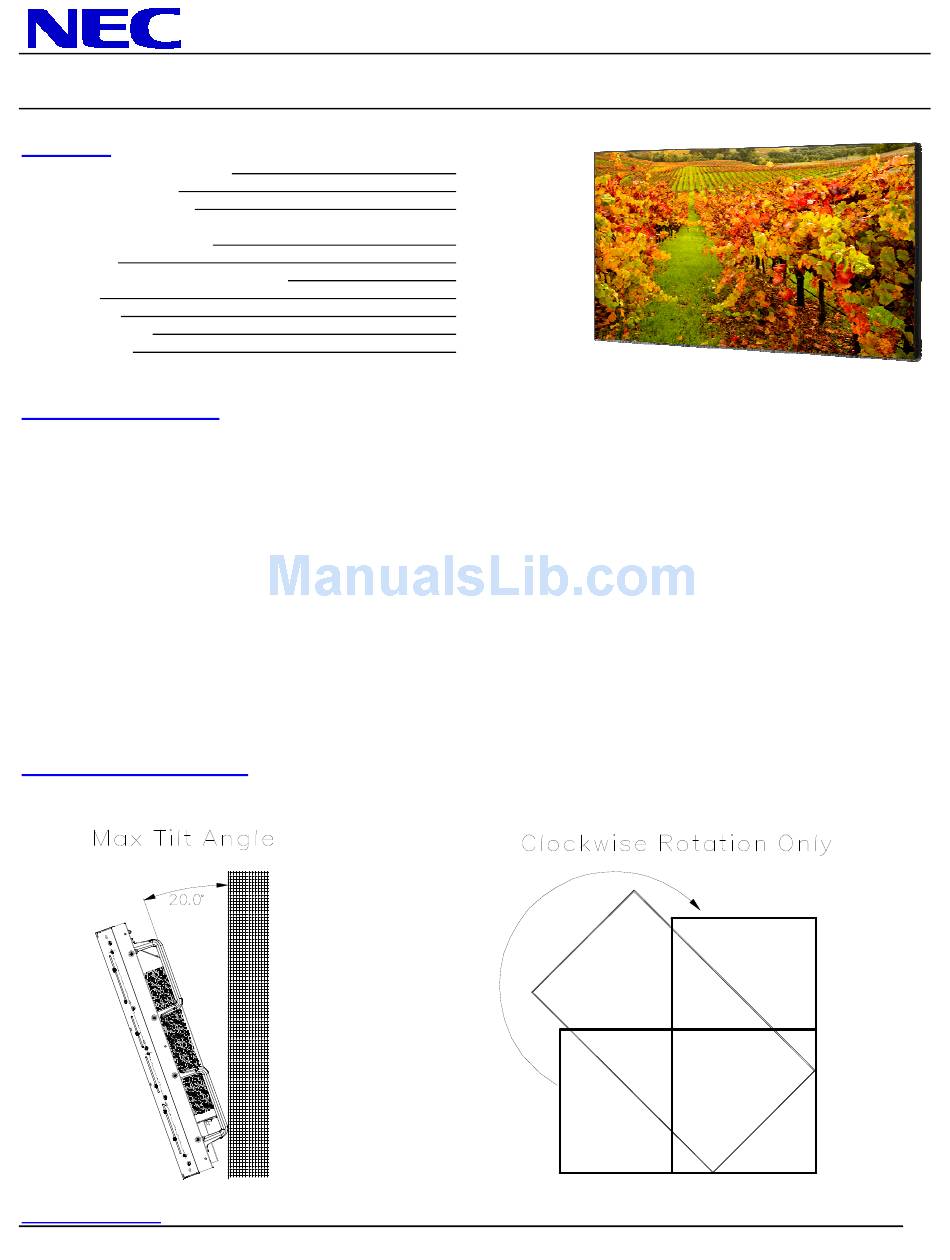

X554UN Installation Guide
55" LED LCD Display
Contents

Product Description

Type:
Resolution:
Quad Resolution:
Aspect Ratio:
FCC:
Power Consumption:
Quad Power Consumption:
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
www.necdisplay.com
LCD Display
1920 x 1080
3840 x 2160
16:9
Class A
195W (max)
780W (max)
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3
Page 4
Page 5
Page 5
Page 6
Page 6
Page 7
Screen Surface:
Dimensions:
Quad Dimensions:
Weight:
Quad Weight:
BTU's:
Quad BTU's:
X554UN
Rev 1.2
Anti-Reflective
47.85 x 27.01 x 3.92 in.
95.70 x 54.02 x 3.92 in.
64.4 lbs
257.6 lbs
665.37 BTU/hour
2661.47 BTU/hour
Page 1 of 7

Advertisement

loading

  Also See for NEC X554UN

  Related Manuals for NEC X554UN

  Summary of Contents for NEC X554UN

  • Page 1: Table Of Contents

    NEC Display Solutions of America, Inc. X554UN Installation Guide 55” LED LCD Display Rev 1.2 Contents Product Description and Notes Page 1 Tilt Angle and Rotation Page 1 Ventilation Requirements Page 2 Display Dimensions Front and all Sides Page 3...
  • Page 2: Ventilation Requirements

    The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. X554UN Installation Guide 55” LED LCD Display Rev 1.2 Display dimensions Note This product is not symmetrical. www.necdisplay.com X554UN Page 3 of 7...
  • Page 4: Back

    NEC Display Solutions of America, Inc. X554UN Installation Guide 55” LED LCD Display Rev 1.2 Display dimensions (cont.) www.necdisplay.com X554UN Page 4 of 7...
  • Page 5: Tmx4P And Tmx9P Outer Dimensions

    X554UN Installation Guide 55” LED LCD Display Rev 1.2 X554UN-TMX4P and X554UN-TMX9P Outer Dimensions with Peerless DS-VW765-LAND Note: KT-55UN-OF Overframe Bezel Kit not pictured Input Panel (Bottom) o Red circles in the above interface connections signify the IN of that particular connector. Blue circles in the above interface representations signify the OUT for that particular connector.
  • Page 6: Control Codes

    NEC Display Solutions of America, Inc. X554UN Installation Guide 55” LED LCD Display Rev 1.2 Control Codes NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable. Cable Connection Communication Protocol: Interface: RS-232C Interface: TCP/IP (Ethernet)
  • Page 7: Browser Control

    Communicating network PC needs to be on the same subnet as display that is being communicated with NOTE: Menus on the left side of the above screenshot can be altered to control the display Menu above is consistent with the X554UN even though it states P553 on top www.necdisplay.com X554UN...
